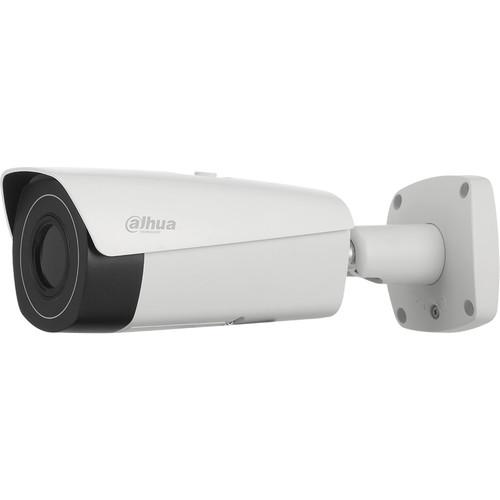

User Manual for Dahua Technology Ultra Series DH-TPC-BF5600N-B13 Thermal Network Bullet Camera with 13mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series DH-TPC-BF5600N-B13 Thermal
- Product category: Security Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Security Cameras
|
User manual for the Dahua Technology Ultra Series DH-TPC-BF5600N-B13 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Ultra Series DH-TPC-BF5600N-B13 Thermal Network Bullet Camera with 13mm Lens from Dahua Technology is equipped with an uncooled VOx microbolometer to capture 640 x 512 resolution video. The 13mm fixed lens delivers a 48.4° horizontal field of view. This camera detects rapid rises in temperature over short time periods and issues an alarm for potential fire threats at long distances. Two-way audio is possible thanks to audio input and output ports. An onboard memory card slot supports microSD cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This thermal bullet camera is ONVIF compliant for Profiles S & G, ensuring compatibility with a wide range of surveillance devices. Designed for outdoor use, it is housed in an IP67-rated metal enclosure. - Suitable for forest fire prevention
- Uncooled VOx thermal sensor technology
- <40mK thermal sensitivity
- Focus-free 13mm fixed lens
- Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects
- Advanced intelligent functions include fire detection and alarm
- H.264 and MJPEG video compression
- Unicast and multicast streaming methods
- Image settings include brightness, sharpness, ROI, AGC, FFC, and 3D-DNR
- ROI (region of interest) for four zones
- Motion detection for four zones (rectangles)
- Privacy masking for four areas (rectangles)
- Two alarm inputs and one alarm output
- Compatible with Internet Explorer 11 or below, Chrome, Firefox, iOS, and Android
- Local PC for instant recording and NAS edge storage
- IP67-rated metal enclosure that is suitable for outdoor use
- ±15% input voltage tolerance and 6kV lightning protection
- Effective Distance Man (5.9 x 1.64' )
-
- 1476' (detect)
- 361' (recognize)
- 197' (identify)
- Effective Distance Vehicle (7.55 x 7.55')
-
- 4265' (detect)
- 1148' (recognize)
- 591' (identify)
UPC: 819290026016 In the Box Dahua Technology Ultra Series DH-TPC-BF5600N-B13 Thermal Network Bullet Camera with 13mm Lens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series DH-TPC-BF5600N-B13 Thermal Network Bullet Camera with 13mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-TPC-BF5600N-B13 Specs | | | Camera Type | Thermal | | Image Sensor | Uncooled VOx Microbolometer | | Effective Pixels (H x V) | 640 x 512 | | Pixel Size | 17 µm | | Thermal Sensitivity (NETD) | 40mK at f/1.0 | | Spectral Range | 7 to 14 µm | | Image Settings | Brightness, Sharpness, ROI, AGC, FFC, 3D-DNR | | Color Palette | 14 Color Palettes Include Whitehot, Blackhot, Ironrow, Icefire, Fusion, Rainbow, Globow, Iconbow1, and Iconbow2 | | | | Type | Fixed Thermal Lens | | Focus Control | Athermalized, Focus-Free | | Focal Length | 13mm | | Field of View (H x V) | 48.4 x 38.6° | | | | Compression | H.264, MJPEG | | Frame Rate | Main Stream: 1280 x 1024 (Default), 1280 x 720 at up to 30 fps
Sub Stream: 640 x 512 (Default), 320 x 256 at up to 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 640 to 8192 kb/s | | Motion Detection | Off/On (4 Rectangular Zones) | | Region of Interest | Off/On (4 Zones) | | Digital Zoom | 24x | | Flip | 180° | | Mirror | Off/On | | Privacy Masking | Off/On (4 Rectangular Areas) | | | | Compression | G.711a, G.711Mu, AAC | | | | Intelligent Video Analytics | Intelligent Video System (IVS): Tripwire, Intrusion, Abandoned/Missing Object | | Intelligent Function | Fire Detection & Alarm | | | | Ethernet | RJ45 10/100Base-T | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | | Interoperability | ONVIF Profiles S & G, PSIA, CGI | | Streaming Method | Unicast and Multicast | | Maximum User Access | 10/20 Users | | Edge Storage | microSD cards up to 128 GB (Available Separately)
Memory Status Display (Normal, Error, Active, Formatting, Lock)
NAS, Local PC for Instant Recording | | Web Viewer | Internet Explorer 11 or Below, Chrome, Firefox | | Management Software | SmartPSS, DSS | | Mobile | iOS, Android | | | | Video | 1.0 V p-p / 75 Ohms | | Audio | 1 x RCA Input
1 x RCA Output | | Serial | 1 x RS-485 | | Alarm I/O | 2/1 | | | | Power Supply | 24 VAC (1 A), 12 VDC (1 A), PoE | | Maximum Power Consumption | 11 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | Less than 95% RH | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | Less than 95% RH | | IP Rating | IP67 | | Lightning Protection | 6 kV | | Certifications | FCC CFR 47 Part 15 Subpart B | | Casing Material | Metal | | Dimensions | 11.46 x 4.09 x 3.83" / 291.0 x 103.8 x 97.2 mm | | Weight | 3.02 lb / 1.37 kg |
