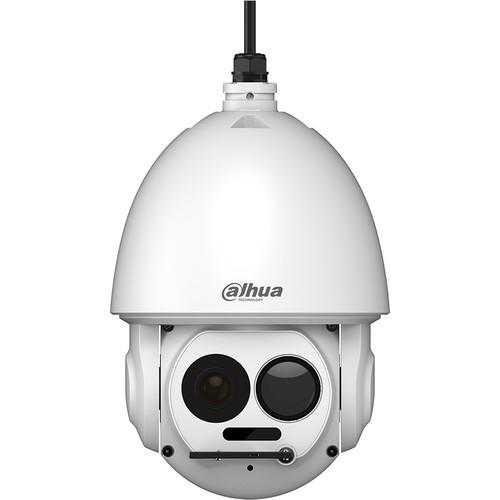

User Manual for Dahua Technology Ultra Series DH-TPC-SD8420N-B25Z30 Hybrid Thermal & Optical PTZ Network Camera with 25mm Thermal Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series DH-TPC-SD8420N-B25Z30 Hybrid
- Product category: Security Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Security Cameras
|
User manual for the Dahua Technology Ultra Series DH-TPC-SD8420N-B25Z30 Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Take video surveillance to the next level with the Ultra Series DH-TPC-SD8420N-B25Z30 Hybrid Thermal & Optical PTZ Network Camera from Dahua Technology. Featuring an uncooled vanadium oxide thermal sensor and a 2MP CMOS sensor, this camera captures thermal video in 400 x 300 resolution and optical video in up to 1920 x 1080 at 30 fps. The thermal module is equipped with a 25mm lens with a field of view of 15.5 x 11.6°. The optical module uses a 6-180mm lens with a 30x zoom ratio and a 59 to 2.4° field of view. Both modules can be remotely panned 360° and tilted 110°.
The camera has a microSD card slot for edge storage, and audio input and output ports for two-way talk. Designed for outdoor use, it is housed in an IP66-rated weather-resistant enclosure. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. Thermal Camera - 400 x 300 VOx uncooled thermal sensor
- Athermalized lens—maintains focus position passively over a wide temperature range
- High thermal sensitivity of <40mK
- Various onboard color palettes
Optical Camera - 1/1.9" 2MP progressive scan CMOS sensor
- Starlight+ technology for color video down to 0.001 lux
- IR LEDs for low-light performance as far as 492'
System - Intelligent video system with fire detection and alarm functionality, as well as tamper detection, sudden focus change detection, tripwire violation detection, intrusion detection, abandoned object detection, and missing object detection
- Suitable for forest fire prevention applications
- ±15% input voltage tolerance
- Wide operating temperature range of -40 to 158°F
- IP66 rated for outdoor use
UPC: 819290025668 In the Box Dahua Technology Ultra Series DH-TPC-SD8420N-B25Z30 Hybrid Thermal & Optical PTZ Network Camera with 25mm Thermal Lens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series DH-TPC-SD8420N-B25Z30 Hybrid Thermal & Optical PTZ Network Camera with 25mm Thermal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-TPC-SD8420N-B25Z30 Specs | | | Image Sensor | Uncooled VOx Microbolometer | | Effective Pixels | 400 x 300 | | Pixel Size | 17 µm | | Thermal Sensitivity (NETD) | <40 mK at f/1.0 | | Spectral Range | 7 to 14 µm | | Image Setting | Brightness, Sharpness, ROI, AGC, FFC, 3D-DNR | | Color Palettes | 14, Including Whitehot, Blackhot, Ironrow, Icefire, Fusion, Rainbow, Globow, Iconbow1, Iconbow2 | | | | Lens Type | Fixed | | Focus Control | Athermalized, Focus-Free | | Focal Length | 25mm | | Angle of View (H x V) | 15.5 x 11.6° | | Range Performance | Human (5.9 x 1.6' / 1.8 x 0.5 m)
Detection: 3281' / 1000 m
Recognition: 820' / 250 m
Identification: 410' / 125 m
Vehicle (7.5 x 7.5' / 2.3 x 2.3 m)
Detection: 9843' / 3000 m
Recognition: 2362' / 720 m
Identification: 1181' / 360 m | | | | Sensor | 1/1.9" Progressive Scan CMOS | | Effective Pixels | 1944 x 1092 | | Electronic Shutter Speed | 1/30,000 to 1 Second | | Minimum Illumination | Color: 0.001 Lux at f/1.5
B&W: 0.0001 Lux at f./1.5
0 Lux with IR On | | S/N Ratio | >55 dB | | IR Range | 492.17' / 150 m | | IR Control | Auto, Manual | | IR LEDs | 4 | | | | Focal Length | 6-180mm | | Maximum Aperture | f/1.5 to 4.3 | | Horizontal Angle of View | 59 to 2.4° | | Optical Zoom | 30x | | Focus Control | Auto, Manual | | Close Focus Distance | 0.33 to 3.28" / 100 to 1000 mm | | | | Range | Pan: 0 to 360° Endless
Tilt: 110° (-10 to 90°) | | Manual Control Speed | Pan: 0.1 to 200°/s
Tilt: 0.1 to 120°/s | | Preset Speeds | Pan: 0.1 to 240°/s
Tilt: 0.1 to 200°/s | | Presets | 300 | | PTZ Mode | 5 Patterns, 8 Tours, Auto Pan, Auto Scan | | Speed Setup | Human-Oriented Focal Length, Speed Adaptation | | Power Up Action | Auto Restore to Previous PTZ and Lens Status After Power Failure | | Idle Motion | Activate Preset, Scan, Tour, or Pattern If There Is No Command in Specified Period | | Protocol | DH-SD, Pelco P/D (Auto Recognition) | | | | Compression | H.264, MJPEG | | Frame Rate | Main Stream
Thermal: 30 fps at 1280 x 1024 (Default) or 720p
Optical: 30 fps at 1080p (Default) or 720p
Sub Stream
Thermal: 30 fps at 640 x 512 (Default) or 320 x 256
Optical: 30 fps at CIF (Default) or D1 | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 640 to 8192 kb/s | | Day/Night | Auto (IR Cut Filter), Color, B&W | | BLC Modes | BLC, HLC, WDR | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, On (4 Rectangular Zones) | | Region of Interest | Off, On (4 Zones) | | Defog | On, Off | | Digital Zoom | 19x | | Flip | 180° | | Mirror | Off, On | | Privacy Masking | Off, On (4 Rectangular Areas) | | | | Ethernet | RJ45 (10/100BaseT) | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | | Interoperability | ONVIF Profiles S & G, PSIA, CGI | | Streaming Method | Unicast, Multicast | | Maximum User Access | Unicast: 10 Users
Multicast: 20 Users | | Edge Storage | Network Attached Storage (NAS)
Local PC for Instant Recording
microSD Card Slot Supports up to 256 GB (microSD Card Available Separately)
Memory Status Display: Normal, Error, Active, Formatting, Lock | | Web Viewer | Internet Explorer 11, Chrome, Firefox | | Management Software | SmartPSS, DSS | | Mobile Operating Systems | Android, iOS | | | | Compression | G.711a, G.711Mu, AAC | | | | Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B | | | | Video | 1 V p-p, 75 Ohms (for Camera Installation) | | Audio | Input: 1 x RCA
Output: 1 x RCA | | Serial | 1 x RS-485 | | Alarm | Input: 7 Channels
Output: 2 Channels | | | | Power Supply | 24 VAC, 3 A (±15%) | | Maximum Power Consumption | 17 W
38 W with Heater and IR On | | | | Operating/Storage Temperature | -40 to 158°F / -40 to 70° C | | Operating/Storage Humidity | 95% RH Maximum | | Ingress Protection | IP66 | | | | Casing | Metal | | Dimensions (Ø x H) | 9.44 x 15.04" / 239.7 x 382.0 mm | | Weight | 14.99 lb / 6.8 kg |
