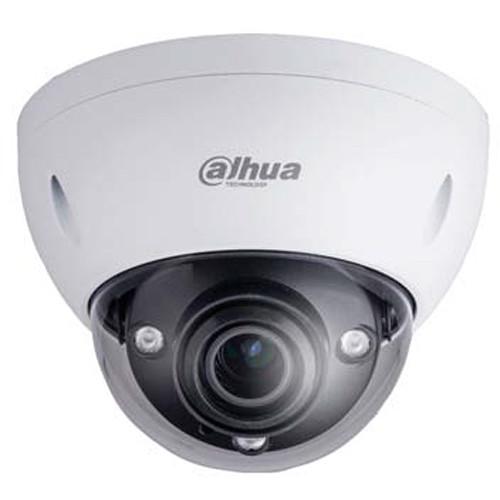

User Manual for Dahua Technology Ultra Series NK8BL7Z 12MP Outdoor Network Dome Camera with Night Vision & Heater

• Product category: Wired IP Cameras Dahua Technology
• Brand: Dahua Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dahua Technology Wired IP Cameras

Product description

• Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, along with support for face detection, people counting & heat mapping

• Built-in heater

• Smart IR

• IR cut filter for day and night functionality

• Auto and manual IR on/off control

• PoE+ support

• Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression

• Triple streaming

• Unicast and multicast streaming methods

• CBR and VBR

• Backlight compensation, highlight compensation, digital wide dynamic range, and Smart Scene Adaptive (SSA)

• >50 dB S/N ratio

• Motorized auto iris and focus control

• 3.28' close focus distance

• 4x optical and 16x digital zoom

• ePTZ functionality

• Camera pivots from 0 to 355° horizontally & from 0 to 65° vertically

• 0 to 355° rotation range

• White balance modes include auto, natural, street lamp, outdoor, and manual

• Auto and manual gain control

• 3D-DNR

• EIS (electronic image stabilization)

• Defog

• Motion detection for 4 zones (rectangular)

• ROI (region of interest) for 4 zones

• Privacy masking for 4 areas (rectangular)

• Flip perspective for 0, 90, 180, and 270°

• Mirroring

• Alarm I/O

• Up to 20 users

• Records to local PC, microSD card, and NAS edge storage

• Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android

• Smart PSS and DSS management software

DORI Distance
• • 377' / 115m (detect (wide) / 8 ppf)
  • 909' / 227m (detect (tele) / 8 ppf)
  • 151' / 46m (observe (wide) / 19 ppf)
  • 364' / 111m (observe (tele) / 19 ppf)
  • 75' / 23m (recognize (wide) / 38 ppf)
  • 180' / 55m (recognize (tele) / 38 ppf)
  • 36' / 11m (identify (wide) / 76 ppf)
  • 92' / 28m (identify (tele) / 76 ppf)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dahua Technology Ultra Series Specs

Memory	1024 MB RAM / 128 MB Flash
Recording Media	microSD (Up to 128 GB)
Pan/Tilt	None
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x Power
IR Range	164.04' / 50 m
Video Management Software	SmartPSS, DSS
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	AC, DC, PoE 802.3at (30 W)
Power Consumption	18 W (With Heater)
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-40 to 140°F / -40 to 60°C
Storage Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	0 to 95%
IP Rating	IP67
IK Rating	IK10
