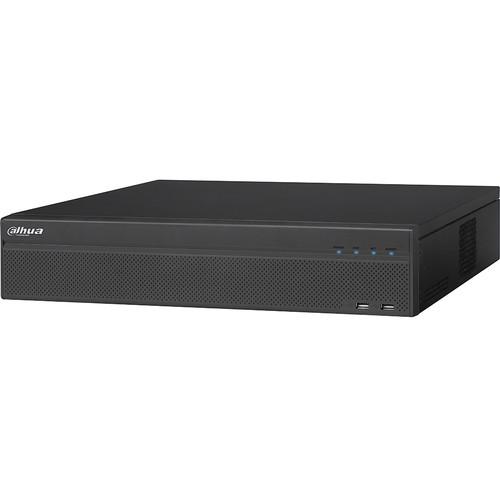

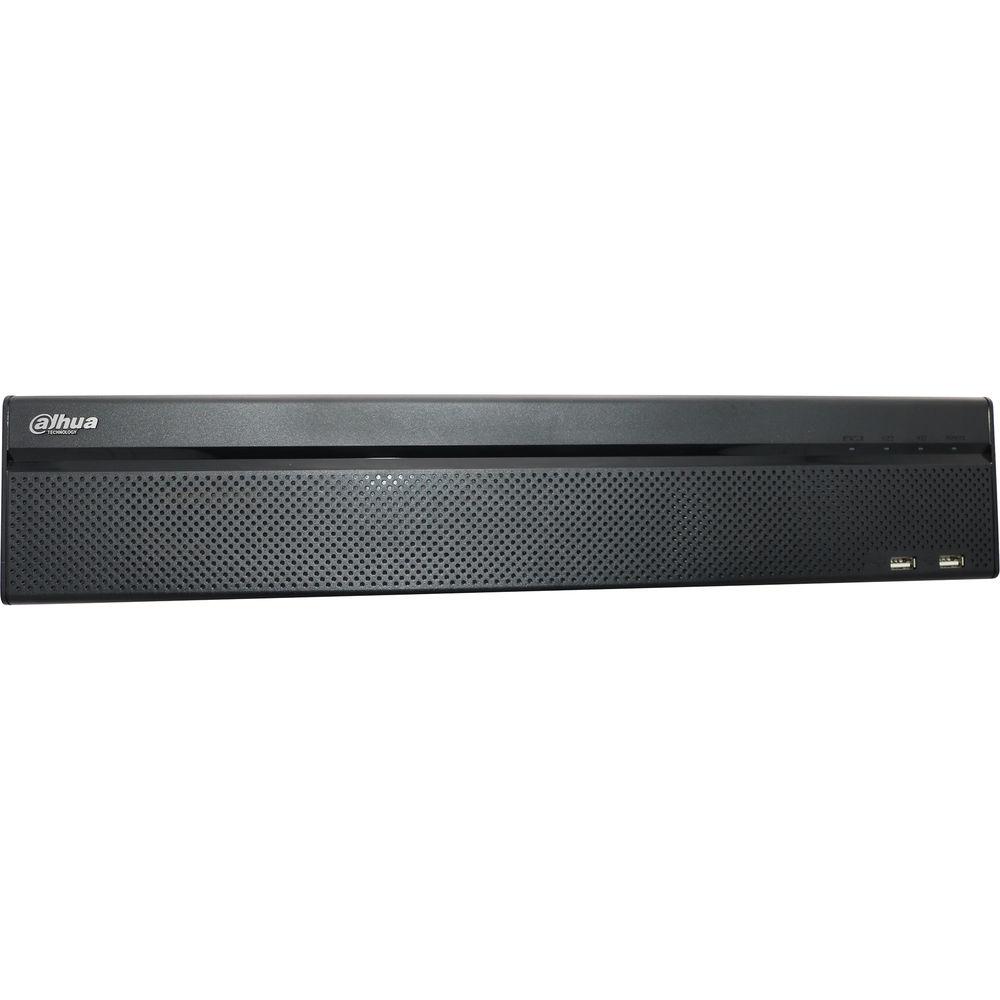

Product description The X58A3S 16-Channel 4K UHD HD-CVI Pentabrid DVR from Dahua Technology features 16 BNC inputs that support HD-CVI, AHD, HD-TVI, and composite analog video formats. It also supports an additional 48 IP cameras via a PoE switch, sold separately. Two of the analog channels record up to 3840 x 2160 resolution video at 15 fps while the rest record up to 4MP at 15 fps or 1920 x 1080 or lower at 30 fps. All the IP channels record at up to 8MP resolution. Dahua and numerous third-party cameras are supported. 48TB HDD storage is preinstalled. Storage is expandable to 64TB in the event that more space is required.

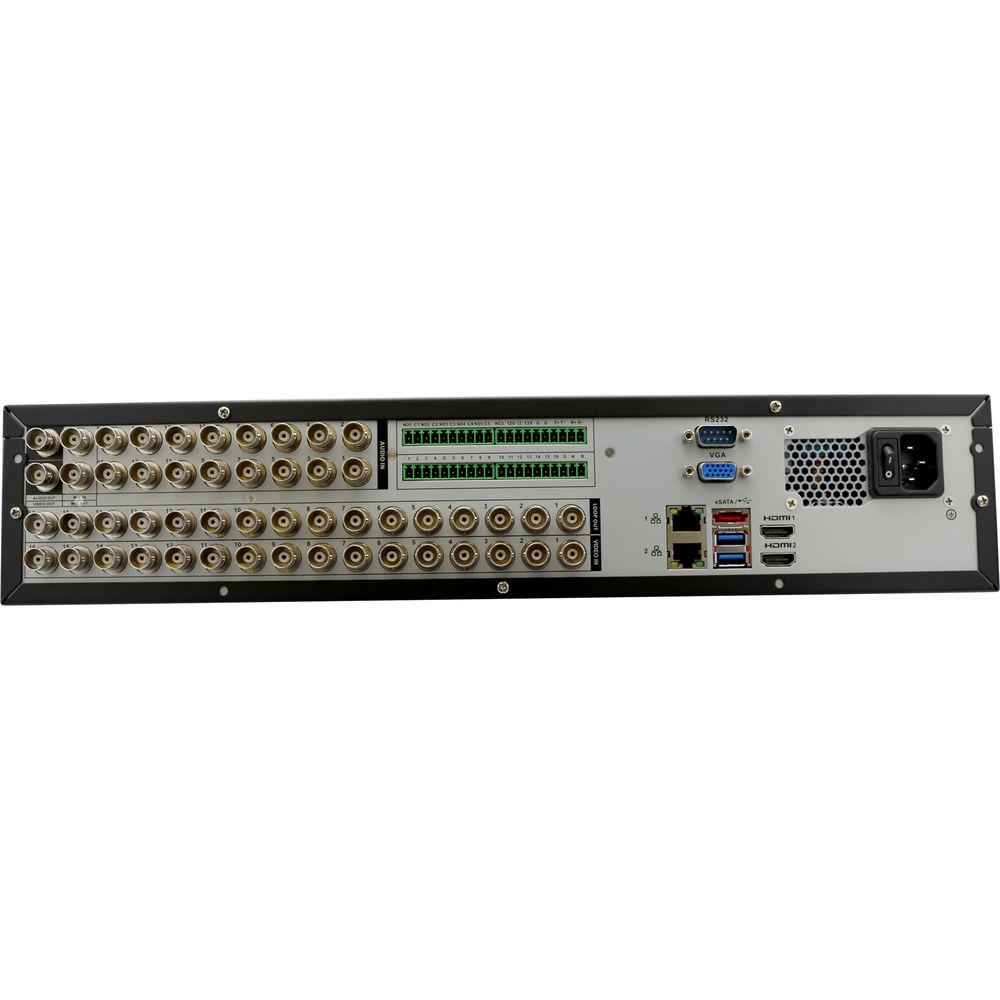

The DVR also has 16 BNC loop-outs, VGA and dual HDMI outputs, audio input/output, and replay connections. It is compatible with iOS and Android for access via your mobile device. - Key Features
-
- 16 HD-CVI/AHD/HD-TVI/CVBS BNC auto-detect camera inputs
- 16 HD-CVI/CVBS BNC loop-outs
- Support for extended-length coax cables
- Record up to 3840 x 2160 resolution at 15 fps on channels 1 and 9, 4MP and lower on all other channels
- Support for an additional 48 IP cameras via an optional PoE switch
- Up to 8MP IP camera recording
- 48TB HDD preinstalled
- VGA and dual HDMI video outputs
- Relay connections
- Compatible with iOS and Android mobile operating systems
- ONVIF 2.4.1 compliant
- Intelligent Analytics (IVS)
-
- Standard
- Motion
- Tripwire
- Intrusion
- Scene change
- Abandoned/missing object
- Facial detection
- People counting

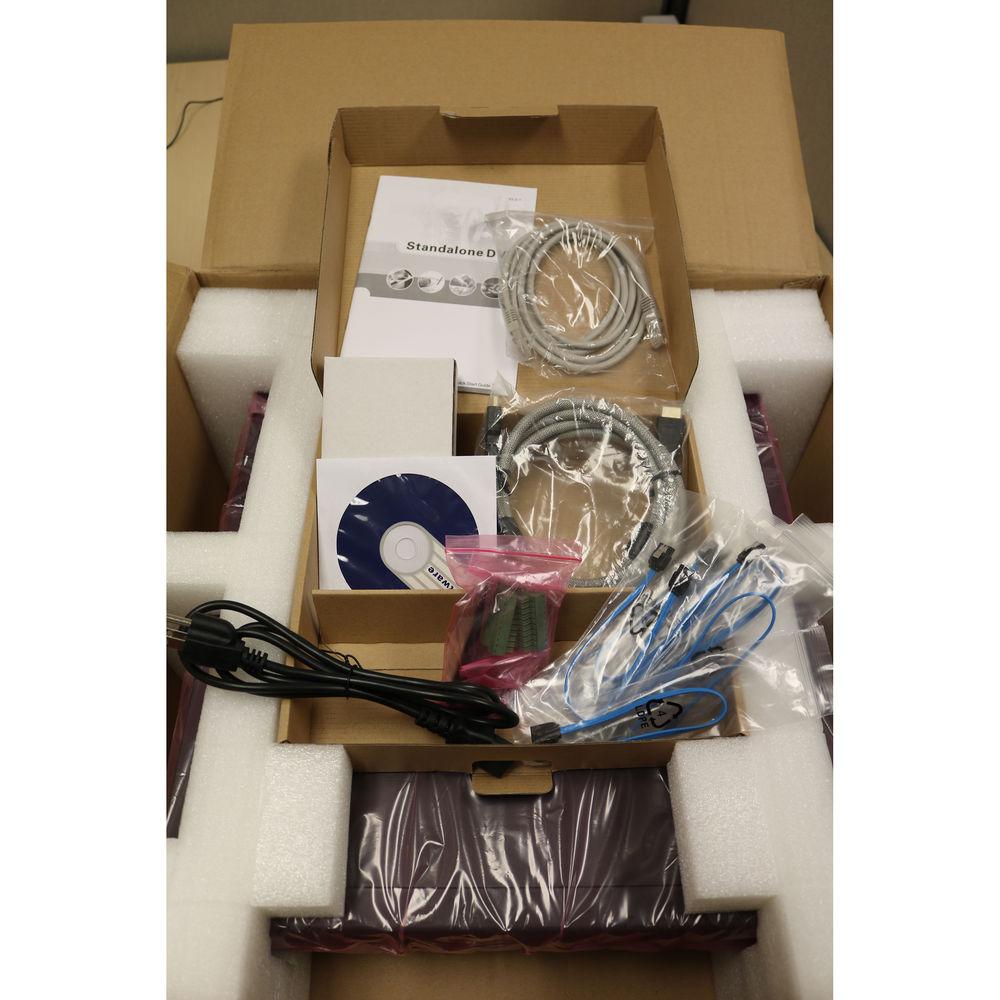

UPC: 819290025354 In the Box Dahua Technology Ultra Series X58A3S 16-Channel 4K UHD HD-CVI Pentabrid DVR with 48TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series X58A3S 16-Channel 4K UHD HD-CVI Pentabrid DVR with 48TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X58A3S Specs | Main Processor | Embedded | | Operating System | Linux | | Camera Inputs | 16 x BNC (supports HD-CVI/AHD/HD-TVI/CVBS, automatic detection)
An additional 48 IP cameras are supported via an optional PoE switch | | Camera Signal Outputs | 16 x BNC (supports loop-out of HD-CVI/CVBS analog signals) | | Audio | 16 x BNC inputs
1 x BNC output
1 x BNC mic input
1 x BNC speaker output | | Recording Resolution | Analog & IP:
8 MP (4K), 4 MP, 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF
Main Stream:
Analog Channels 1 and 9:
3840 x 2160 at 15 fps or 4 MP at 15 fps
Other Analog Channels:
4 MP at 15 fps
1920 x 1080, 1280 x 720, 960H, D1, HD1, BCIF, CIF, QCIF at 30 fps
The recording resolution from optional IP cameras is up to 8 MP per channel | | Compression | Analog: Smart H.264+, H.264
IP: Smart H.265+, H.265, Smart H.264+, H.264 | | Maximum Incoming Bandwidth | 256 Mb/s | | Bit Rate | 1 to 12,288 kb/s per channel | | Record Mode | Manual, schedule (regular, continuous), motion detection (video detection, motion detection, tampering, video loss), alarm, stop | | Recording Intervals | 1-60 minutes (default 60 minutes)
Pre-Record: 1-30 seconds
Post-Record: 10-300 seconds | | Interface | 2 x HDMI (HDMI 1 output up to 4K / HDMI 2 spot output TV interface)
1 x VGA | | Output Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Display Split | 1/4/8/9/16/25/36 | | Privacy Masking | 4 x rectangular zones (each camera) | | Trigger Events | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | 396 motion detection zones (22 x 18), video loss, tampering, and diagnosis | | Alarm Input | 16 channels | | Relay Output | 6 channels | | Playback | 1/4/9/16 | | Search Modes | Time/date, alarm, motion detection, exact search (accurate to one second) | | Backup Modes | USB device, network | | HDD Support | 8 x SATA ports, up to 8 TB capacity for each disk
1 x eSATA | | Installed HDD | 48 TB | | USB | 2 x USB 3.0
2 x USB 2.0 | | Serial Port | 1 x RS-232 for PC communication/keyboard control
1 x RS-485/422 for PTZ control | | Third-Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and other manufacturers | | Network Interface | 2 x RJ45 ports (1000 Mb/s) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, P2P, IP search (support for Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Compatible Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Power Consumption | <40 W, without HDD | | Operating Conditions | 14 to 131°F / -10 to 55°C, 86 to 106 kpa | | Storage Conditions | -4 to 158°F / -20 to 70°C | | Humidity | 0 to 90% RH | | Certifications | Safety:
UL 60950-1
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
CAN/CSA C22.2 No. 60950-1-07
Electromagnetic Compatibility (EMC):
FCC part 15 subpart B: 2015
Immunity:
EN 55024:2010 + A1:2015 | | Rack Mount | 2 RU | | Dimensions | 17.3 x 17.9 x 3.7" / 44 x 46 x 9.5 cm | | Weight | 18.2 lb / 8.2 kg, without HDD |
