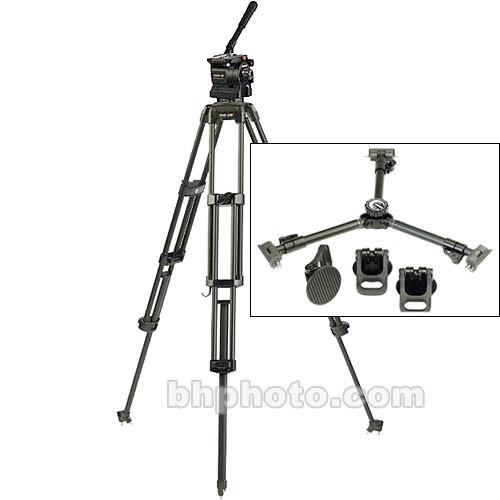

User Manual for Daiwa Slik Daiwa-11 Aluminum Tripod System - consists of: Daiwa-11 Fluid Head, 309 2-Stage Tripod, Mid-Level Spreader and Softcase - Supports 29 lbs Click to enlarge the picture
Contents of the user manual for the Daiwa Slik Daiwa-11 Aluminum Tripod System
- Product category: Tripod Systems Daiwa / Slik
- Brand: Daiwa / Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Daiwa / Slik Tripod Systems
|
User manual for the Daiwa Slik Daiwa-11 Aluminum Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Daiwa / Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Daiwa / Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Daiwa / Slik product will considerably shorten its lifespan!
|
Product description The Daiwa-11 tripod system, comprised of the Daiwa-11 fluid head and the 207 tripod, provides superior structural integrity and unsurpassed reliability, for ENG/EFP dockable camera's with long lenses and batteries. The Daiwa-11 fluid head, features an infinitely adjustable counterbalance system, procuring perfect balance for camera's ranging between 13 to 29 lbs. Variable viscosity drag pan and tilt system, providing infinite and repeatable adjustments and can be adjusted down to "zero" setting. The 309 aluminum tripod, utilizes a duel-stage leg design to give the capability of getting down low to the ground. The 309 comes with a on-ground spreader and composite molded fittings, that would virtually not allow radial motion or instability. Dawia-11 Fluid Head - Construction
- Utilizes die-cast alloys, composites, titanium and bronze materials, to bring about lightweight design and construction, for outstanding quality, reliability and performance.
- Perfect Balance
- Features a rotating knob that allows adjusting the counterbalance to compensate the weight of the camera. Providing excellent performances at any tilt angle from +90° to -60°.
- Quick Release Plate
- The sliding quick release plate with safety lock provides +/-2.5 inches of adjustment, for perfect horizontal counterbalance.
- Pan and Tilt Drag
- The Daiwa-11 offers a variable and repeatable viscosity fluid drag system, ensuring perfect pictures while pan and tilt movements, without jerks and vibrations. Once set on the right setting you can always go back, with the line markings on the adjustment knobs.
- Built-in spirit level, for easy horizontal leveling
309 Aluminum Tripod - Durable all aluminum rail construction
- Dual-stage design for fast set-up and low-angle shots
- 100mm bowl for mounting heads
- Maximum height of 62.0-inch (not including head)
In the Box Daiwa / Slik Daiwa-11 Aluminum Tripod System - consists of: Daiwa-11 Fluid Head, 309 2-Stage Tripod, Mid-Level Spreader and Softcase - Supports 29 lbs Daiwa-11 Fluid Head (100mm Ball Base) 309 Aluminum 2-Stage Tripod Legs (100mm Bowl) ML-9 Mid-Level Tripod Spreader Foot Pads (set of 3) 890-9 Soft Carrying Case PKS10 quick release plate PH10L pan handle bar Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Daiwa Slik Daiwa-11 Aluminum Tripod System - consists of: Daiwa-11 Fluid Head, 309 2-Stage Tripod, Mid-Level Spreader and Softcase - Supports 29 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDaiwa / Slik Daiwa-11 Specs | Load Capacity | 29 lbs (13.15 kg) | | Mount/Base | 100mm 4" Half Ball | | Balance Plate | Sliding Plate with 50mm Adjustment, 1/4"-20 and 3/8" Screws | | Pan & Tilt Range | 360°, +90/-60° | | Pan & Tilt Drag | Variable Adjustment | | Leveling Bubble/Illuminated | Yes / Non | | Material | Aluminum | | Leg Stages/Sections | 1/2 | | Minimum Height | 34.6" (87.88 cm) | | Maximum Height | 67.2" (170.69 cm) | | Folded Length | 42.2" (107.19 cm) | | Weight | 19.5 lbs (8.84 kg) | | | | Package Weight | 40.1 lb | | Box Dimensions (LxWxH) | 40.0 x 23.0 x 17.5" |
