Product description The Daiwa-70 F1 Tripod System is an all-in-one stabilization kit that provides a sturdy, flexible foundation for ENG and EFP applications. Including fluid head, tripod, expandable spreader and soft carrying case, it's the solid base on which any production should be built. The Daiwa-70 fluid head, with its load capacity of up to 33 lbs, is ideal for the latest portable digital camera configurations used in professional broadcast, educational and corporate productions. This head is perfectly counterbalanced through a tilt range of +90/-75 degrees, for cameras ranging between 18 to 33 lbs. The 209 Tripod's two sections make for quick and easy set-up and fold-down. Constructed of all-aluminum rail, these sturdy legs extend to 61" (155cm) and feature a leg locking design that won't permit slippage or over compression (leg damage). The leg pivots are self-adjusting and come with a 100mm claw ball base and eye hook for cable or accessories. Used on level surfaces, the FL9 Floor Spreader stabilizes the tripod's legs while keeping them at an equal or preset distance apart. The spreader's expandable arms allow the tripod legs to extend without detaching the spreader. Rubber footpads provide added stability. The 1080-9 Soft Carrying Case is a soft-sided bag with reinforced sides made from heavy duty Nylon. It is designed to fit the 209 tripod with fluid head. Daiwa-70 Fluid Head - Construction
- Utilizes space age die-cast alloys, composites, titanium and bronze materials, to bring about lightweight design and construction, for outstanding quality, reliability and performance.
- Perfect Balance
- Features a rotating knob that allows adjusting the counterbalance to compensate for the camera's weight. Provides excellent performance through a tilt range of +90/-75°.
- Quick Release Plate
- The sliding quick release plate with safety lock provides +/-2.5" of adjustment, for perfect horizontal counterbalance.
- Pan and Tilt Drag
- The Daiwa-70 offers a variable and repeatable viscosity fluid drag system, ensuring perfect pictures during pan and tilt movements, eliminating jerks and vibrations. Line markings on the adjustment knobs make actions repeatable to the millimeter.
209 Tripod Legs - Durable all-aluminum rail construction
- Single-stage, 2-section design for fast set-up and fold-down
- 100mm bowl for mounting heads
- Maximum height of 61" (155.3cm)

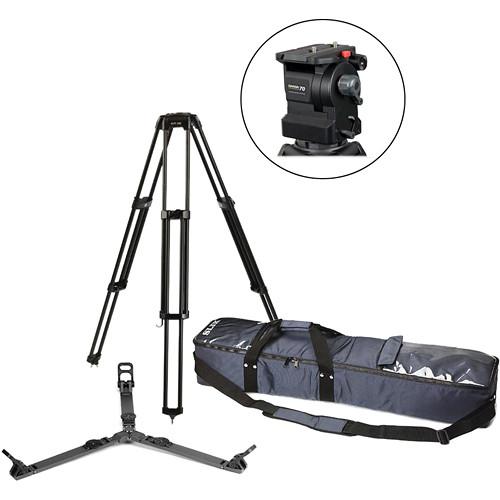

In the Box Daiwa / Slik Daiwa-70 F1 Tripod System Daiwa-70 Heavy-Duty Fluid Head 209 Aluminum 1-Stage Tripod Legs (100mm Bowl) FL-9 On-Ground Spreader 1080-9 Soft Carrying Case 1x Telescopic Pan Bar Camera Mounting Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Daiwa Slik Daiwa-70 F1 Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDaiwa / Slik DW-70F1 Specs | | | Load Capacity | 18-33 lbs (8-15kg) | | Diameter/Thread | 100mm (4") Half Ball | | Counter Balance System | Cam Balance | | Counter Balance Range | Infinitely Adjustable, 18-33 lbs | | Center of Gravity | 4.7" (100mm±40°) | | Quick Release/Wedge Plate | Yes | | Balance Plate | Sliding Plate with +/- 2.5" Adjustment, 1/4"-20 and 3/8" Screws | | Tilt Drag | Variable Adjustment | | Tilt Range | +90/-75° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | Variable Adjustment | | Pan Range | 360° | | Pan Lock | Yes | | Leveling Bubble/Illuminated | Yes / Yes | | Temperature Range | -4° to +140°F (-20° to +60°C) | | Height | 11.2" (28.5cm) | | Weight | 9.25 lbs (4.2kg) | | | | Material | Aluminum | | Load Capacity | 55 lbs (25kg) | | Bowl Diameter/Thread | 100mm Bowl (4") Half Ball | | Minimum Height | 28.58" (72.6cm) | | Maximum Height | 61.14" (155.3cm) | | Leg Stages/Sections | 1/2 | | Leg Lock Type | Knob | | Center Brace/Mid-Level Spreader | No | | Spiked/Retractable Feet | Spiked | | Folded/Transport Length | 35.15" (89.3cm) | | Weight | 7.92 lbs (3.6kg) | | | | Construction | Polyethylene | | Type | On-ground | | Adjustable | Yes | | Minimum Length | R 16.5" (42cm) | | Maximum Length | R 24.3" (61.7cm) | | Weight | 1.6 lbs (0.73kg) | | | | Material | Heavy-duty Nylon Fabric | | Type of Closure | Zipper | | Interior Dimensions | 34 x 7 x 7" (86.4 x 17.8 x 17.8 cm) | | Carrying/Transport Options | Shoulder Strap
Carry Handles | | Weight | Not specified by manufacturer | | | | Package Weight | 38.2 lb | | Box Dimensions (LxWxH) | 39.0 x 23.0 x 17.0" |
