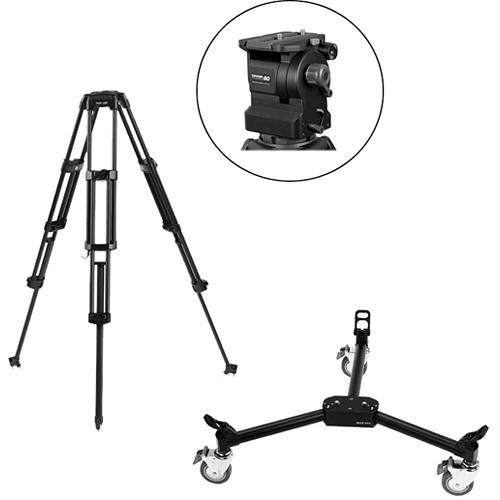

User Manual for Daiwa Slik Daiwa-80 D2 Tripod System Click to enlarge the picture
Contents of the user manual for the Daiwa Slik Daiwa-80 D2 Tripod System
- Product category: Tripod Systems Daiwa / Slik
- Brand: Daiwa / Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Daiwa / Slik Tripod Systems
|
User manual for the Daiwa Slik Daiwa-80 D2 Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Daiwa / Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Daiwa / Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Daiwa / Slik product will considerably shorten its lifespan!
|
Product description The Daiwa-80 D2 Tripod System is an all-in-one stabilization kit that provides a sturdy, flexible foundation for ENG and EFP applications. Including fluid head, tripod and dolly, it's the solid base on which any production should be built. The Daiwa-80 fluid head, with its load capacity of up to 48.5 lbs, is ideal for large digital camera configurations used in professional broadcast, educational and corporate productions. This head is perfectly counterbalanced through a tilt range of +60/-75 degrees, for cameras ranging between 26 to 48.5 lbs (12-22kg). The 309 Tripod, which shares many of the same features as the 209, uses its dual stage design to get low to the ground, preferred by some ENG and EFP crews. Constructed from hard-anodized aluminum alloy tubing--in conjunction with composite moldings and bronze bearing surfaces--it provides superior structural integrity and unsurpassed reliability. Features a leg locking design that will not permit slippage or over compression (leg damage) and can be field adjusted. The leg pivots are self-adjusting and comes with a 100mm claw ball base and eye hook for cable or accessories. The DY-9 Heavy-duty Dolly is designed for quiet, smooth and effortless tripod movement on studio floors. All wheel castors utilize non-marking, non-setting polyurethane tires mounted on stainless steel rims that rotate on needle bearings. Each wheel has positive locking in both radial and axial rotation with step-on/step-off design. Daiwa-80 Fluid Head - Construction
- Utilizes space age die-cast alloys, composites, titanium and bronze materials, to bring about lightweight design and construction, for outstanding quality, reliability and performance.
- Perfect Balance
- Features a rotating knob that allows adjusting the counterbalance to compensate for the camera's weight. Provides excellent performance through a tilt range of +60/-75°.
- Quick Release Plate
- The sliding quick release plate with safety lock provides +/-2.5" of adjustment, for perfect horizontal counterbalance.
- Pan and Tilt Drag
- The Daiwa-80 offers a variable and repeatable viscosity fluid drag system, ensuring perfect pictures during pan and tilt movements, eliminating jerks and vibrations. Line markings on the adjustment knobs make actions repeatable to the millimeter.
309 Tripod Legs - Durable all-aluminum rail construction
- Two-stage, 3-section design for greater capacity and low-angle shots
- 100mm bowl for mounting heads
- Maximum height of 62" (157.4cm)
In the Box Daiwa / Slik Daiwa-80 D2 Tripod System Daiwa-80 Heavy-Duty Fluid Head dfcavfvruqadbazuubbqxyafu 309 Aluminum 2-Stage Tripod Legs (100mm Bowl) DY-9 Heavy-Duty Dolly with Foot Pads 1x Telescopic Pan Bar Camera Mounting Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Daiwa Slik Daiwa-80 D2 Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDaiwa / Slik DW-80D2 Specs | | | Load Capacity | 26-48.5 lbs (12-22kg) | | Diameter/Thread | 100mm (4") Half Ball | | Counter Balance System | Cam Balance | | Counter Balance Range | Infinitely Adjustable, 26-48.5 lbs | | Center of Gravity | 4.7" (100mm±40°) | | Quick Release/Wedge Plate | Yes | | Balance Plate | Sliding Plate with +/- 2.5" Adjustment, 1/4"-20 and 3/8" Screws | | Tilt Drag | Variable Adjustment | | Tilt Range | +60/-75° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | Variable Adjustment | | Pan Range | 360° | | Pan Lock | Yes | | Leveling Bubble/Illuminated | Yes / Yes | | Temperature Range | -4° to +140°F (-20° to +60°C) | | Height | 11.2" (28.5cm) | | Weight | 9.25 lbs (4.2kg) | | | | Material | Aluminum | | Load Capacity | 55 lbs (25kg) | | Bowl Diameter/Thread | 100mm Bowl (4") Half Ball | | Minimum Height | 17.44" (44.3cm) | | Maximum Height | 62" (157.4cm) | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Knob | | Center Brace/Mid-Level Spreader | No | | Spiked/Retractable Feet | Spiked | | Folded/Transport Length | 27.4" (69.5cm) | | Weight | 8.14 lbs (3.7kg) | | | | Construction | Aluminum | | Doorway Width | 18.5" (47cm) | | Folded Length | 20.5" (52cm) | | Wheel Diameter | 3.9" (10cm) | | Wheel Lock | Yes | | Cable Guards | No | | Weight | 12.1 lbs (5.5kg) | | | | Package Weight | 46.65 lb | | Box Dimensions (LxWxH) | 39.0 x 22.5 x 16.5" |
