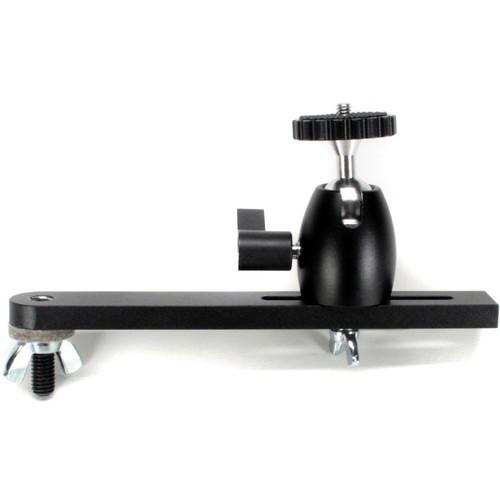

User Manual for Dana Dolly Monitor Mount Click to enlarge the picture
Contents of the user manual for the Dana Dolly Monitor Mount
- Product category: Cine Dolly & Track Accessories Dana Dolly
- Brand: Dana Dolly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dana Dolly Cine Dolly & Track Accessories
|
User manual for the Dana Dolly Monitor Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dana Dolly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dana Dolly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dana Dolly product will considerably shorten its lifespan!
|
Product description The Monitor Mount from Dana Dolly allows you to mount an optional monitor to the platform of your Dana Dolly instead of your camera or an optional stand. This allows for your monitor to travel with your camera and dolly without adding the weight of a monitor to your camera. The monitor mount supports up to five pounds, and features a ball joint head that provides articulated adjustment for your monitor.
The mount attaches to your Dana Dolly by inserting the mount's 3/8"-16 threaded stud through a mounting hole in the dolly, and is secured by the included wing nut and felt washer. You can slide the ball joint mount approximately three inches along the mount arm. - Made from type 3 anodized 6061 aluminum. Type 3 anodizing is a tough, military grade anodizing, providing corrosion and wear resistance.
- The ball joint mount has approximately three inches of sliding adjustment along the aluminum arm, and features a lockable articulating joint with a 1/4"-20 mounting stud with a thumb-wheel to secure your monitor so it doesn't rotate on the mounting screw.
- The mounting arm attaches to your Dana Dolly via a 3/8"-16 threaded stud that you insert into accessory holes in your Dana Dolly camera platform.
UPC: 851093003146 In the Box Dana Dolly Monitor Mount 1/4"-20 Ball Joint Mount 3/8"-16 Wing Nut Felt Washer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dana Dolly Monitor Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDana Dolly DDMM1 Specs | Material | 6061 Aluminum type 3 black anodized, aluminum & steel | | Mounting | Monitor: 1/4"-20
Ball Joint Mount: 1/4"-20
Dolly Mount: 3/8"-16
Mount Travel: approximately 3" / 7.6 cm | | Dimensions (L x W x H) | 7.5 x 0.8 x 5.0" / 19.1 x 2.0 x 12.7 cm | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
