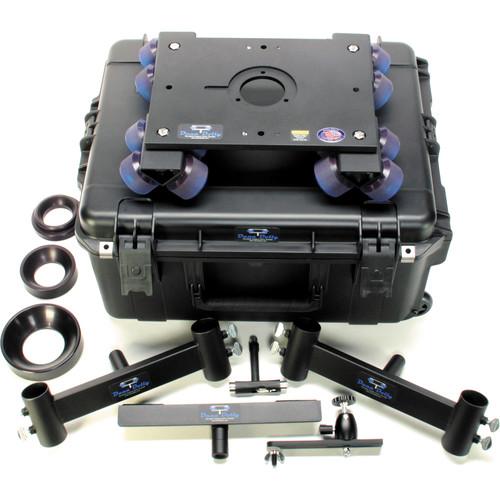

User Manual for Dana Dolly Portable Dolly System Rental Kit with Original Track Ends Click to enlarge the picture
Contents of the user manual for the Dana Dolly Portable Dolly System Rental
- Product category: Cine Dollies Dana Dolly
- Brand: Dana Dolly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dana Dolly Cine Dollies
|
User manual for the Dana Dolly Portable Dolly System Rental contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dana Dolly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dana Dolly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dana Dolly product will considerably shorten its lifespan!
|
Product description The Dana Dolly Portable Dolly System Rental Kit with original style track ends is a heavy duty camera dolly platform that rides on 16 custom modified soft polyurethane wheels that resist flat spotting and use ABEC-7 rated precision bearings providing you with extremely smooth dolly shots. This kit is complete with 75, 100, and 150mm bowl adapters, and comes in a custom flight case. The wheel trucks swivel, allowing the dolly to ride on available straight or curved track, which you must source separately. The manufacturer recommends using standard speed rail or Schedule 80 aluminum pipe of compatible size. The dolly includes two original style track ends, which accept inch and a quarter pipe (standard speed rail), and fit into available standard Junior stand receivers. A center support is included for long track runs or when using heavy cameras.
The dolly platform is machined from aluminum and features a standard Mitchell mount including a 2.75" center hole with a machined key way. The platform incorporates one 3/8" through hole, one 1/4"-20 threaded hole, and one 3/8"-16 threaded hole on each side of the dolly platform for a total of 6 accessory mounting holes. The rental kit includes a monitor mount with a ball head adapter. The Dana dolly is designed and manufactured in the USA. - Custom Machined Track Wheels
- The key to the Dana dolly's smooth ride are the 16 custom machined track wheels.
- The wheels are custom made soft, then turned down to be round within 1/1000 of an inch to eliminate the "bounce" that normal skateboard wheels suffer from.
- You can park the dolly with 100 pounds of camera and accessories on the track at 100° F for an hour without the wheels flat spotting.
- Another benefit from the machining the wheels is reduced squeak during use.
- The wheels are custom modified 16 at a time on a special machine, providing uniformity.
- Wheel Trucks
-
- The wheel trucks can swivel on the dolly, which allows it to ride on straight and round track.
- A felt washer separates the dolly platform from the wheel trucks, helping to reduce noise.
- The included T-Tool features a 1/2, 9/16, and 3/8" ends.
- It allows you to tighten the wheel trucks using the 9/16th end to suit your taste.
- Mitchell Mount
- The Mitchell mount features an elongated key way, allowing you to use non standard adapters.
- Track Supports
- Track supports fit into available standard Junior stand receivers.
UPC: 851093003047 In the Box Dana Dolly Portable Dolly System Rental Kit with Original Track Ends 2 x Original Track Ends Center Support 75mm Bowl Adapter 100mm Bowl Adapter 150mm Bowl Adapter 3" Washer T-Tool Monitor Mount Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dana Dolly Portable Dolly System Rental Kit with Original Track Ends in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDana Dolly DDORK1 Specs | Material of Construction | Dolly Platform
Machined 6061 Aluminum
Track Wheels
16 x Soft Polyurethane
Bearings
ABEC-7 rated precision bearings | | Load Capacity | 100 lb (45.4 kg) | | Head Fitting | Incorporated: Mitchell Mount
With included adapters: 75/100/150mm | | Accessory Mounting | 2 x 3/8" Through Hole
2 x 1/4"-20 Threaded
2 x 3/8"-16 Threaded | | Track Format | Outer Diameter: 1.66" (4.2 cm)
Truck Distance: Just under 12" (30.5 cm) on center | | Temperature | Max: 100°F (37.8°C) | | Dimensions (L x W) | Dolly: 14 x 10" (35.6 x 25.4 cm)
Flight Case: 24 x 20 x 14" (61 x 51 x 35.6 cm) | | Weight | 45 lb (20.4 kg) | | | | Package Weight | 48.6 lb | | Box Dimensions (LxWxH) | 25.25 x 20.25 x 13.0" |
