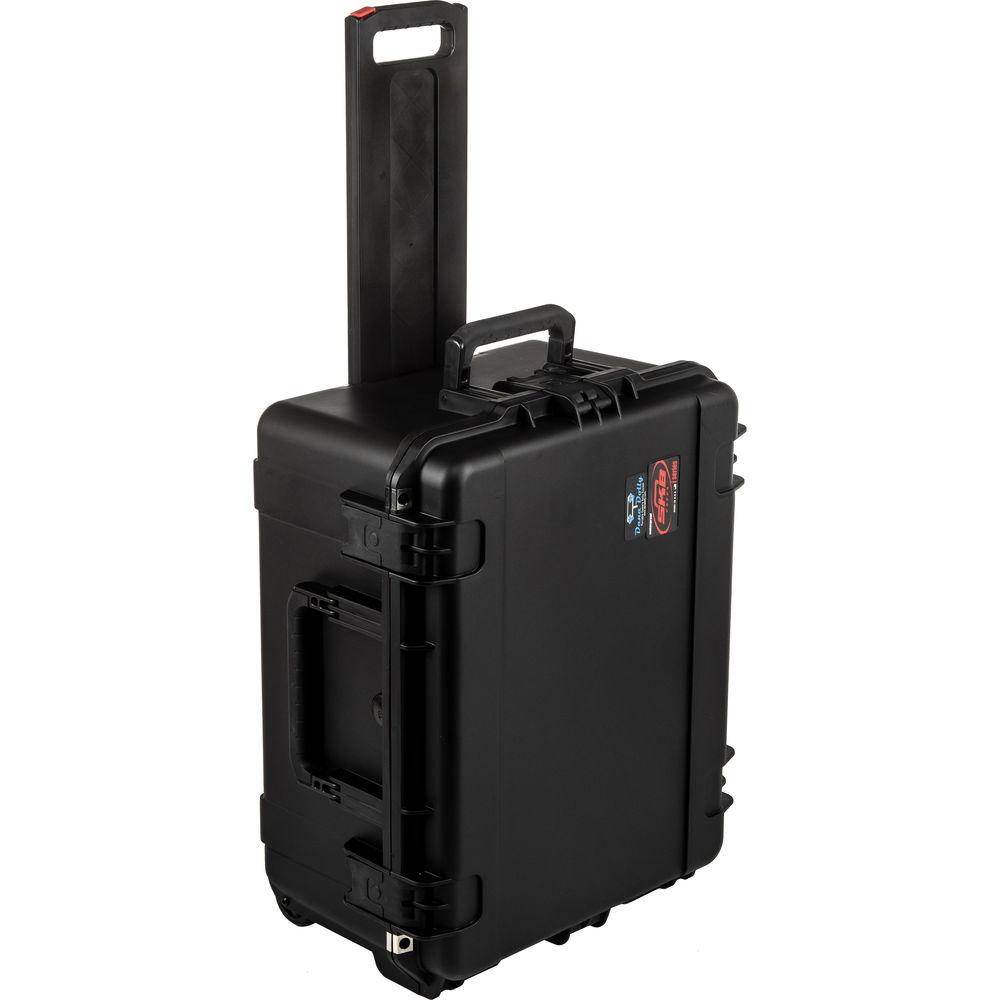

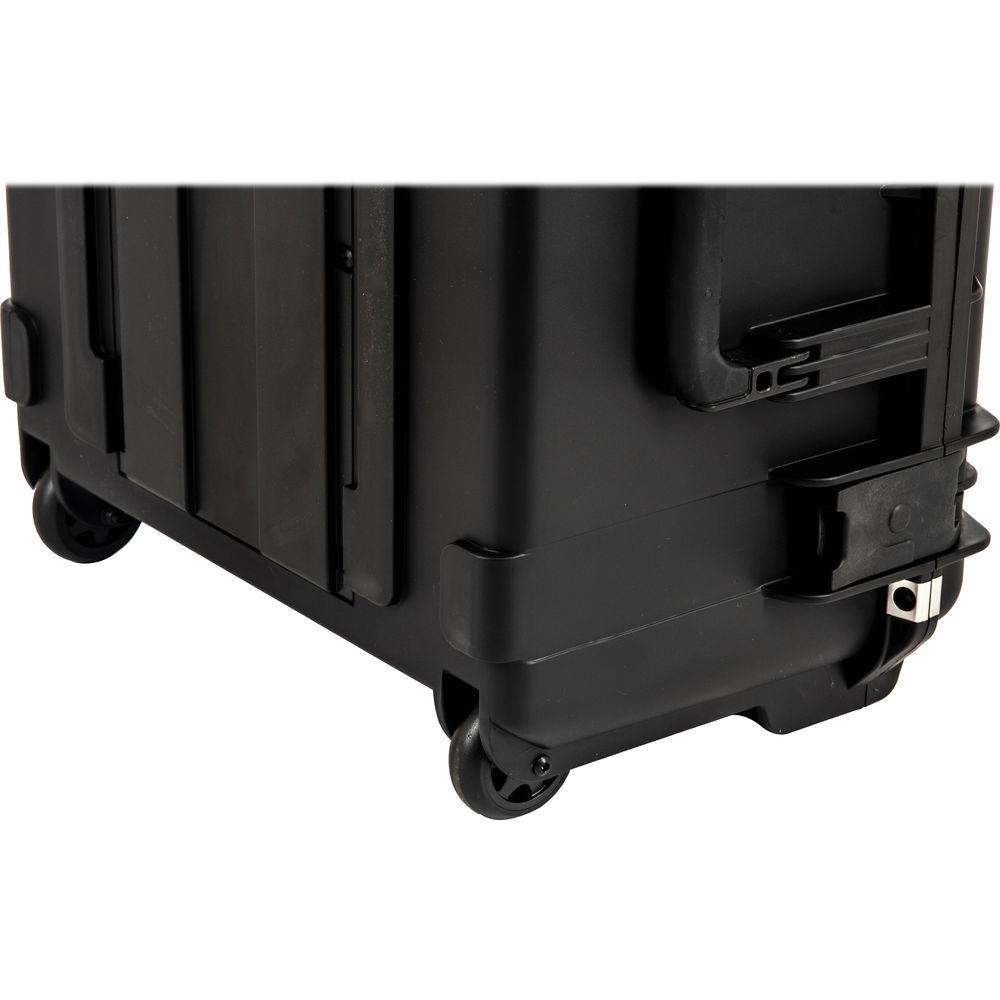

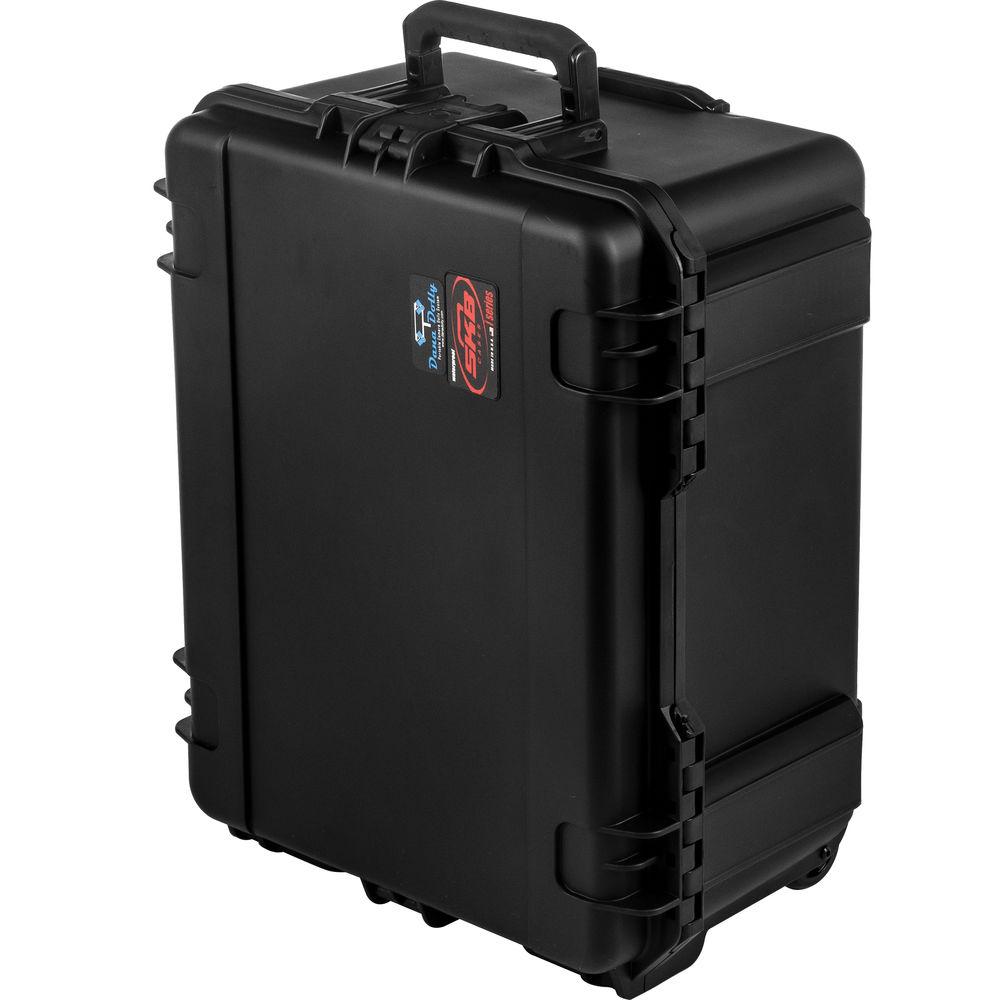

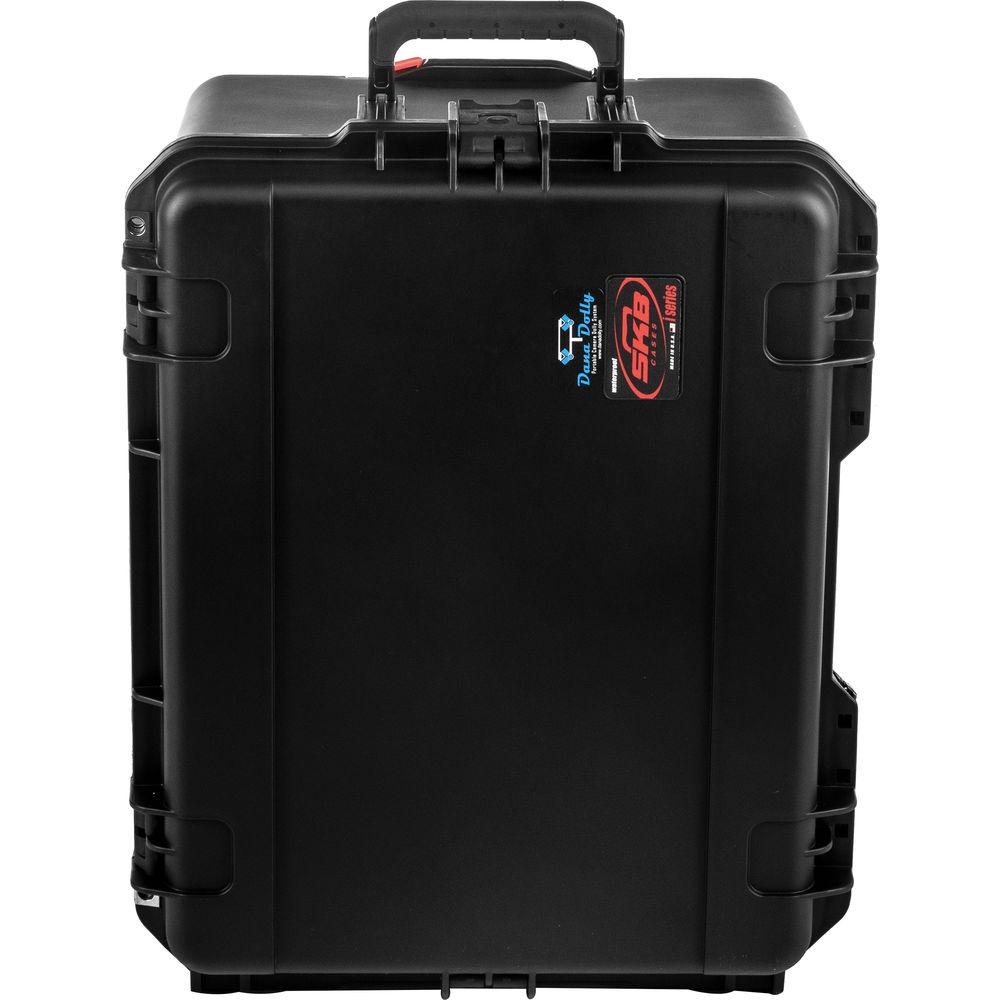

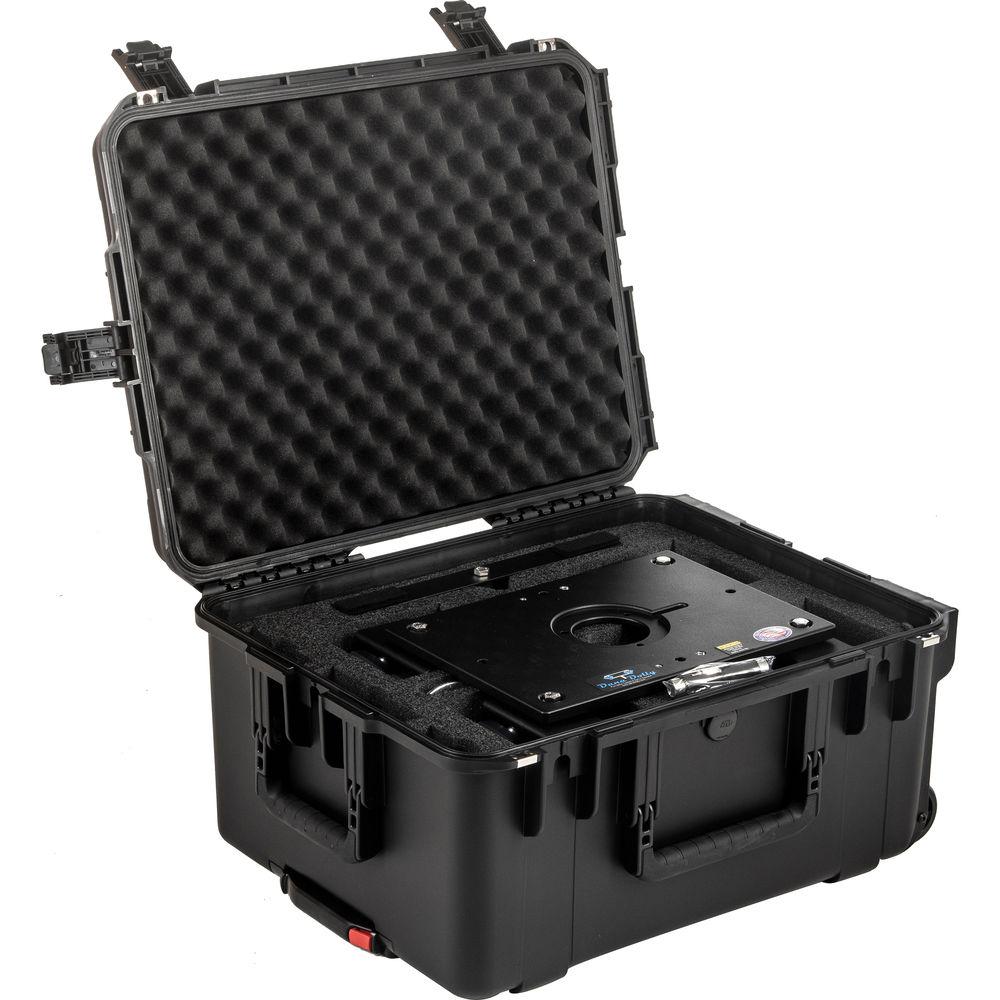

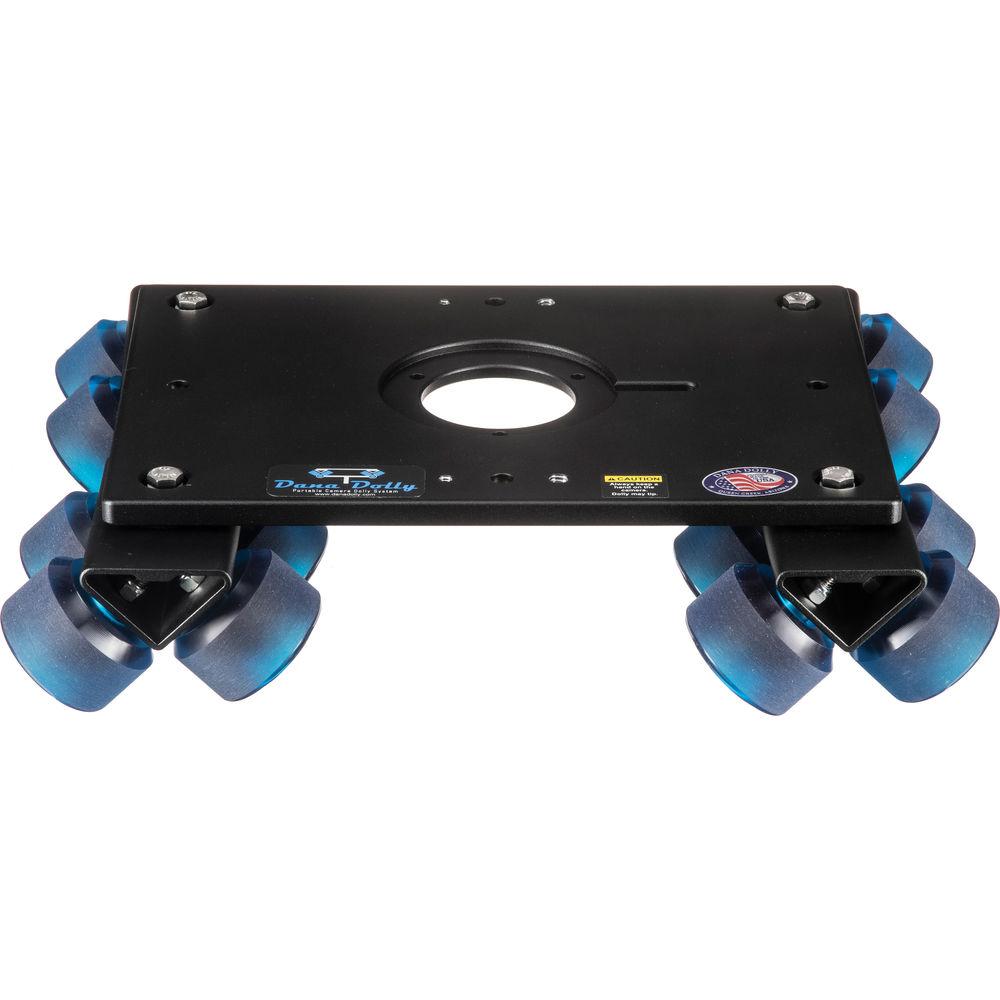

Product description The Dana Dolly Portable Dolly System Rental Kit with universal track ends is a heavy duty camera dolly platform that rides on 16 custom modified soft polyurethane wheels that resist flat spotting and use ABEC-7 rated precision bearings providing you with extremely smooth dolly shots. This kit is complete with 75, 100, and 150mm bowl adapters, and comes in a custom flight case. The wheel trucks swivel, allowing the dolly to ride on available straight or curved track, which you must source separately. The manufacturer recommends using standard speed rail or Schedule 80 aluminum pipe of compatible size. The dolly includes two universal track ends, which accept inch and a quarter pipe (standard speed rail) up to 1.9" O.D., and fit into available standard Junior stand receivers or 5/8" Baby pins. A center support is included for long track runs or when using heavy cameras.

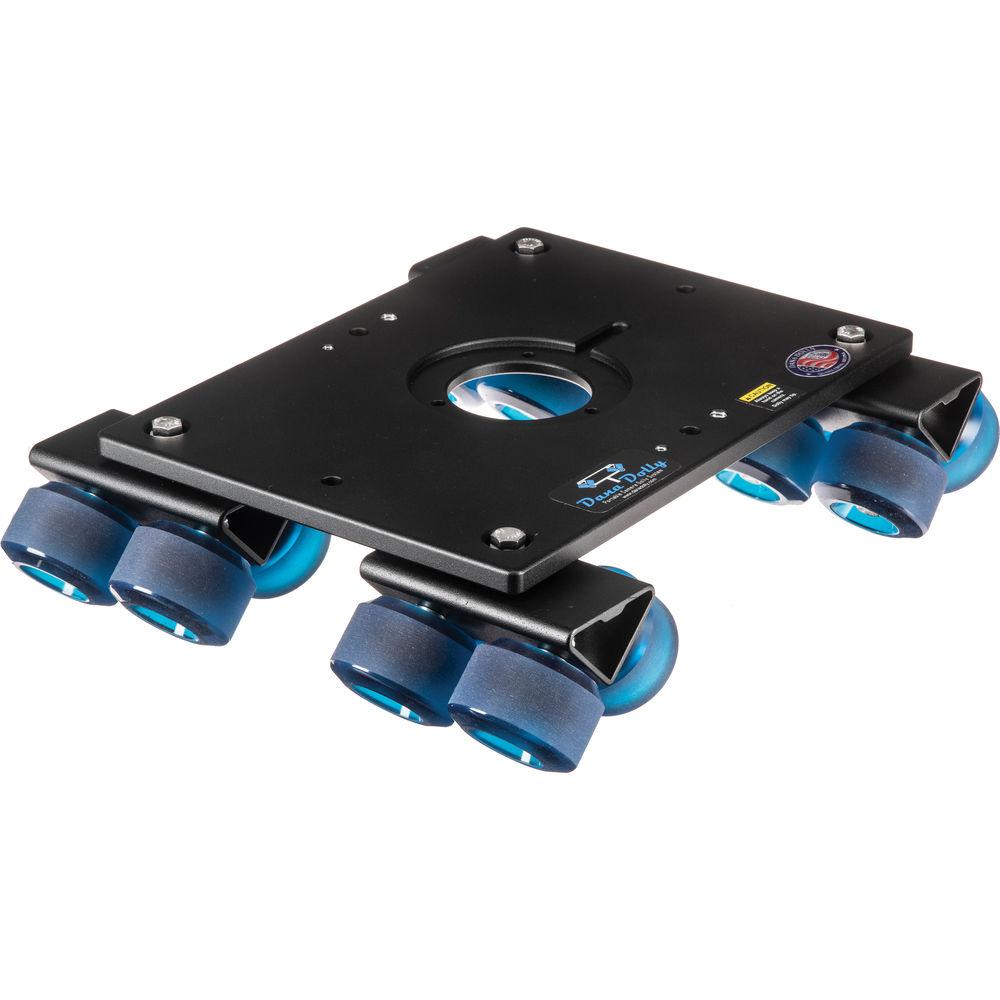

The dolly platform is machined from aluminum and features a standard Mitchell mount including a 2.75" center hole with a machined key way. The platform incorporates one 3/8" through hole, one 1/4"-20 threaded hole, and one 3/8"-16 threaded hole on each side of the dolly platform for a total of 6 accessory mounting holes. The rental kit includes a monitor mount with a ball head adapter. The Dana dolly is designed and manufactured in the USA. - Custom Machined Track Wheels
- The key to the Dana dolly's smooth ride are the 16 custom machined track wheels.
- The wheels are custom made soft, then turned down to be round within 1/1000 of an inch to eliminate the "bounce" that normal skateboard wheels suffer from.
- You can park the dolly with 100 pounds of camera and accessories on the track at 100° F for an hour without the wheels flat spotting.
- Another benefit from the machining the wheels is reduced squeak during use.
- The wheels are custom modified 16 at a time on a special machine, providing uniformity.

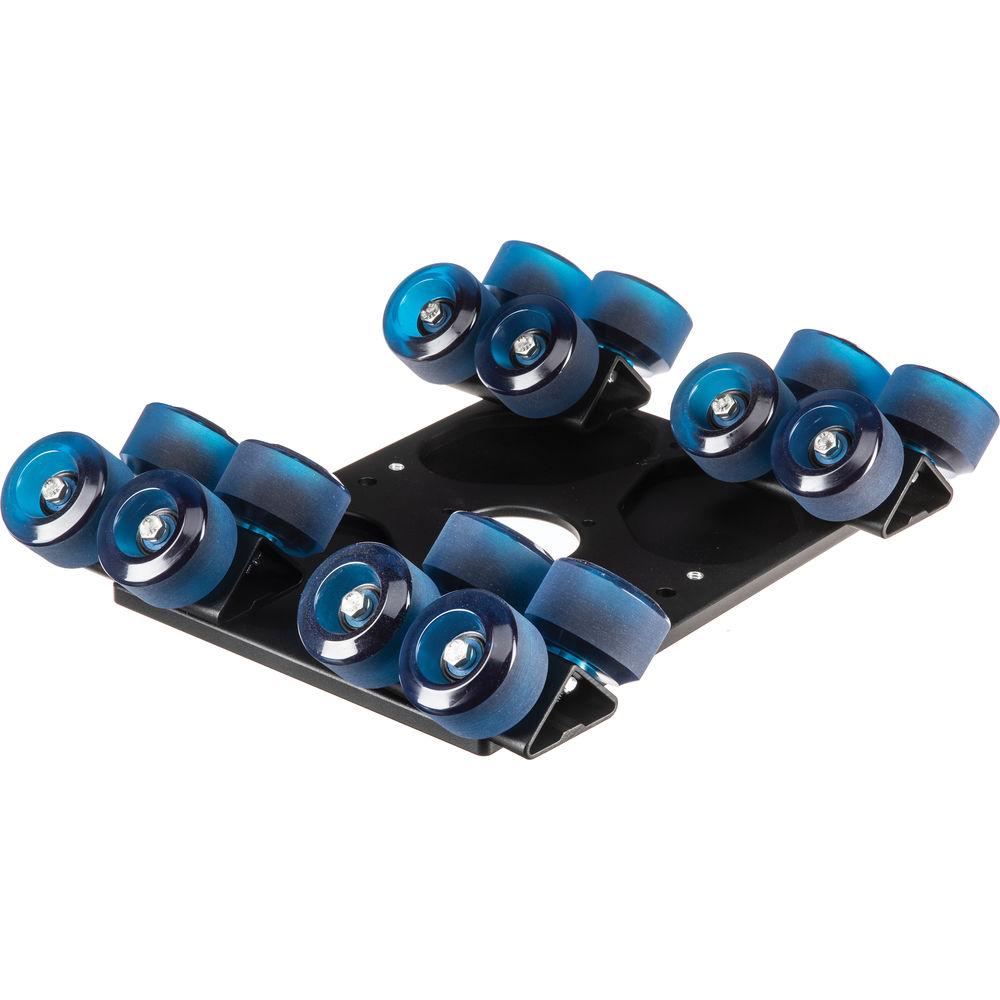

- Wheel Trucks
-
- The wheel trucks can swivel on the dolly, which allows it to ride on straight and round track.
- A felt washer separates the dolly platform from the wheel trucks, helping to reduce noise.
- The included T-Tool features a 1/2, 9/16, and 3/8" ends.
- It allows you to tighten the wheel trucks using the 9/16th end to suit your taste.
- Mitchell Mount
- The Mitchell mount features an elongated key way, allowing you to use non standard adapters.
- Track Supports
- Track supports fit into available standard Junior stand receivers or 5/8" Baby pin, although Dana Dolly recommends the use of available beefy baby stands at a minimum and to avoid thin walled aluminum stands

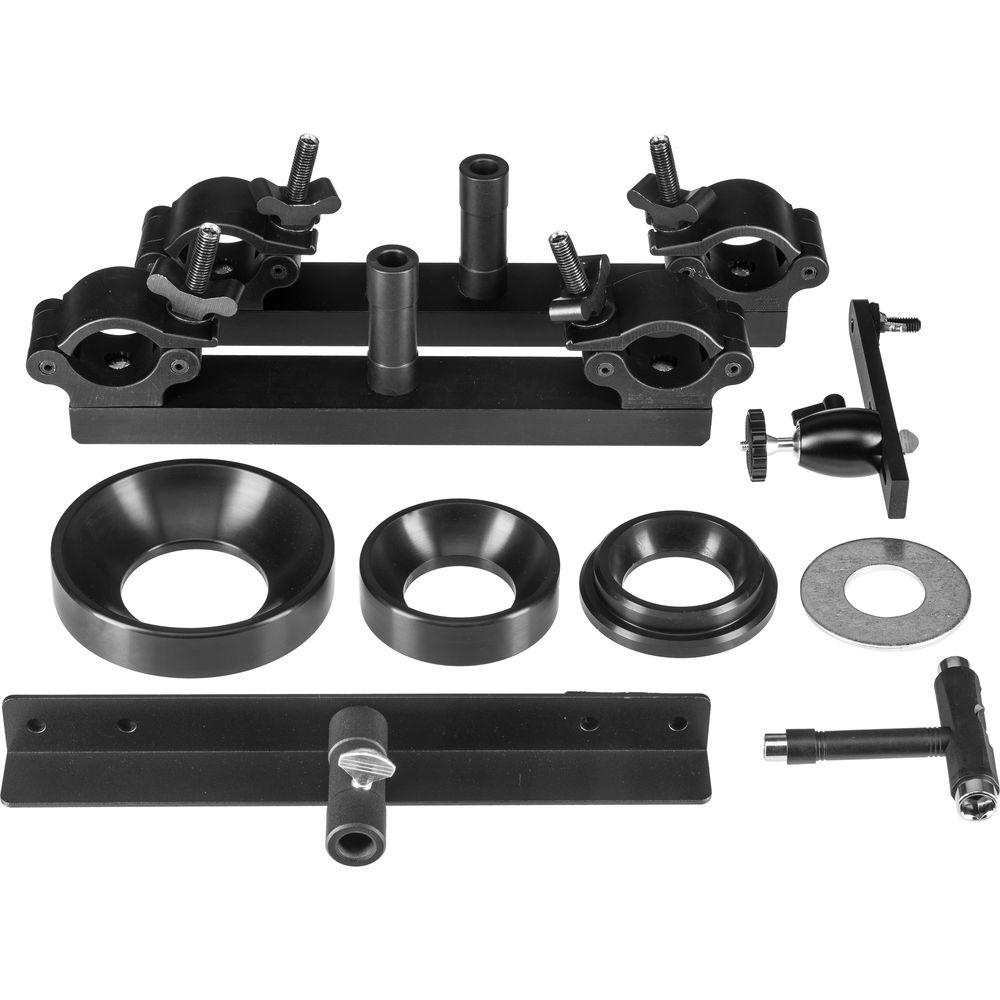

UPC: 851093003054 In the Box Dana Dolly Portable Dolly System Rental Kit with Universal Track Ends 2 x Universal Track Ends Center Support 75mm Bowl Adapter 100mm Bowl Adapter 150mm Bowl Adapter 3" Washer T-Tool Monitor Mount Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dana Dolly Portable Dolly System Rental Kit with Universal Track Ends in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDana Dolly DDURK1 Specs | Material of Construction | Dolly Platform
Machined 6061 Aluminum
Track Wheels
16 x Soft Polyurethane
Bearings
ABEC-7 rated precision bearings | | Load Capacity | 100 lb (45.4 kg) | | Head Fitting | Incorporated: Mitchell Mount
With included adapters: 75/100/150mm | | Accessory Mounting | 2 x 3/8" Through Hole
2 x 1/4"-20 Threaded
2 x 3/8"-16 Threaded | | Track Format | Outer Diameter: 1.5 to 1.9" (3.8 to 4.8 cm)
Truck Distance: Just under 12" (30.5 cm) on center | | Temperature | Max: 100°F (37.8°C) | | Dimensions (L x W) | Dolly: 14 x 10" (35.6 x 25.4 cm)
Flight Case: 24 x 20 x 14" (61 x 51 x 35.6 cm) | | Weight | 45 lb (20.4 kg) | | | | Package Weight | 50.45 lb | | Box Dimensions (LxWxH) | 26.0 x 20.2 x 13.75" |
