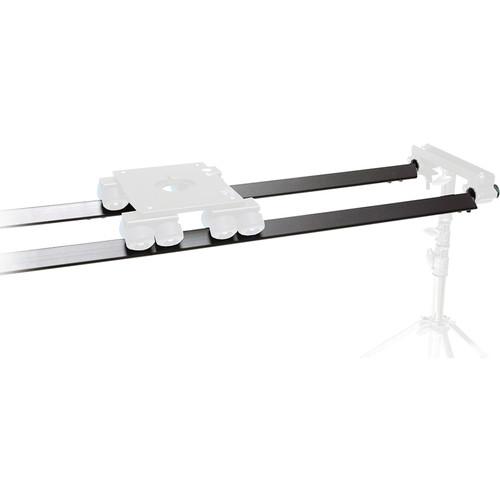

Product description The Dana Dolly Track Kit is a portable track kit for operators that wish to travel with their own dolly track. The triangular track is designed for use with the Dana Dolly, but should be compatible with most similar style dollies that use skateboard wheels set at 45°, and supports up to 100 pounds of camera, accessories and dolly. The kit includes six 3' track sections, nine track splicers, four end adapters, and necessary hardware to assemble 9' of track. Please note the kit only includes the triangular track and hardware, it does not include a Dana Dolly, Track Ends, or Center Support which must be purchased separately.

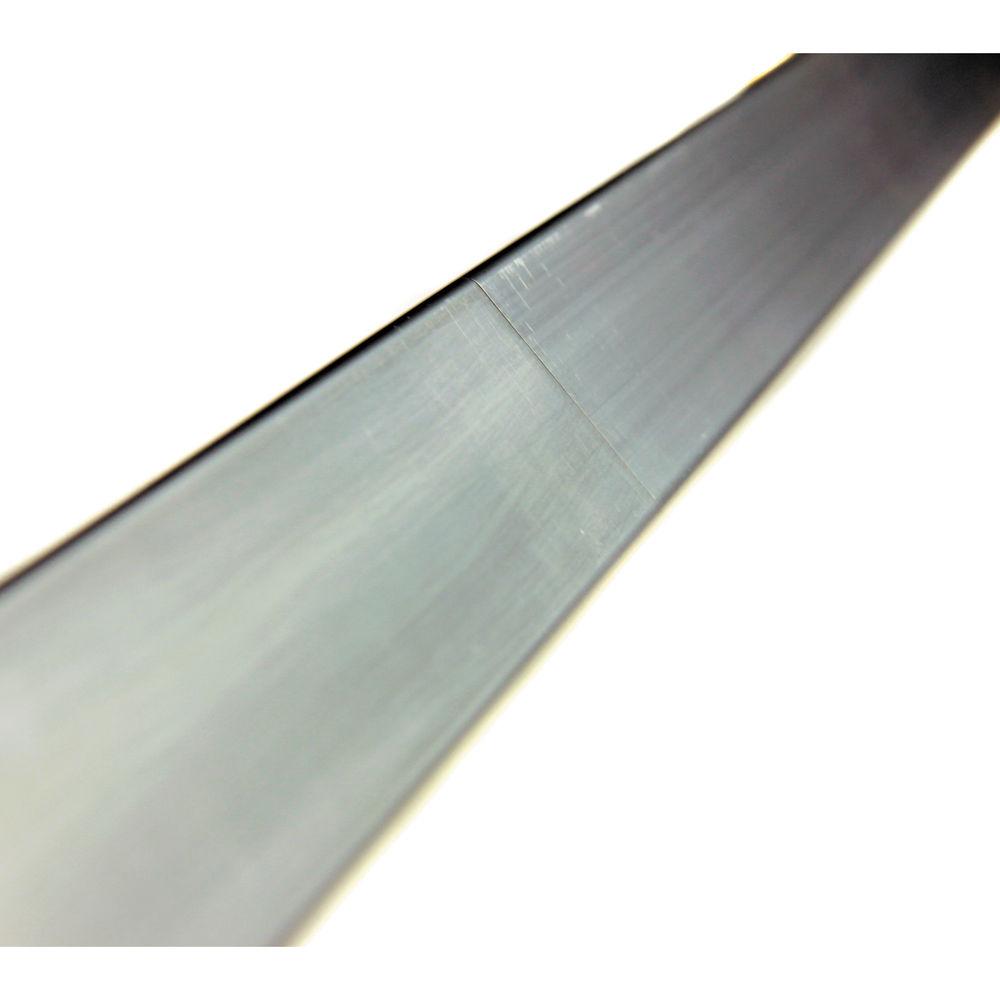

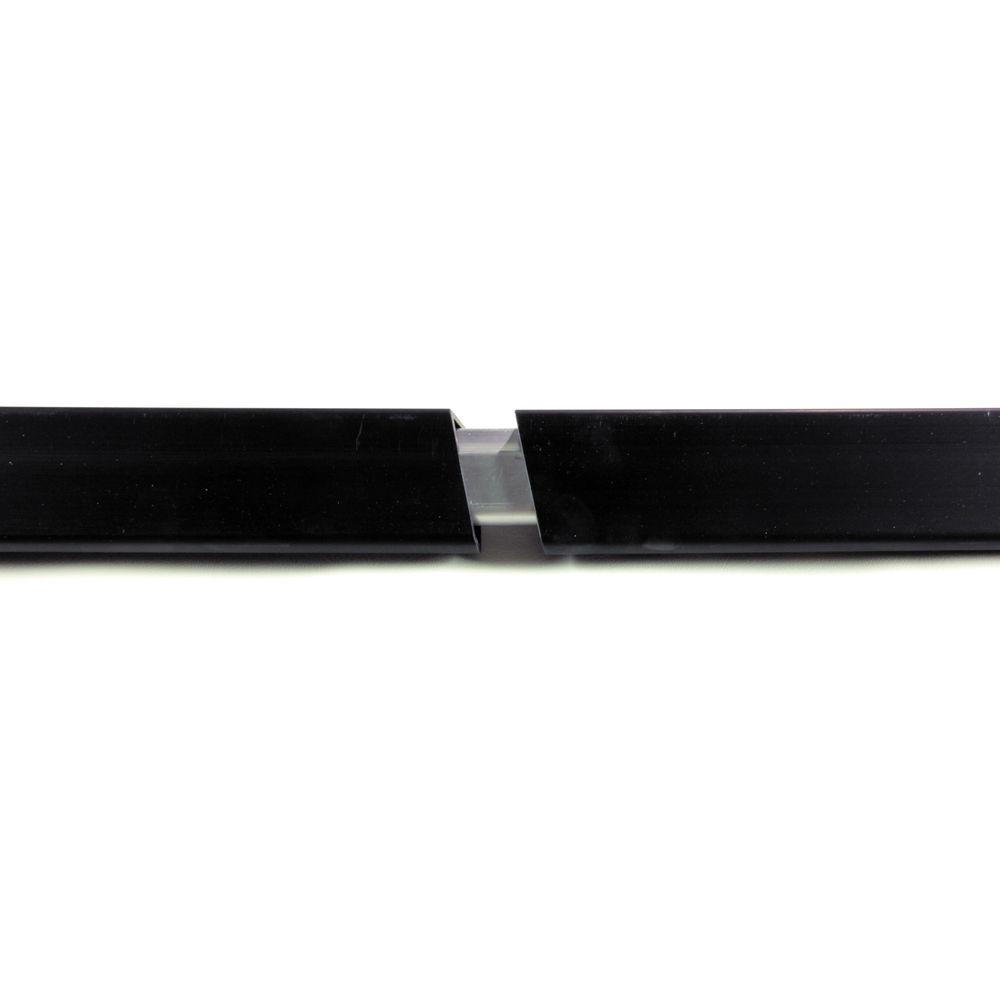

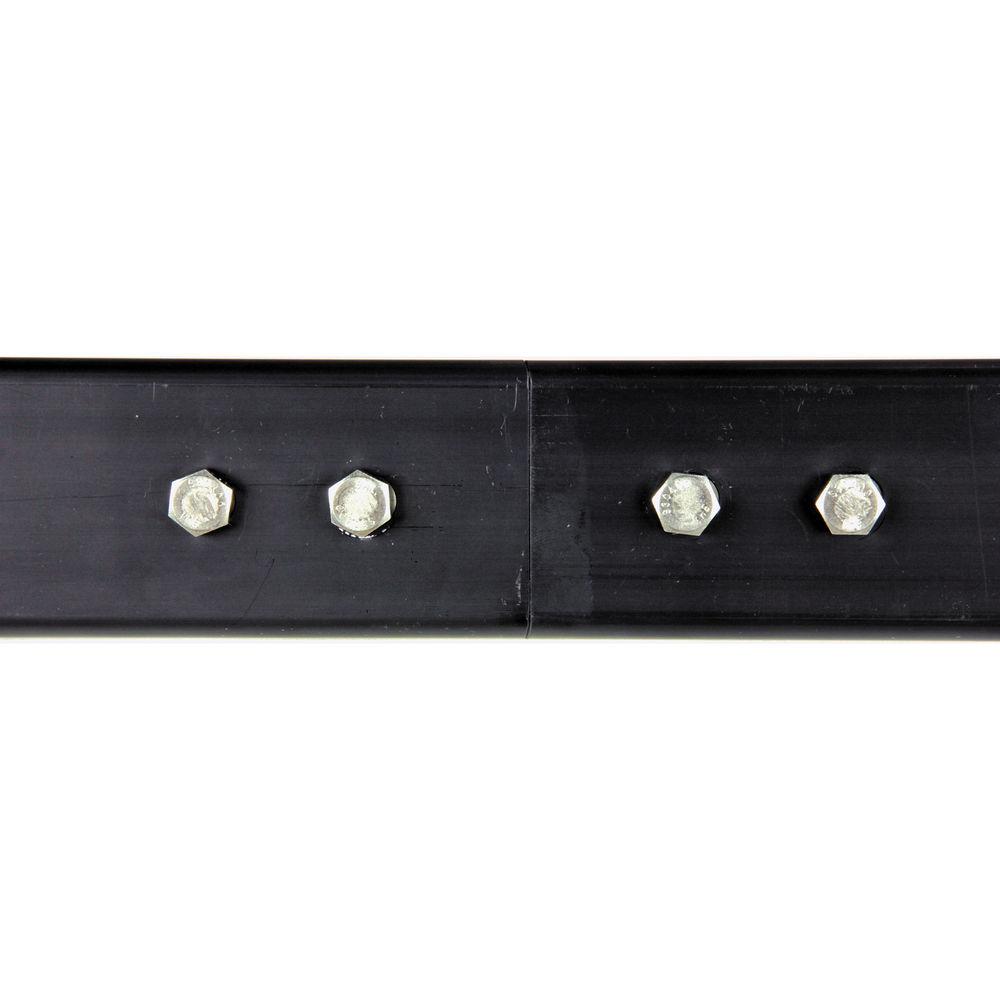

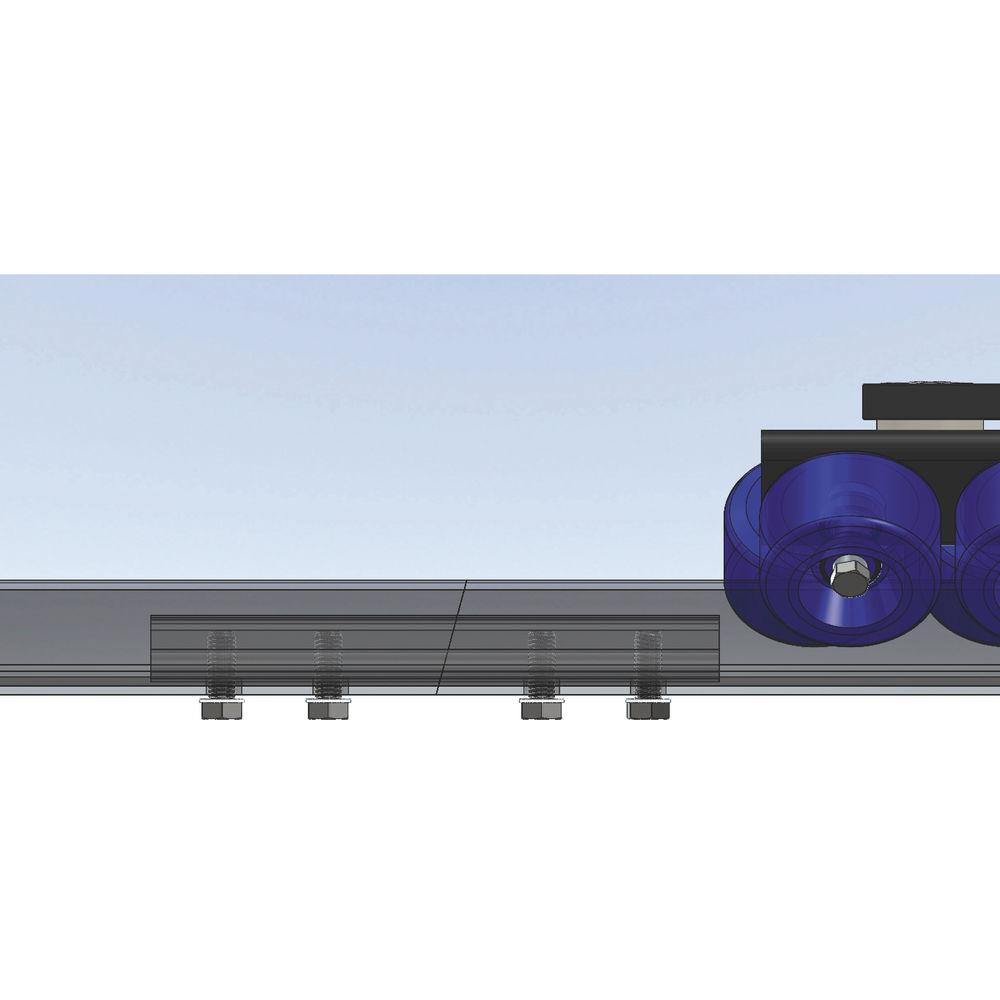

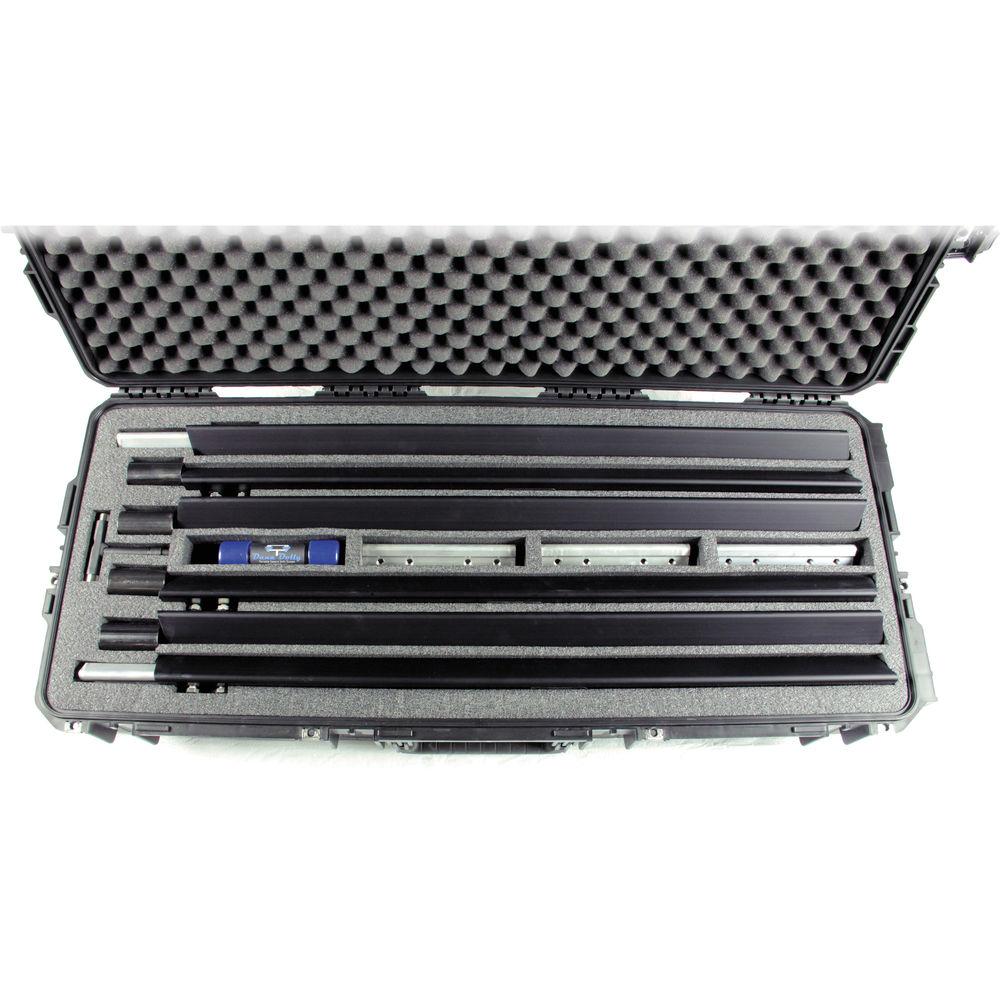

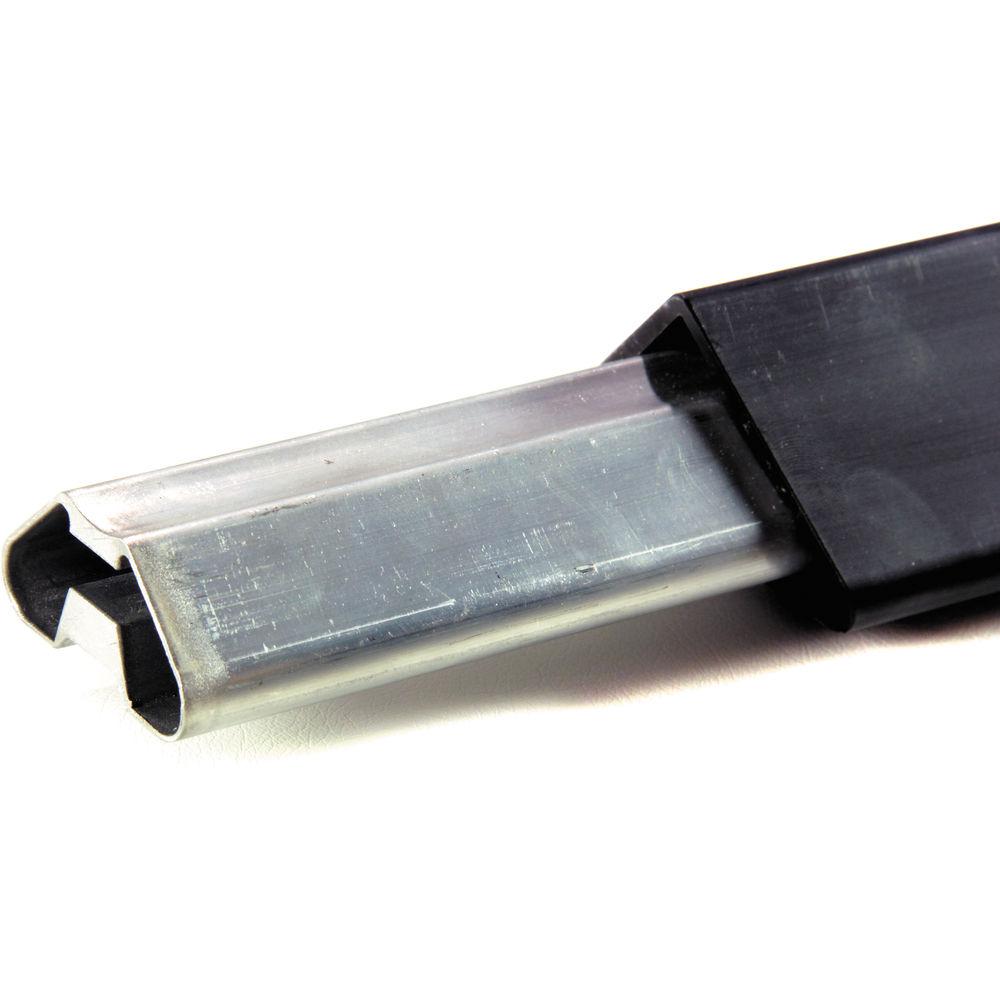

The triangular track is made from extruded 6061 Aluminum that is Type 3 Anodized black. The ends of the track are cut at an angle to minimize dolly bumps at track joins. The tracks are female on both ends, and are joined by the included extruded aluminum splicers that fit inside the track. The End Adapters attach to track splicers on the end, and allow you to use the Track Ends that came with your Dana Dolly, or are available separately, so you can mount the track on available stands, not included. The track sections, and hardware fit into an SKB case with custom cut foam. - The kit comes with enough track sections to assemble 9' of seamless dolly track. However, you can purchase additional kits to extend your track beyond 9'.

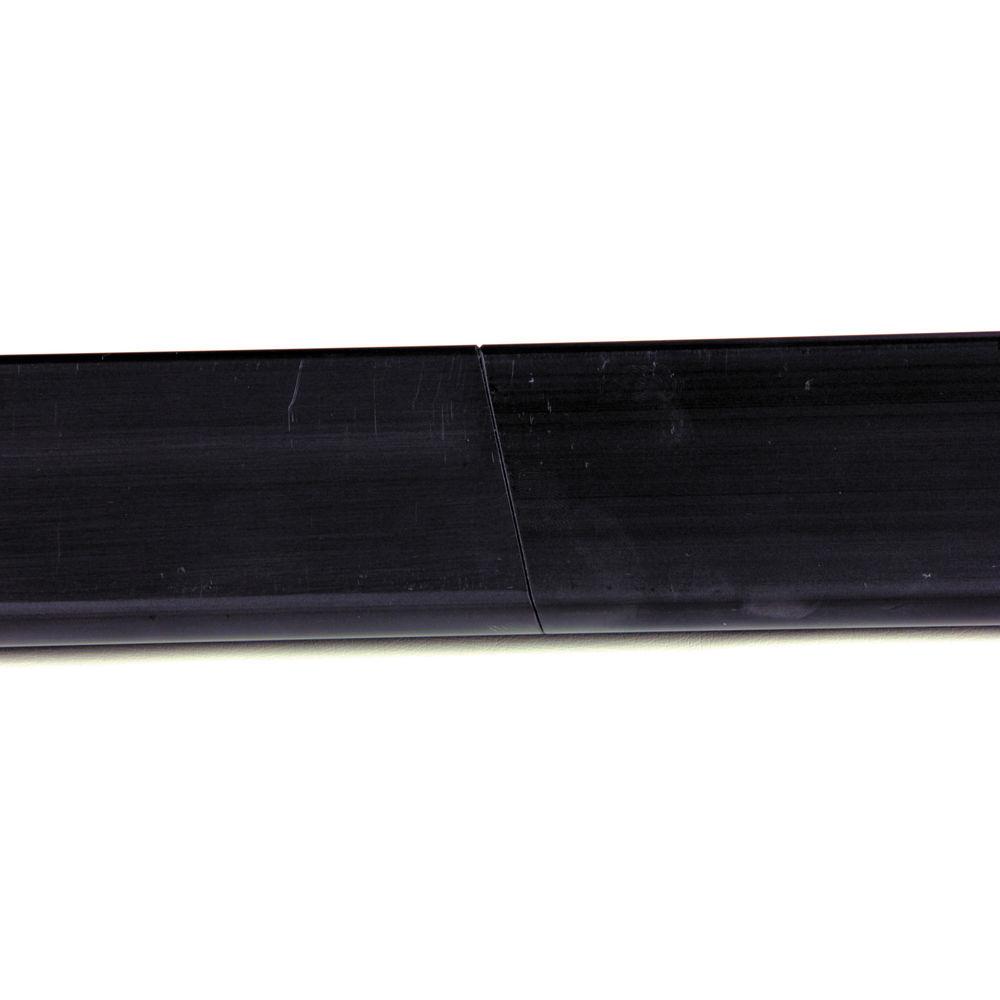

- When assembling the track, Dana Dolly recommends that you mirror the angled seams to minimize bumps from track joins that are common with track that has track ends with straight seams. Mirroring the seams mean that you assemble the sections of track into your track rails. Then flip one of the assembled rails so that the angled seams are in different direction.
- The track rails are made from extruded 6061 aluminum that is treated with Type 3 black anodizing, which is a mil spec anodizing that is thicker, and more wear/corrosion resistant than common anodizing.
- Fully assembling the track requires eight track splicers, an extra splicer is included as a spare.

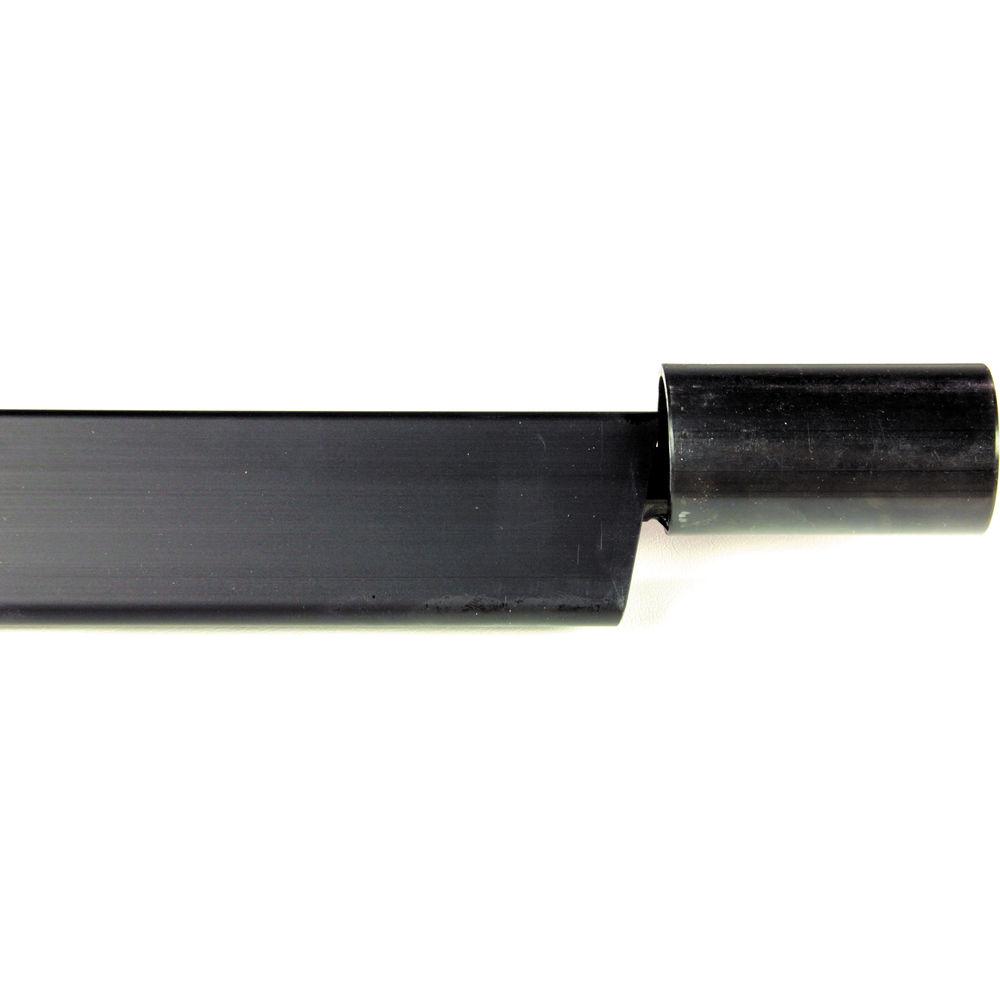

- The End Adapters allow you to attach the track to available Dana Dolly Original and Universal Track Ends, which are not included and must be sourced separately.
- Assembling the track only requires the use of the included "T" tool.
UPC: 851093003153 In the Box Dana Dolly Track Kit 6 x 3' Long Track Rail Section 9 x Track Splicers 4 x Track Ends 15 x 1" Long Bolts 8 x 3/4" Long Bolts T Tool SKB Case with custom Cut Foam Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dana Dolly Track Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDana Dolly DDTRKKT1 Specs | Material of Construction | Track
Type 3 Anodized 6061 extruded aluminum
Slicers
Extruded aluminum
Bolts
Common | | Track System | 6 x 3'(0.9 m) sections
15 x 1" (2.54 cm) bolts 8 x 0.75" (1.9 cm) bolts | | Case Dimensions | 40 x 20 x 9" (101.6 x 50.8 x 22.9 cm) | | | | Package Weight | 56.0 lb | | Box Dimensions (LxWxH) | 46.0 x 19.5 x 8.0" |
