User Manual for Dangerous Music 2-BUS LT 16-Channel Analog Summing Mixer Click to enlarge the picture
Contents of the user manual for the Dangerous Music 2-BUS LT 16-Channel Analog
- Product category: Analog Recording Mixers Dangerous Music
- Brand: Dangerous Music
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dangerous Music Analog Recording Mixers
 |
User manual for the Dangerous Music 2-BUS LT 16-Channel Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dangerous Music product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dangerous Music user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dangerous Music product will considerably shorten its lifespan!
|
Product description Dangerous Music is My Mastering Name Read More fwwewvqwewyqsyuquc The Dangerous Music 2-BUS LT 16-Channel Analog Summing Mixer is a 1U rack mountable summing mixer designed by mastering engineers for restoring the feel, headroom, and quality of analog sound to digital mixing. The unit can mix the output from up to 16 digital-to-analog converters and sum them to a stereo recorder or A/D converter for recording into your DAW. You can add more channels by using the device's pair of left and right XLR remote expansion connectors to link multiple 2-BUS, 2-BUS LT, Dangerous Music Monitor, or Monitor ST devices.

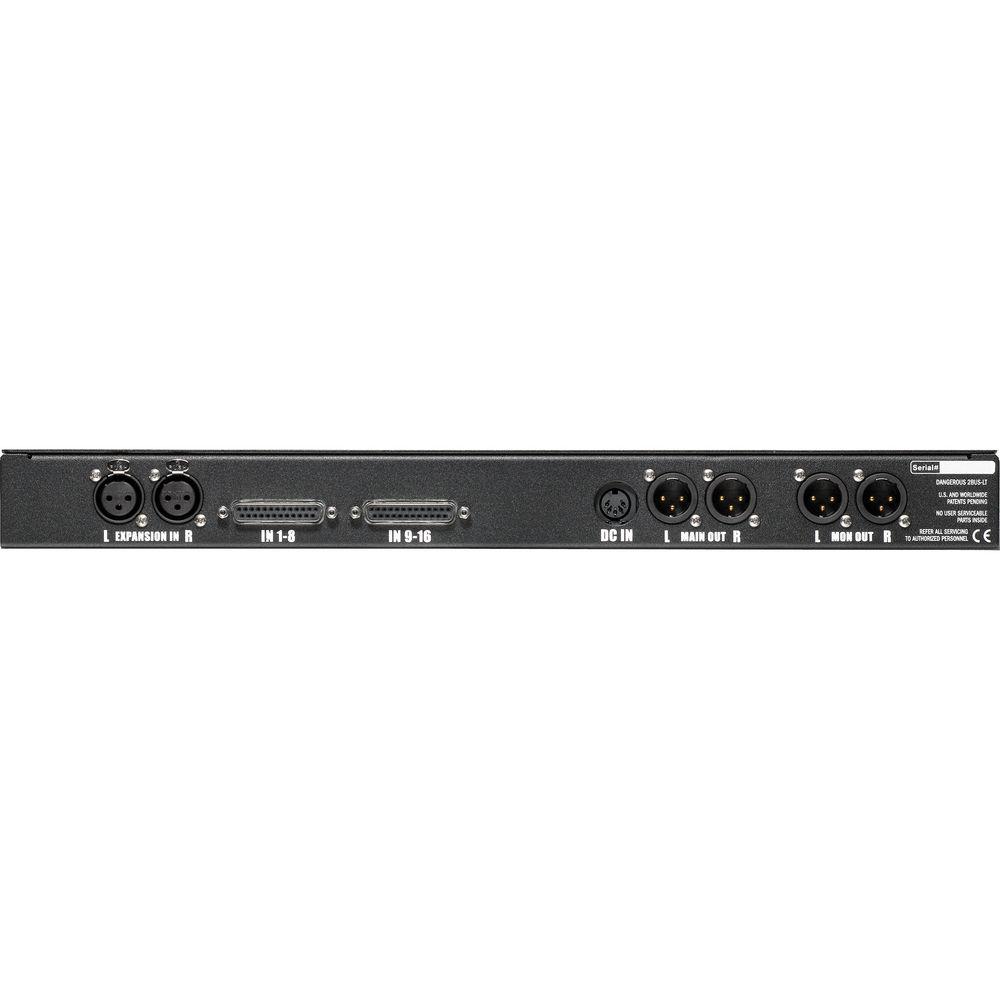

For I/O, the mixer features two 25-pin D-sub connectors that enable eight pairs of inputs and two stereo pairs of XLR outputs for the main out and monitor channels.

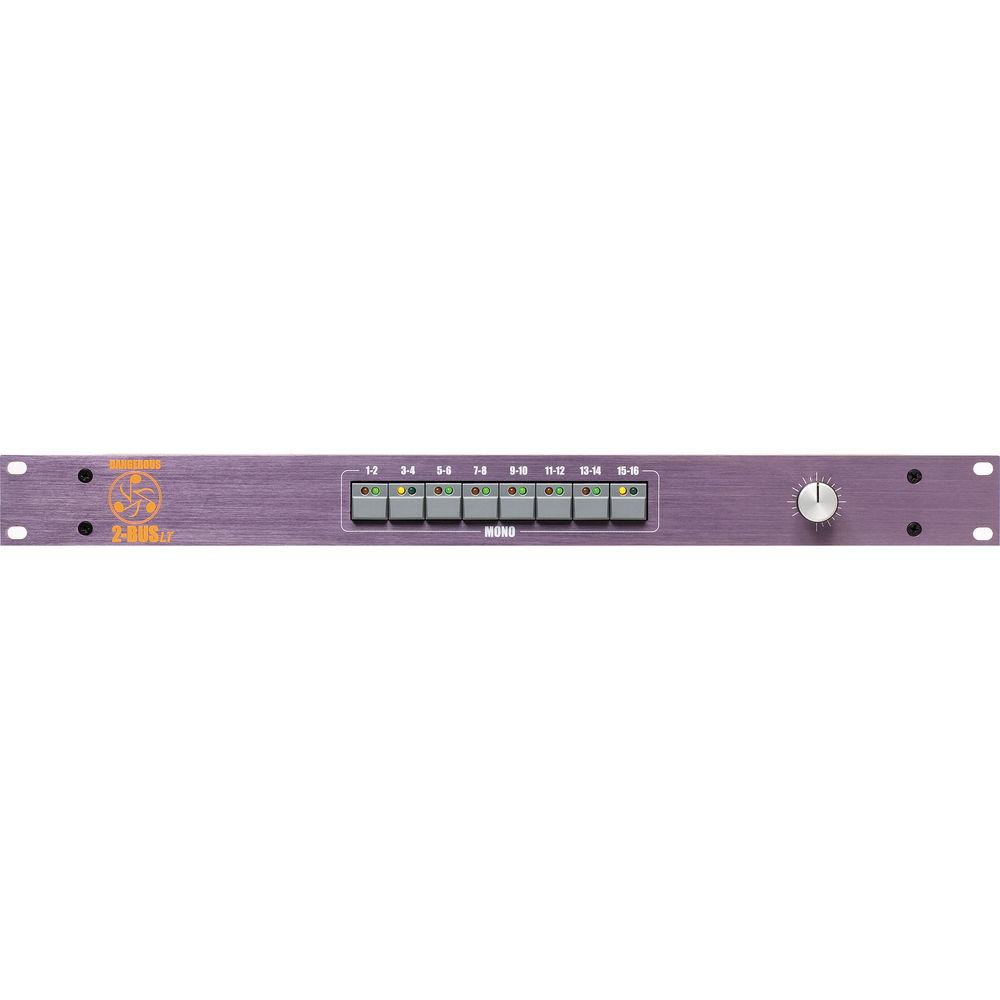

For each input pair, the front of the device features a mono button for sending the left or right channel of a pair down the center. A stepped output trim level knob provides an overall fine gain adjustment. All other controls such as signal levels and panning position with automation are adjusted within the Digital Audio Workstation.
A typical workflow using the 2-BUS LT would involve sending each track from within your digital mix to a separate output on your digital-to-analog converter. A patch bay can be inserted at this stage to expand your options for routing through outboard gear. Each output is then connected to an input on the summing mixer, the panning and levels are adjusted, and then the stereo output from the summing mixer is sent back through your analog-to-digital converter to record two new channels into your DAW.
By separating the individual elements of your mix and sending each one through a separate digital-to-analog converter channel, each element in the mix is supplied with the maximum amount of power to perform the conversion than would be the case if all the elements were sent through the same converter. The unit features a switching power supply and the back of the unit features a pair of banana plugs for separating the ground from the chassis. In the Box Dangerous Music 2-BUS LT 16-Channel Analog Summing Mixer Switching Power Supply Limited 90-Day Warranty, Extendable to 2-Years with Online Registration User Manual PDF 409.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dangerous Music 2-BUS LT 16-Channel Analog Summing Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDangerous Music 2-BUS LT Specs | Frequency Response | 1 to 100,000 Hz within 0.1 dB | | Total Harmonic Distortion | 0.005% in audio band | | Intermodulation Distortion | 0.006% IMD60 4:1 | | Crosstalk | -97 dB at 1 kHz | | Noise Floor | <-83 dBu total energy in audio band | | Maximum Level | +27 dBu | | Nominal Operating Level | +4 dBu | | Input Impedance | 25 kOhms balanced | | Output Impedance | 50 Ohms balanced (600 Ohms drive capable) | | Gain Accuracy | >0.02 dB at 1,000 Hz for any gain setting | | Power Consumption | 25 W | | Rack Size | 1 U | | Dimensions (H x W x D) | 1.75 x 19 x 9.5" (4.45 x 48.3 x 24.1 cm) | | Weight | 10.5 lb ( 4.77 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 7.0" |
