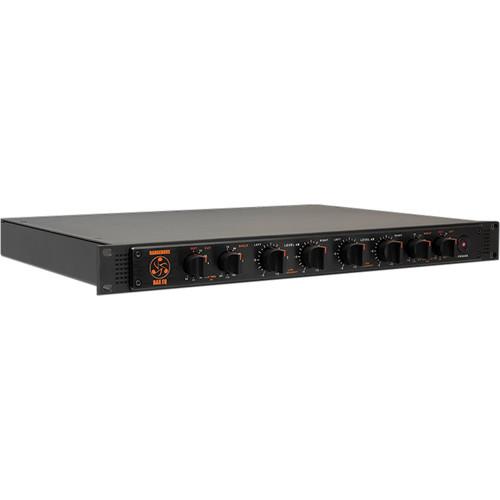

User Manual for Dangerous Music BAX EQ Stereo Shelving Equalizer Click to enlarge the picture
Contents of the user manual for the Dangerous Music BAX EQ Stereo Shelving
- Product category: Equalizers Dangerous Music
- Brand: Dangerous Music
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dangerous Music Equalizers
|
User manual for the Dangerous Music BAX EQ Stereo Shelving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dangerous Music product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dangerous Music user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dangerous Music product will considerably shorten its lifespan!
|
Product description Dangerous Music is My Mastering Name Read More uswwqfeswuafvbczwayfzfsuwwxqze The Dangerous Music BAX EQ Stereo Shelving Equalizer is designed by mastering engineers for recording, mixing, and mastering. The unit is based on Peter Baxandall's classic tone control designs and allows you to precisely shape your sound. The back of device features a pair of 3-pin XLR inputs and a pair of 3-pin XLR outputs.
The front of the unit includes stepped control knobs for a 12 dB/octave low-frequency cut filter for reducing rumble from infrasonic content. A broad bandwidth shelving EQ control allows you to adjust several octaves at the same time with minimal phase delay, and stepped controls in 0.5 dB increments for left and right low-frequency levels enable you to discretely correct any stereo channel imbalances.
Similarly for the treble, the EQ includes stepped control knobs for an Ultrasonic cut filter, a high-frequency shelf filter for adjusting several octaves at once, and independent left and right high-frequency level controls for correcting stereo signal imbalances. When set to "Out", the cut filters are removed through a relay bypass for A/B comparisons of the signal with and without the cut equalization. A hard-wired engage button allows you to bypass all of the equalization hardware from the circuit for true A/B comparisons of the signal with and without the EQ. UPC: 628586496958 In the Box Dangerous Music BAX EQ Stereo Shelving Equalizer 3-Pin IEC Power Cable Limited 90-Day Warranty, Extendable to 2 Years with Online Registration User Guide PDF 6.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dangerous Music BAX EQ Stereo Shelving Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDangerous Music BAX EQ Specs | I/O | Inputs: 2 x 3-pin female Neutrik XLR connectors
Outputs: 2 x 3-pin male Neutrik XLR connectors | | Frequency Response | ± 0.1 dB from 10 to 20,000 Hz
± 0.2 dB from 1 to 80,000 Hz | | Maximum Level | >+28 dBu | | Noise Floor | <-92 dBu band limited from 22 to 22,000 Hz | | THD + N | <0.002% | | IMD | <0.003% | | Crosstalk Rejection Typically @ 1 kHz | >105 dB | | Fuses | USA: 500mA fast blow for 120V
Europe: 250mA fast blow for 240V | | Input Impedance | 25KΩ | | Output Impedance | 50Ω | | Rack Size | 1U | | Dimensions (H x W x D) | 1.75 x 19 x 12" (4.45 x 48.3 x 30.5 cm) | | Weight | 12.5 lb (5.67 kg) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 7.0" |
