Dangerous Music COMPRESSOR - Dual-Channel VCA

Search your instruction manual in PDF to download

User Manual for Dangerous Music COMPRESSOR - Dual-Channel VCA Compressor With Smart Dynamics

Click to enlarge the picture
Dangerous Music COMPRESSOR - Dual-Channel VCA Compressor With Smart Dynamics Contents of the user manual for the Dangerous Music COMPRESSOR - Dual-Channel VCA
  • Product category: Dynamics Processors Dangerous Music
  • Brand: Dangerous Music
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Dangerous Music Dynamics Processors

Dangerous Music COMPRESSOR - Dual-Channel VCA Compressor With Smart Dynamics Dangerous Music COMPRESSOR - Dual-Channel VCA Compressor With Smart Dynamics
User manual for the Dangerous Music COMPRESSOR - Dual-Channel VCA contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Dangerous Music product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Dangerous Music user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Dangerous Music product will considerably shorten its lifespan!



Product description

With two years of research, the Dangerous Music COMPRESSOR was developed by mastering electronic circuit designer Chris Muth to optimize the signal dynamics of your mix for tracking, mixing, and mastering while preserving the transparency and musicality that defines the company's reputation for uncompromising audio integrity.

The unit is a dual-channel processor with each side capable of operating independently or both sides can be linked for stereo operation. The two sides can also be utilized serially which allows for example to use one channel to compress a mix and the other to function as a limiter.

Separate Detectors for the left and right channels prevents the phase cancellation that can sometimes occur when a stereo compressor sums a mix to mono and instead uses a single detector.

A front-panel smart dynamics button engages a peak limiter with an extremely quick attack and release. This prevents fast transients such as a snare hits from ducking the level of RMS compression, which in turn allows for the overall level to be raised much higher while preserving the musical dynamics of your mix. The smart dynamics are so fast that the unit can perform like an automated fader with virtually no distortion. A hard-wire bypass button allows you to A/B compare the effect of the unit on a track or mix.

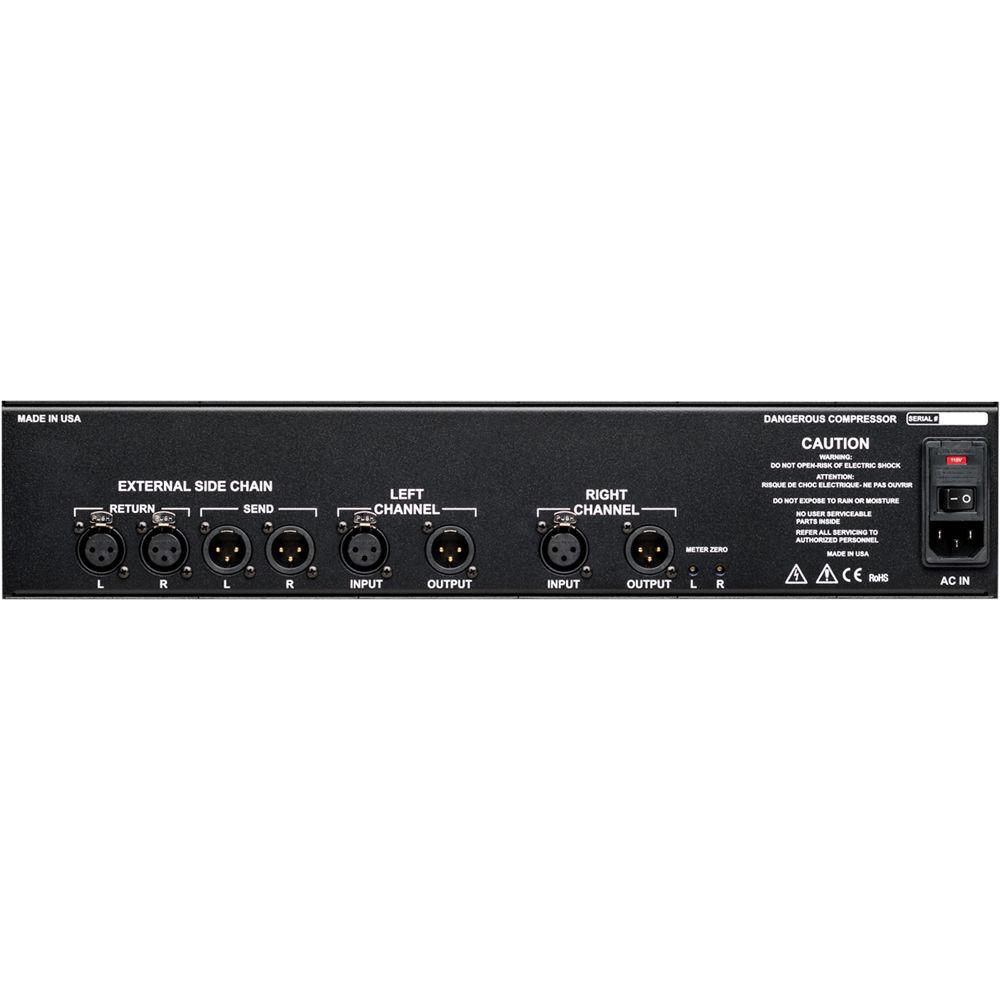

The back panel of the 2RU rackmountable COMPRESSOR includes balanced left and right input and output XLR connectors, as well as XLR left and right active send and return connectors, for sidechaining external processors. The send and return sidechain path allows you to insert and activate outboard gear such as an equalizer for removing frequencies that would overshoot the COMPRESSOR's detectors or focusing the compression over a particular frequency range.

A sidechain bass cut button gives the mix more low end by ignoring infrasonic and bass frequencies below 60 Hz from influencing the COMPRESSOR. A sidechain sibilance boost button cuts back on harsh "ess" sounds from vocals, cymbals, and other sounds.

Active sidechain I/O ensures that loading and different device impedances are not an issue. A front-panel sidechain monitoring button allows you to A/B compare the effect of the external sidechain device on the COMPRESSOR's detectors.

A soft/hard knee button provides two preset knee options for different scenarios. After the threshold of the COMPRESSOR has been crossed, the hard knee setting offers a more aggressive transition to compression while the soft knee setting is more forgiving.

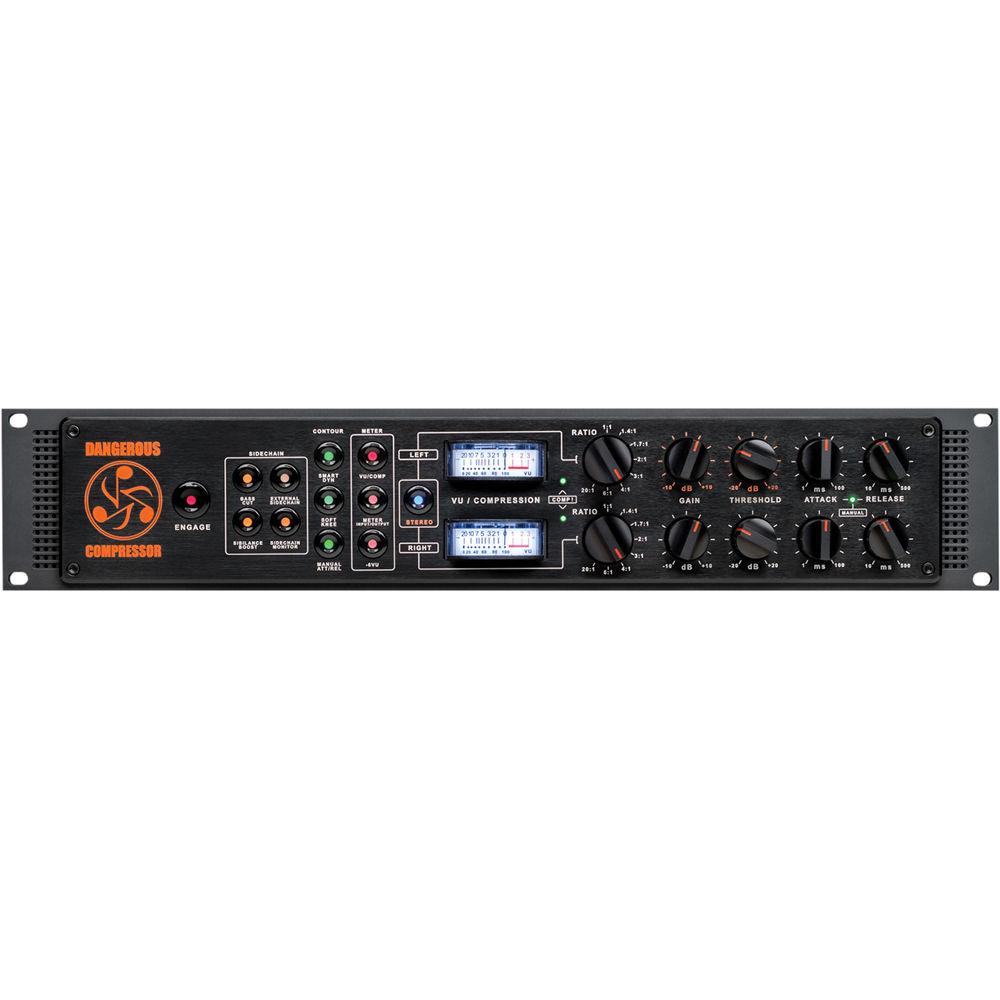

For visual feedback, the unit features both LEDs and two center-mounted edge meters that can display the signal's input and output levels or the amount of gain reduction. A -6VU button can be engaged to protect the meters from potential damage when metering hot input or output levels. The meters can also be manually re-calibrated in the rare event of meter drift to ensure accuracy.

The COMPRESSOR can operate in either automatic or manual modes. For manual controls, both the left and right channels feature five metal rotary knobs that provide you with eight selectable compression ratios (1, 1.4, 1.7, 2, 3, 4, 6, and 20:1 for brickwall limiting), enable gain attenuation and makeup within a ±10 dB range, set a ±20 dB threshold, set an attack time between 1 and 100 ms, and set a release time between 10 and 500 ms.

The unit is hand-assembled in the United States using mastering grade components to preserve the integrity of the circuit board. The unit is DC coupled with high-power voltage rails and Mogami point-to-point wiring so that no transformers or filter caps color your sound. The COMPRESSOR is so carefully designed that even the internal non-audible control circuitry within the device is of audiophile-grade quality in terms of total harmonic distortion. The unit's switchable voltage power supply allows you to operate the COMPRESSOR anywhere in the world with the appropriate cable.
    Mastering-Grade Components
  • Uses components carefully selected and tested for both performance and sound
    DC Coupled Design
  • Uses DC coupling with massive voltage rails and Mogami point-to-point writing for a simple design without transformers or filter caps coloring your sound
    Hand Assembled in USA
  • Avoids 6,000 miles of oceanic circuit board rattling
    Stringent Quality Control
  • Ensures exceptionally low failure rate and years of reliable use
    Preset Audiophile Sidechain EQ
  • Allows for connecting external processors, such as an EQ to adjust the detection signal
    Bass Cut Sidechain Button
  • Gives the mix more low end by ignoring infrasonic and low bass frequencies such as from a kick drum, bass guitar, etc
    Sibilance Boost Sidechain Button
  • Cuts back on harsh "ess" sounds from vocals, cymbals, etc
    Smart Dynamics
  • Uses two independent slopes working together, one for catching peaks and one for the average level, which translates into less need or no need for digital limiting and allows more overall level
    Soft/Hard Knee Button
  • Offers two presets, one with a more aggressive transition after crossing the threshold and another more forgiving signal
    True Stereo Linking
  • Operates in either dual mono or stereo mode with independent detectors on each channel for a more faithful stereo field that still tracks gain reduction across both channels
    Comprehensive Metering
  • Allows you to view the input, output, or gain reduction average with a -6VU option to save your meters from potential damage when metering hot input or output levels
    Threshold and Makeup Gain
  • Provides manual control to set the point at which compression begins and the compensate for the level lost with gain makeup
    True Hard-Wired Bypass
  • Allows you to A/B the influence of the COMPRESSOR on your signal chain
    Extended Sidechain Options
  • Provides active sidechain send and return I/O for incorporating external processors as well as sidechain monitoring for auditioning what the detector hears
    Manual Attack and Release Control
  • Allows you to set the attack and release times to rates other than what is offered by automatic operation
    Stepped Ratio Control
  • Ensures you can reproduce ratio settings when determining how much the signal should be compressed
    Quality Locking Connectors
  • Ensures more contact surface area and better connections
    Meter Zero Calibration
  • Allows you to readjust the VU meters to zero in the event of meter drift
    Switchable Power Supply
  • Allows you to use the COMPRESSOR anywhere in the world with the appropriate cable
In the Box Dangerous Music COMPRESSOR - Dual-Channel VCA Compressor With Smart Dynamics
  • Power Cable
  • Limited 90-Day Warranty on Parts and Labor, Limited 2-Year Extended Warranty With Online Registration
  • User Guide PDF 949.1kbrdwedfzuzuczscdrecvbucsbav Table of Contents




    Upload User Manual

    Have you got an user manual for the Dangerous Music COMPRESSOR - Dual-Channel VCA Compressor With Smart Dynamics in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Dangerous Music COMPRESSOR Specs

    Frequency Response ±0.25 dB from 15 to 80,000 Hz
    Maximum Level +27 dBu
    Noise Floor <-93 dBu band limited from 22 to 22,000 Hz
    THD+N <0.005%
    IMD <0.007%
    Crosstalk Rejection Typically @ 1 kHz >115 dB
    Fuses USA: 500 mA fast blow for 120V
    Europe 250 mA fast blow for 240V
    Input Impedance 20 kOhms
    Output Impedance 50 Ohms
    Sidechain Filter Bass Cut: 6 dB/octave, -3 dB at 60 Hz
    Sibilance boost corner frequency is 1,000 Hz with +2 dB at 5,000 Hz shelving
    Rack Unit Space 2
    Dimensions (W x D x H) 19.0 x 3.5 x 12.0" (48.3 x 8.9 x 30.5 cm)
    Weight 19.0 lb (8.6 kg)
