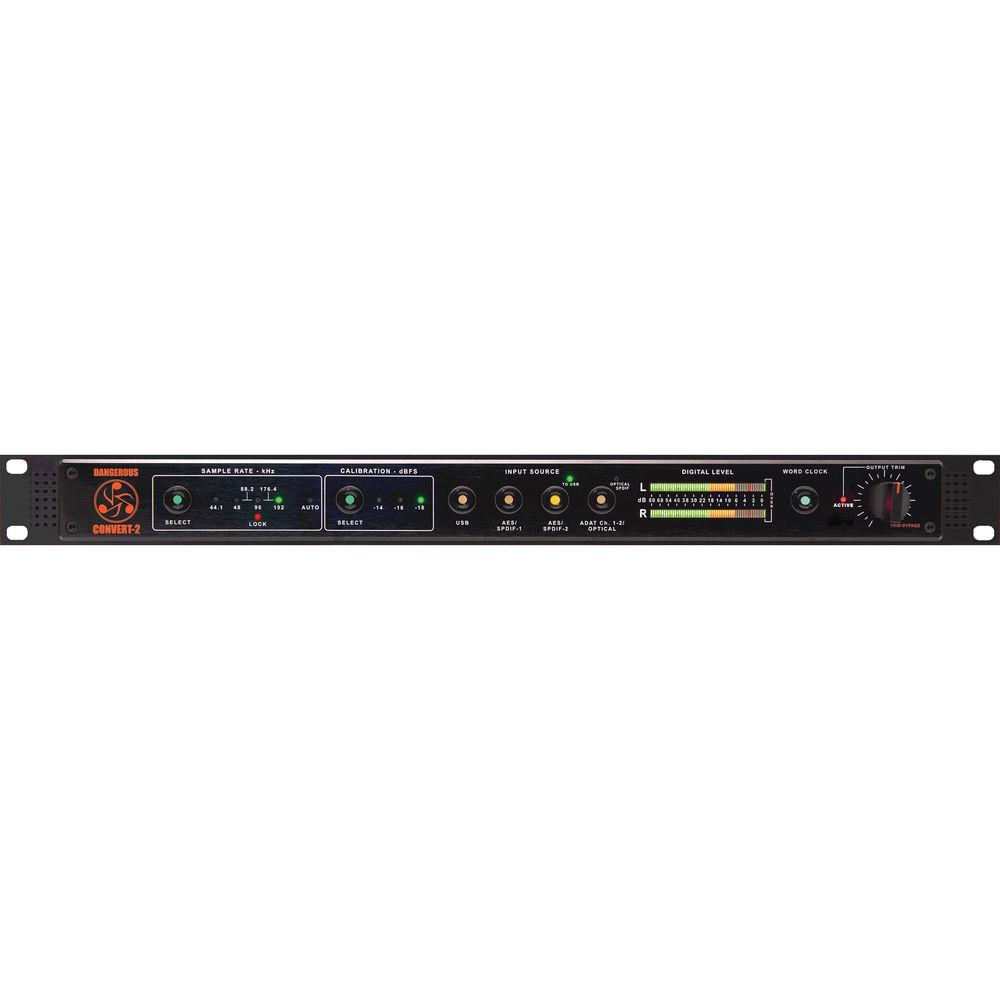

User Manual for Dangerous Music CONVERT-2 - Two-Channel Reference Grade Digital to Analog Converter Click to enlarge the picture
Contents of the user manual for the Dangerous Music CONVERT-2 - Two-Channel Reference
- Product category: AD/DA Converters Dangerous Music
- Brand: Dangerous Music
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dangerous Music AD/DA Converters
 |
User manual for the Dangerous Music CONVERT-2 - Two-Channel Reference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dangerous Music product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dangerous Music user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dangerous Music product will considerably shorten its lifespan!
|
Product description Designed by Chris Muth and Paul Messick for reference-grade monitoring and audiophile listening, the Dangerous Music CONVERT-2 carries on the company's legacy of creating world class converters. From a ground up approach and with a zero-compromise attitude for sound quality, Muth took special care in the analog circuit design and low pass filtering of the 1 RU unit. The digital JetPLL ultra-low jitter digital clocking was refined by Paul Messick to a point of almost zero jitter. The 2 channel converter is appropriate for tracking, mixing, and mastering with a sound signature that has been described as both true and beautiful.

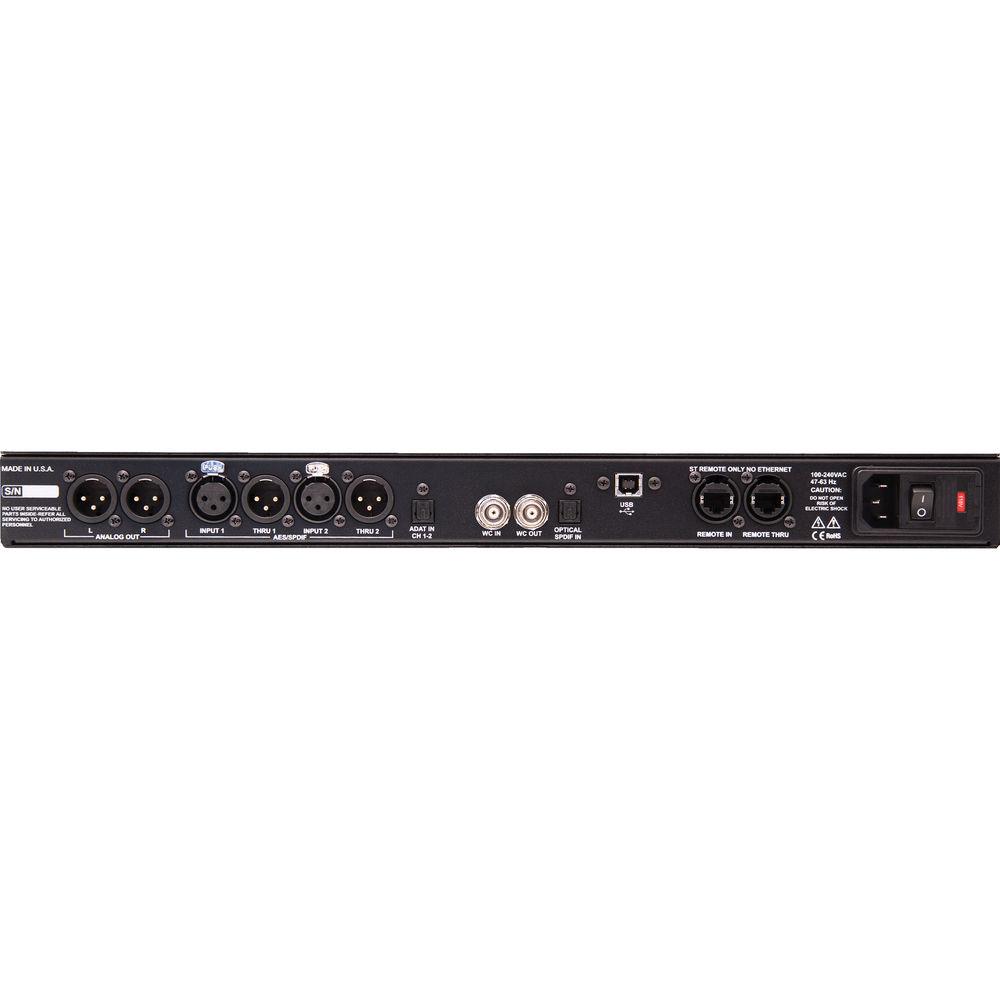

The rear panel of the device features 2x XLR-3M analog output connectors, 2x XLR-3F AES/SPDIF Inputs, 2x XLR-3M AES/SPDIF Thru connectors, 1x ADAT in (Ch 1-2) connector, 1x WC input, 1x WC output, 1x optical S/PDIF input, 1x USB Type-B input, 1x RJ-45 remote connector the Monitor ST, and 1x RJ-45 Remote thru connector for the Monitor ST. - Dedicated Volume Control With Hard-Bypass
- Allows you to bring down the output level on the converter with the turn of a knob or bypass the control when feeding a dedicated monitor controller
- Custom Metering
- Uses a custom-crafted digital meter that provides peak-over-average calibrated to the input reference level with a "3-word-over" indicator to indicate when three consecutive samples have clipped
- Instant Input Calibration
- Offers -14, -16, and -18 dBFS industry standard reference levels that may be recalibrated with the push of a button
- Automatic Sample Rate Detection
- Features an "Auto" button on the front panel that will allow the converter to automatically detect the input signal sample rate
- On the Fly Input Switching
- Allows you to swap between multiple digital inputs on the fly from the front input panel buttons: USB, AES/SPDIF-1, AES/SPDIF-2, ADAT, and Optical S/PDIF (TOSLINK)
- USB Uplink
- Route the CONVERT's AES/SPDIF-2 signal back up through the USB cable and into your DAW session for printing. Additionally, you can easily switch between monitoring the original digital signal or the Uplinked signal, which means you can add finalizing plug-ins to your DAW's return track and quickly flip between the processed and unprocessed stereo signal
- Monitor ST Connectivity
- Allows you to connect the converter to your Monitor ST to bring remote control of unit's digital input switching
In the Box Dangerous Music CONVERT-2 - Two-Channel Reference Grade Digital to Analog Converter Standard IEC Power Cord 1A Slow-Blow Fuse for 240 VAC 90-Day Standard Warranty for Parts and Labor Extended 2-Year Limited Warranty with Registration User Guide PDF 3.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dangerous Music CONVERT-2 - Two-Channel Reference Grade Digital to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDangerous Music CONVERT-2 Specs | Channels | 2 | | I/O | 2 x XLR-3M Analog Out (Left and Right)
2 x XLR-3M AES/SPDIF Thru
2 x XLR-3F AES/SPDIF Inputs
1 x ADAT In (Channels 1-2)
1 x WC In
1 x WC Out
1 x Optical S/PDIF IN
1 x USB Input (Type-B)
1 x RJ-45 Remote In (For ST Remote Only-No Ethernet)
1 x RJ-45 Remote In (For ST Remote Only-No Ethernet) | | Signal to Noise Ratio | A-weighted (20 to 20,000 Hz): < 114 dB
Unweighted (20 to 20,000 Hz): < 113 dB | | Dynamic Range | A-weighted (20 to 20,000 Hz): < 114 dB
Unweighted (20 to 20,000 Hz): < 113 dB | | THD+N | +4 dBu out, 1kHz, unweighted, (20 to 20,000 Hz): < 94.5dB (0.00188%)
+22 dBu out, 1kHz, unweighted, (20 to 20,000 Hz): < 106.5dB (0.00048%) | | Frequency Response | At 96 kHz sample rate:
DC to 20 kHz: +0, -0.25 dB
DC to 30 kHz: +0, -0.5 dB
DC to 40 kHz: +0, -1.0 dB | | Jitter | 16 ps (100 to 40,000 Hz), 18 ps (100Hz to 1MHz) | | Crosstalk Rejection Typically @ 1 kHz | > 114 dBu | | Fuses | Installed: USA 2 amp slow-blow for 120 VAC
Additional Fuse Included: Europe 1 amp slow-blow for 240 VAC | | Rack Space | 1U | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
