Product description Dangerous Music is My Mastering Name Read More The Dangerous Music D-BOX Summing Monitor Mixer and D/A Converter is a 1U rack mountable device designed by mastering engineers to integrate the functions of a summing mixer, a monitoring system with talkback, and a dedicated digital to analog converter.

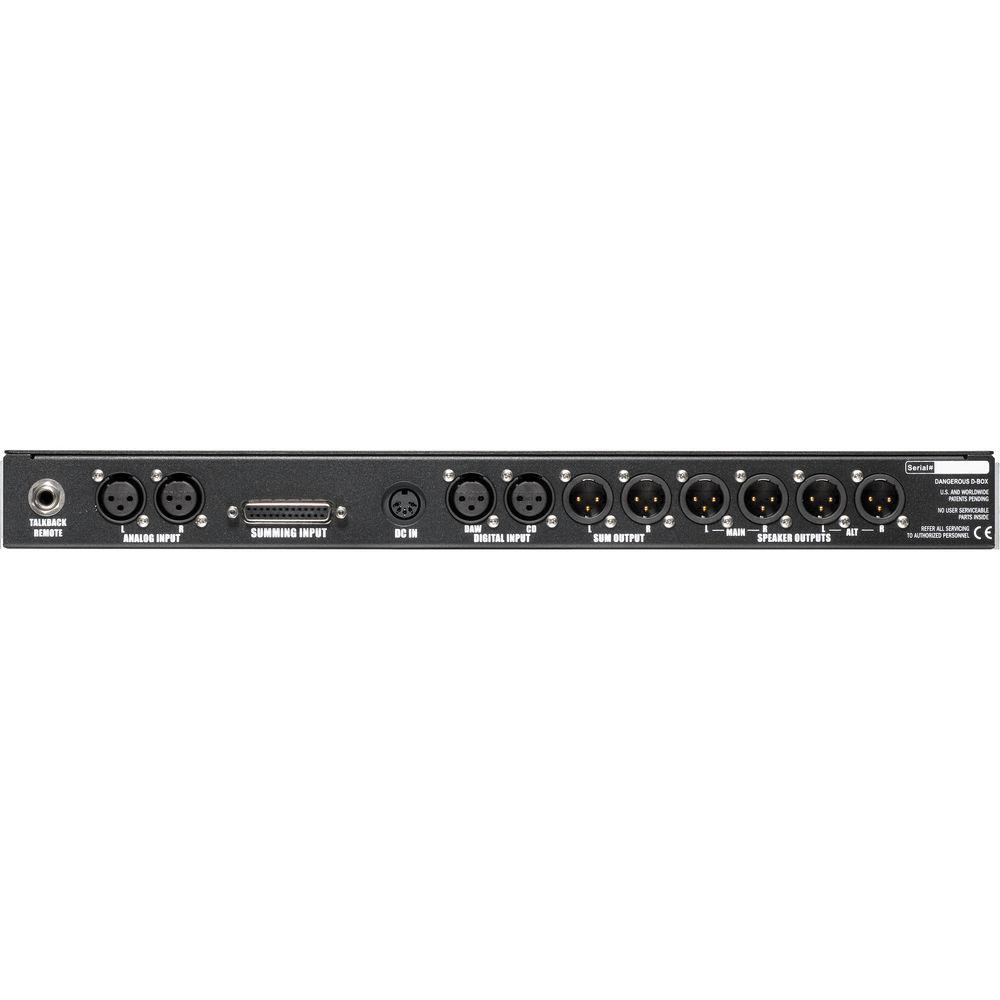

For summing, the back of the unit features a 25-pin D-sub connector for feeding eight channels of analog inputs into the mixer. You adjust the panning position and level of each channel within your Digital to Audio Workstation and then the overall level of the stereo analog sum using the unit's sum output volume control. You can then send the sum through a balanced XLR pair of stereo sum outputs back through your analog to digital converter and into your DAW.

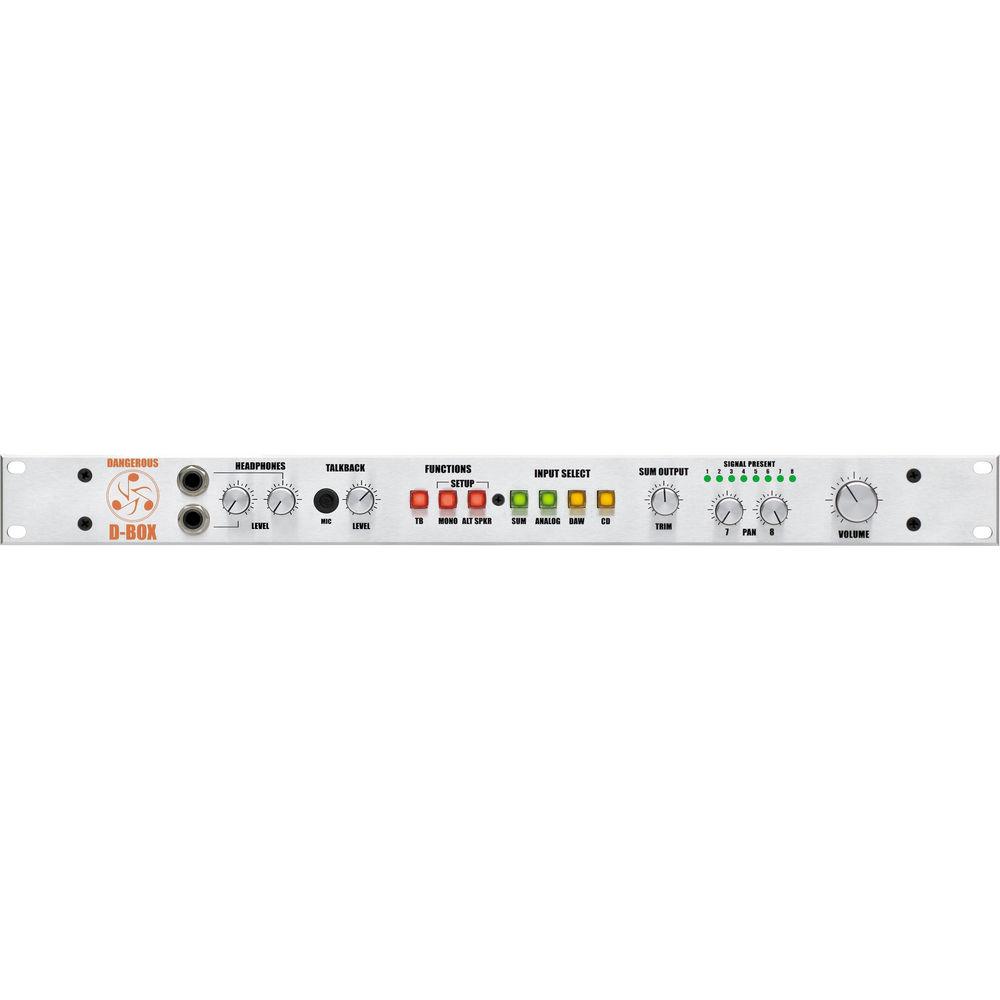

For monitoring, the unit features two stereo pairs of balanced XLR outputs for your monitors and alternate reference speakers. An alt speaker button on the front of the unit allows you to toggle between the two outputs, and an array of input selection buttons allows you to choose from the mixer sum, a stereo pair of analog inputs, or one of two AES/SPDIF lockable digital inputs from a source such as a DAW or CD player.
A mono function button combines the left and right channels in the monitors and a left and right panning knob allows you to reposition the mix in stereophonic space. Eight LEDS on the front of the unit indicate the presence of your incoming signal. A volume control allows you to adjust the overall output signal to your monitors or alternate reference speakers.
The device includes two independent 20W headphone amplifiers with 1/4" TRS jacks and independent volume controls. A talkback microphone, talkback remote jack for footswitch operation, and front panel talk back function button enable you to address the artist through their headphones. A DC input on the back of the unit and external power supply allow the unit to operate at a cooler temperature. The device is meticulously hand-built in the USA to mastering standards. In the Box Dangerous Music D-BOX Summing Monitor Mixer and D/A Converter Limited 90-Day Warranty, Extendable to 2-Years with Online Registration User Guide PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dangerous Music D-BOX Summing Monitor Mixer and D A Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDangerous Music D-BOX Specs | Frequency Response | Summing section: 1 to 100,000 Hz within 0.1 dB
Monitoring section: 1 to 100,000 Hz within 0.1 dB | | THD + N | Summing section: <0.003%
Monitoring section: <0.002% | | Cross Talk | Summing section: < -97 dB
Monitoring section: <-101 dB | | Noise | Summing section: < -89 dBu total energy in audio band
Monitoring section: < -92 dBu total energy in audio band | | Maximum Input | Summing section: +27 dBu
Monitoring section: +26 dBu | | | | Lock | Locks to standard AES or SPDIF signals between 32,000 and 100,000 Hz | | Cross Talk | < -101 dB | | Noise | < -92 dBu | | THD + N | 0.005% | | Nominal Operating Level | +4 dBu | | Input Impedance | 25kΩ | | Output Impedance | 50Ω | | Power Consumption | 25W | | Rack Size | 1U | | Dimensions (H x W x D) | 1.75 x 19.0 x 9.5" (4.45 x 48.3 x 24.1 cm) | | Weight | 10.5 lb (4.76 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 21.8 x 16.9 x 6.8" |
