User Manual for Dangerous Music LIAISON Signal Routing Matrix Click to enlarge the picture
Contents of the user manual for the Dangerous Music LIAISON Signal Routing Matrix
- Product category: Analog Recording Mixers Dangerous Music
- Brand: Dangerous Music
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dangerous Music Analog Recording Mixers
 |
User manual for the Dangerous Music LIAISON Signal Routing Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dangerous Music product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dangerous Music user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dangerous Music product will considerably shorten its lifespan!
|
Product description The Dangerous Music LIAISON Signal Routing Matrix is a 2U rack mountable routing matrix designed by mastering engineers to connect up to six pieces of outboard equipment directly to your system. Additional pieces of equipment can be added to the signal path by daisy chaining, utilizing a patch bay, or integrating with a Dangerous Master unit.

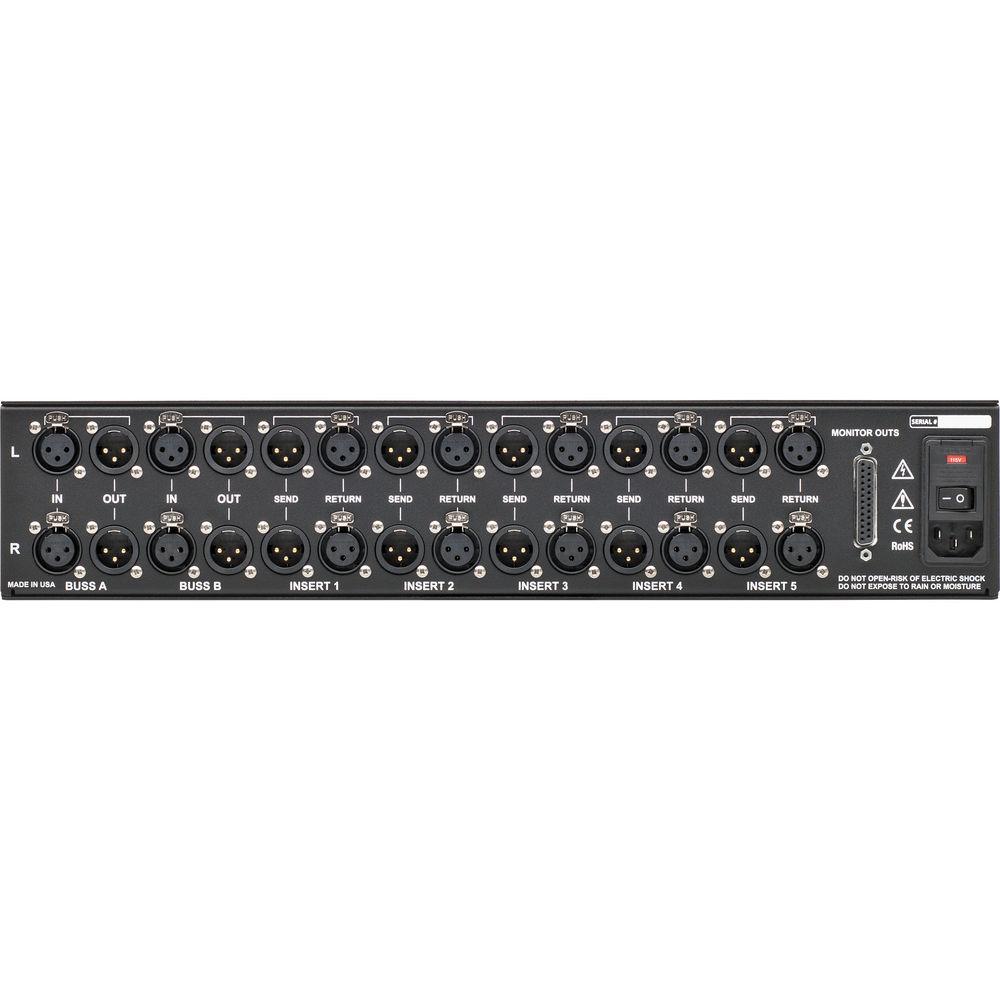

The unit features balanced left and right XLR input and output pairs for six routing insert sends/returns and two busses, A and B. A 25-pin D-sub connector provides interfacing to two stereo pairs of external outputs for monitoring the Busses. In standalone mode you can monitor Buss A input for a preprocessing mix and Buss B output as a post processing mix. A switchable 120/240VAC outlet provides power to the unit.

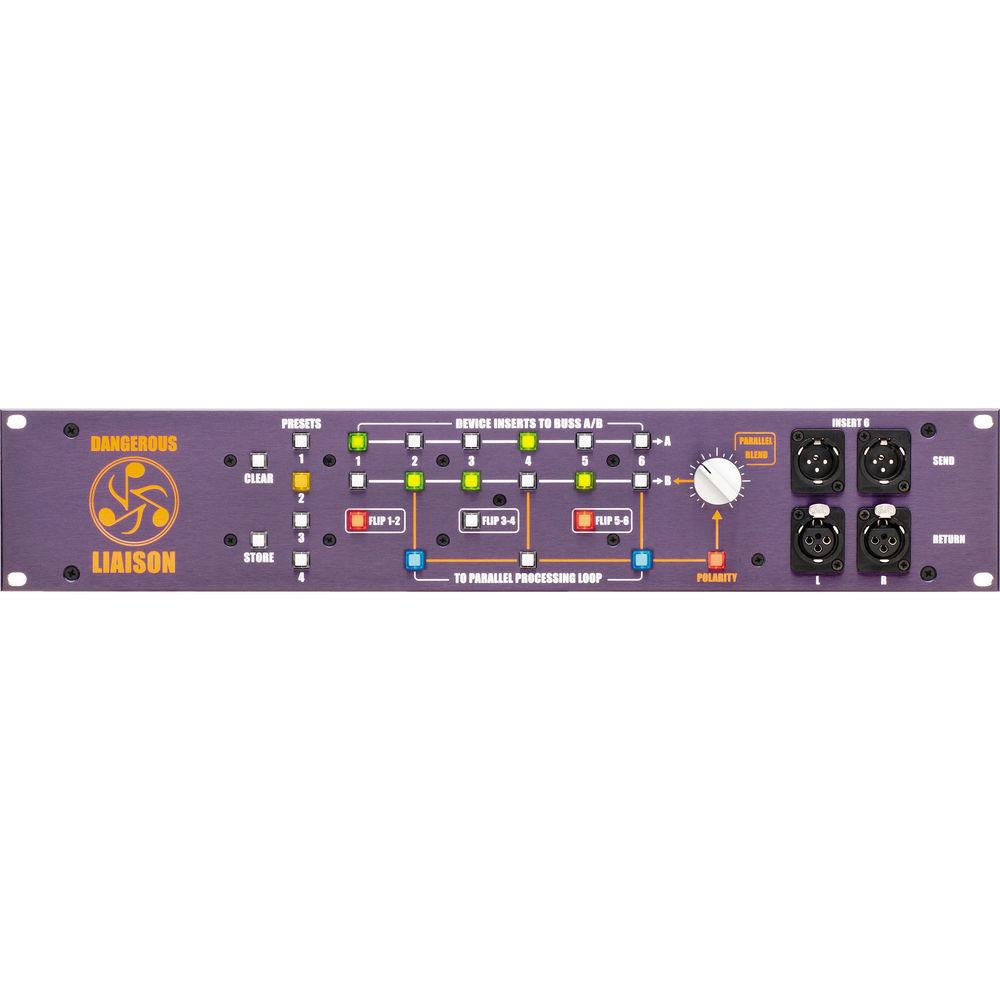

The device's control interface enables you to instantaneously insert your outboard gear into the signal chain on either Buss A or Buss B with the push of a button. Deselecting the button bypasses the external gear on that insert from the signal chain. You can reverse the order of outboard equipment on each pair of sends by pressing the flip 1-2, flip 3-4, or flip 5-6 insert buttons. All of your configurations can be stored, recalled, and cleared as presets by utilizing the four preset buttons and clear and store buttons on the front panel of the device.
The unit includes a parallel processing buss on inserts 2, 4, and 6. Pressing any of the three parallel processing loop buttons blends the original unprocessed signal with the processed insert signal. A continuously variable potentiometer knob allows you to control the blend of unprocessed and parallel processing. A polarity button allows you to flip the signal of the parallel processing buss 180° out of phase. The device is hand-built in the USA to mastering standards. UPC: 628586497030 In the Box Dangerous Music LIAISON Signal Routing Matrix Power Cable Limited 90-Day Warranty, Extendable to 2-Years with Online Registration User Guide PDF 9.1mbfwwewvqwewyqsyuquc Table of Contents
|
Upload User Manual
Have you got an user manual for the Dangerous Music LIAISON Signal Routing Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDangerous Music LIAISON Specs | Frequency Response | Passive section: +0, -0.1 dB from 10 to 100,000 Hz
Active section: +0, -0.1 dB from 10 to 100,000 Hz | | Maximum Level | > +28 dBu | | Noise Floor | < -94.5 dBu from 22 to 22,000 Hz bandwidth | | THD + Noise | < 0.002% | | IMD | < 0.003% | | Crosstalk Rejection Typically @ 1 kHz | Passive section: > 124 dB
Active Section: > 113 dB | | Input Impedance | 20 kΩ | | Output Impedance | 20 Ω | | Fuses | USA: 500 mA fast blow for 120 V
Europe: 250 mA fast blow for 240 V | | Rack Size | 2U | | Dimensions (H x W x D) | 1.75 x 19 x 12" (4.45 x 48.3 x 30.5 cm) | | Weight | 12.5 lb (5.67 kg) | | | | Package Weight | 19.45 lb | | Box Dimensions (LxWxH) | 22.2 x 19.0 x 8.4" |
