User Manual for Dangerous Music MASTER Summing Monitor Analog Mixer Click to enlarge the picture
Contents of the user manual for the Dangerous Music MASTER Summing Monitor Analog
- Product category: Analog Recording Mixers Dangerous Music
- Brand: Dangerous Music
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dangerous Music Analog Recording Mixers
 |
User manual for the Dangerous Music MASTER Summing Monitor Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dangerous Music product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dangerous Music user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dangerous Music product will considerably shorten its lifespan!
|

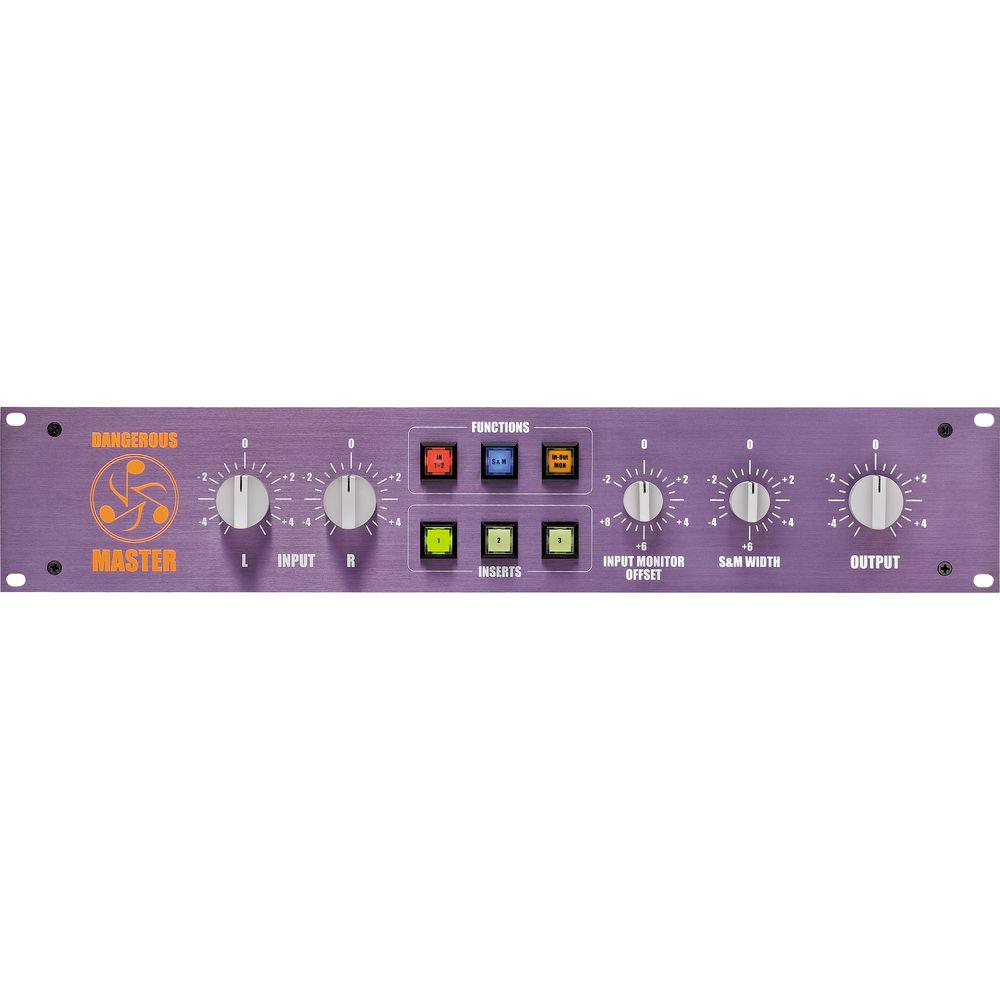

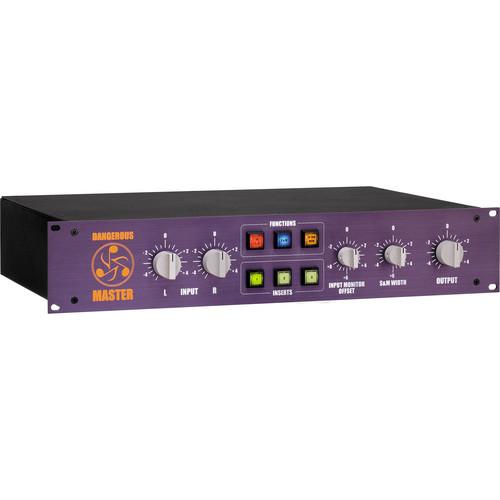

Product description The Dangerous Music MASTER Summing Monitor Analog Mixer is a 2U rack mountable signal processor designed by mastering engineers to provide insert loops, level offset, stereo image width control, and sum and difference processing so you can finish your mixes. For inputs, the unit features two stereo left and right XLR analog input pairs for connecting to a digital to analog converter and to another source such as a patch bay or tape machine. An IN 1-2 button on the front panel of the device switches between the two sources. Left and right stepped attenuator input gain knobs allow you to set the level and balance for the incoming signal.
For processing, the unit features three stereo left and right pairs of insert sends and returns for connecting to your outboard processors such as a limiter, parametric equalizer, or compressor. Multiple processing units can be connected to the same insert by ganging them in series or by utilizing a patch bay. Pressing the insert buttons 1, 2, or 3 on the front panel of the unit will loop in the outboard processing equipment connected to the respective insert.
By pressing the S&M function button on the front panel of the device, the insert loop can operate in sum and minus mode. Sum and minus mode enables you to change the center pan information of a track without altering the sides. This is useful for changing the emphasis of different parts of the arrangement within the stereo field. A stepped attenuator stereo width control knob allows you to narrow or widen the stereo image.

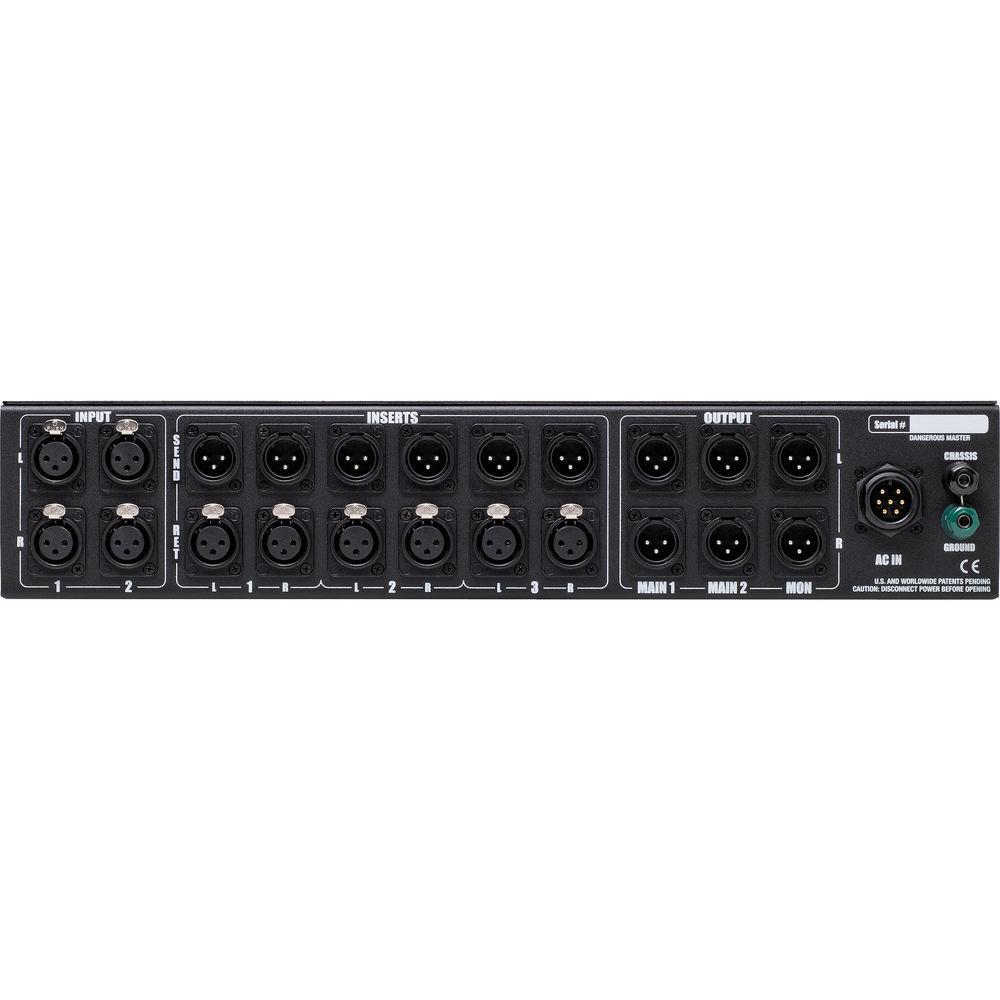

The back of the unit features two stereo left and right XLR pairs for main outputs 1 and 2, as well as a third pair for the monitor output. When pressed, an In-Out Mon button sends either the incoming pre-processed or outgoing post-processed signal to the monitor pair. An Input Monitor Offset level knob allows you to match the incoming signal level to the outgoing signal level so you can compare the effect of the outboard processing at the same output level. The overall output level of the device is controlled by a stepped attenuator knob. This allows you to precisely adjust the appropriate level for feeding the signal back into your analog to digital converter for recording. The device is hand-built in the USA to mastering standards. UPC: 628586496903 In the Box Dangerous Music MASTER Summing Monitor Analog Mixer Limited 90-Day Warranty, Extendable to 2-Years with Online Registration User Guide PDF 725.4kbtqaaqdyfuawaywwxvfvdczftfsbzyqvf Table of Contents
|
Upload User Manual
Have you got an user manual for the Dangerous Music MASTER Summing Monitor Analog Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDangerous Music MASTER Specs | I/O | 2 L/R Pairs of Inputs: 4 x balanced 3-pin female XLR
3 L/R Pairs of Outputs: 6 x balanced 3-pin male XLR
3 L/R Pairs of Inserts: 12 x balanced 3-pin XLR (6 x male and 6 x female) | | Nominal Operating Level | +4 dBu | | Controls | Input and Output: ±5 dB in 0.5 dB steps | | Monitor | Input Offset: -2 to +8 dB in 0.5 dB steps | | Width | Control: -4 to +6 dB in 0.5 dB steps | | Accuracy | Attenuator: > 0.01 dB | | THD + Noise | < 0.0018% band limited to 22,000 Hz | | IMD | 60 Hz at 4:1 Ratio: <0.0025% | | Crosstalk Rejection Typically @ 1 kHz | > 111 dB | | Headroom | > +27 dBu | | Frequency Response | Within 0.1 dB between 10 to 100,000 Hz | | Noise Floor | < -92 dB | | Power Consumption | 40 W | | Rack Size | 2U | | Dimensions (H x W x D) | 3.5 x 19 x 12" (8.9 x 48 x 31 cm) | | Weight | 21.5 lb (9.75 kg) | | | | Package Weight | 24.3 lb | | Box Dimensions (LxWxH) | 22.2 x 17.2 x 10.5" |
