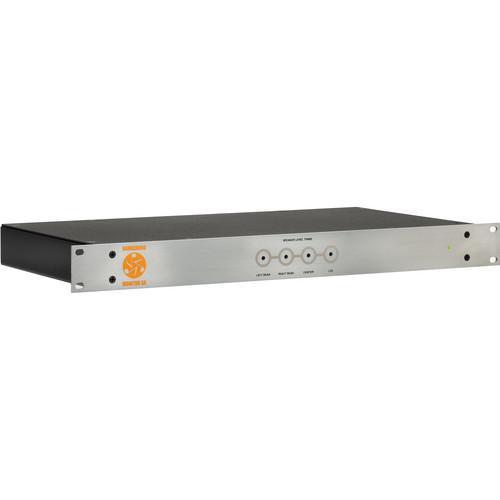

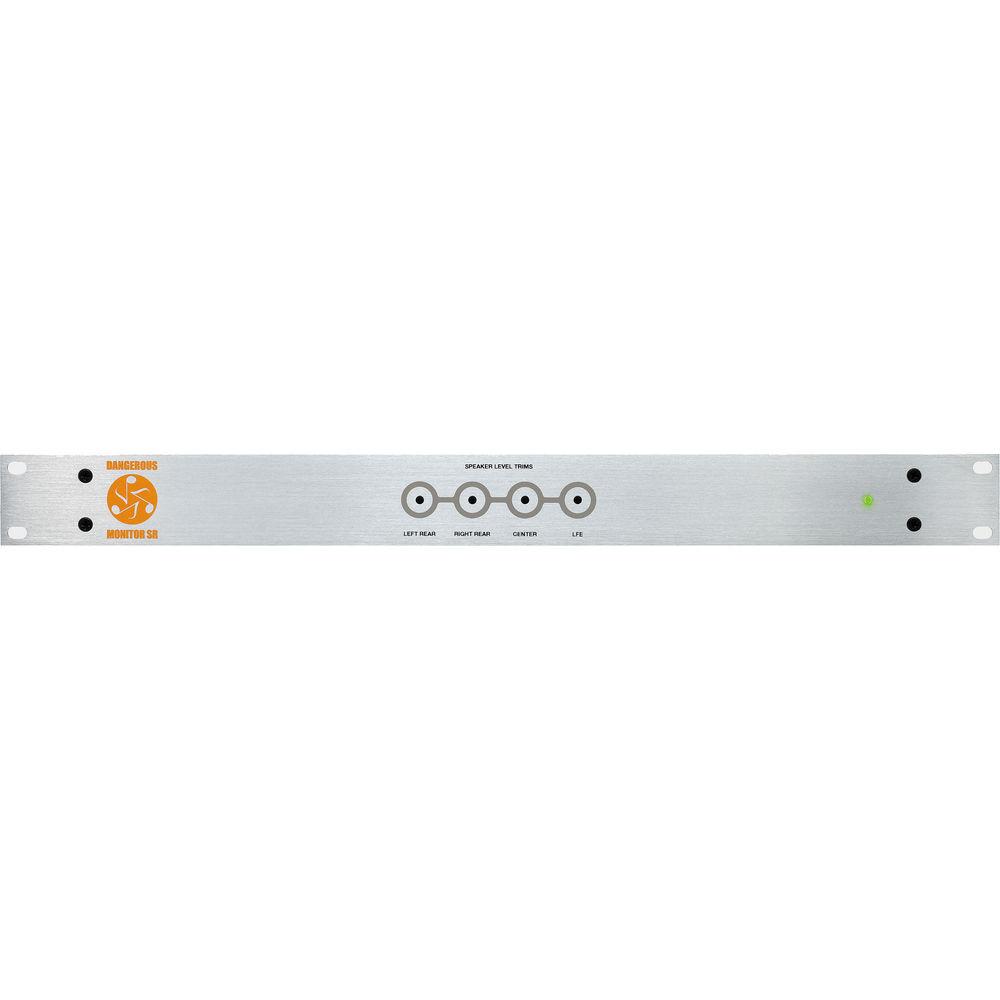

Product description The Dangerous Music MONITOR SR is a 1U rack mountable device designed by mastering engineers to expand the monitoring functionality of the Dangerous Music MONITOR ST. The unit enables 5.1 surround sound monitoring. Additional MONITOR SR units can be connected and configured for surround sound formats such as 7.1, 10.2, or greater. For I/O, the unit has 25-pin D-Sub connectors for Input 1, Input 2, Input 3, Input4, output Speaker 1, output Speaker 2, output Speaker 3/Sub, and meter feed. The SR unit connects to the MONITOR ST via two included ribbon cables. Both devices can be controlled using the MONITOR ST remote control over Cat-5 cable. The device is hand built in the USA with mastering grade components to exacting standards. - Analog Stepped-Attenuator Volume Control
- Provides accurate and repeatable volume adjustments without the loss of imaging found in digitally controlled amplifier and voltage controlled amplifier circuit designs
- 4 Input Sources
- Allows you to switch between your DAW outputs, DVD player, CD player, tape machines, or other sources
- 3 Speaker Outputs
- Switch between up to 3 sets of monitors
- Programmable Gain Offsets
- Adjust and store level offsets for different sources
- Input Level Compensation
- Instantly adjust for -10dBV and +4dBu sources when working with consumer devices
- Continuously Variable Level Offset for Input 4
- Compensates for commercial CD levels so you can perform true A/B comparisons
- Programmable Input Gain Offsets
- Fine-tune and store level offsets to achieve apparent equal loudness on all control room speakers with trims for left and right rear, center, and LFE
- Selectable Subwoofer Filtering
- Selects and stores different subwoofer filtering options for each set of speakers
- Comprehensive Speaker Mute, Dim, and Solo
- Mutes, dims and solos speakers in any combination
- Onboard Cue Amp
- Provides 20W of headphone monitoring
- Flexible Stereo Cue System
- Offers main and auxiliary inputs for cueing your mix
- Selectable Source Output
- Sends source signals to external devices such as a level meter
- Talkback System with Dual Control and Dedicated Slate Output
- Gives the producer his or her own talkback button and lets you send the slate output to a powered speaker for open-air talkback
- DC Coupled
- Built without transformers that would color or filter caps that would smear the stereo image of your sound
- Ground and Hum
- Includes a ground jumper with adjustable position for removing the buzz sometimes caused by grounding issues
UPC: 628586496989 In the Box Dangerous Music MONITOR SR 2 x Ribbon Cables to link the SR and ST Together 1' Shielded CAT-5 Cable for Remote Link External Power Supply and Cable Limited 90-Day Warranty, Expandable to 2 Years with Online Registration User Guide PDF 4.2mbxwufxcsuvb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dangerous Music MONITOR SR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

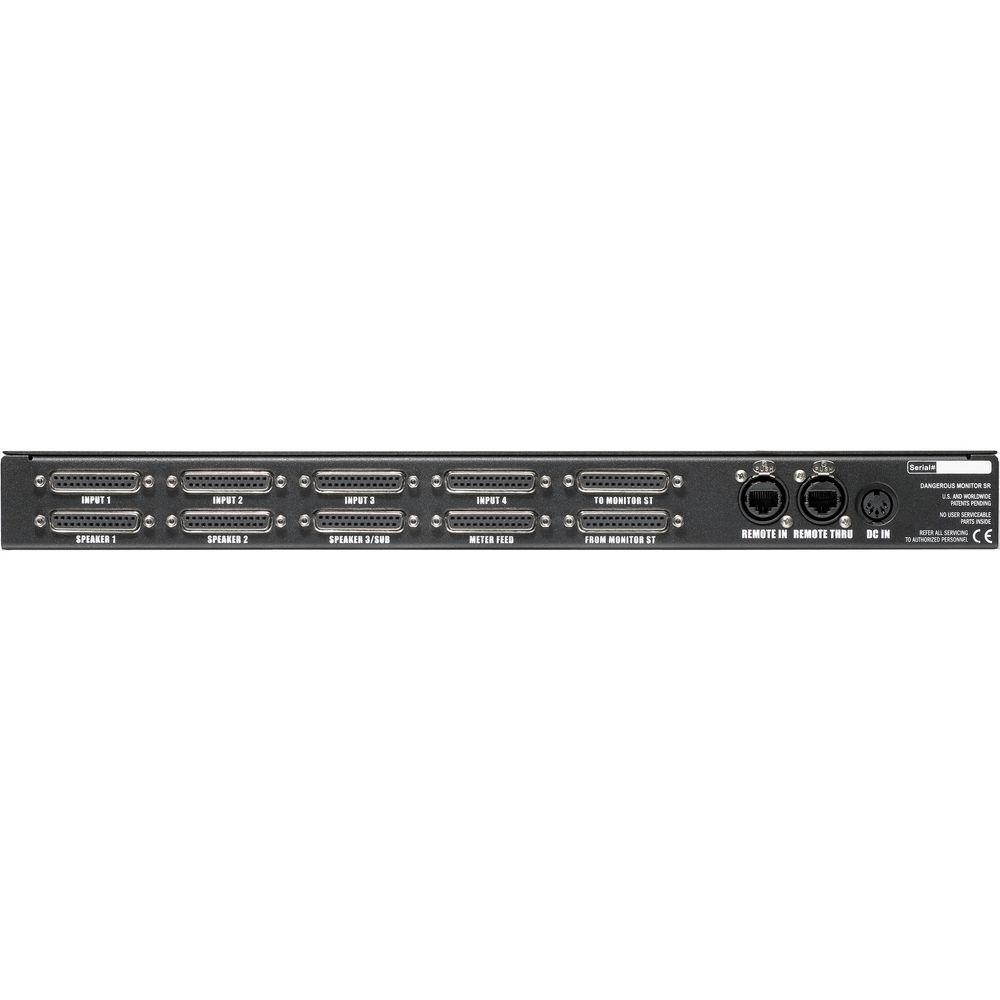

Technical parametersDangerous Music MONITOR SR Specs | Connections | Input 1: 1 x 25-pin D-Sub connector
Input 2: 1 x 25-pin D-Sub connector
Input 3: 1 x 25-pin D-Sub connector
Input 4: 1 x 25-pin D-Sub connector
Speaker 1: 1 x 25-pin D-Sub connector
Speaker 2: 1 x 25-pin D-Sub connector
Speaker 3/Sub: 1 x 25-pin D-Sub connector
Meter Feed: 1 x 25-pin D-Sub connector
To MONITOR ST: 1 x 25-pin D-Sub connector
From MONITOR ST: 1 x 25-pin D-Sub connector
Remote In: 1 x RJ45 port
Remote Thru: 1 x RJ45 port | | Accuracy | Gain Tracking: better than 0.05dB for 6 channels | | THD + N | 0.002% | | IMD | 0.003% | | Frequency Response | 1 to 100,000 Hz at -0.1 dB | | Crosstalk Rejection Typically @ 1 kHz | >96 dB | | Nominal Input Level | +4dBu or -10dBV | | Crossover | -3dB at 57 Hz
18 dB/octave modified Butterworth/Chebyshev curve | | Headphone Amp | 0.002% THD+N | | Headroom | +25 dBu to main outputs | | Dimensions (H x W x D) | 1.75 x 19.00 x 9.50" (4.45 x 48.30 x 24.10 cm) | | Weight | 10.5 lb (4.76 kg) | | | | Package Weight | 14.2 lb | | Box Dimensions (LxWxH) | 21.7 x 16.9 x 6.6" |
