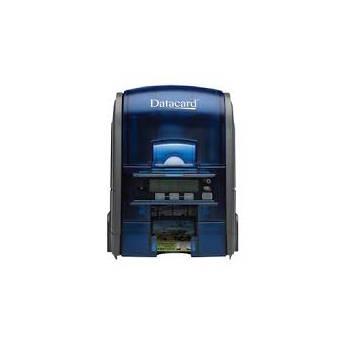

User Manual for DATACARD EZ-ID Card System with Magnetic Stripe Encoder Click to enlarge the picture
Contents of the user manual for the DATACARD EZ-ID Card System with Magnetic
- Product category: ID Card Printers DATACARD
- Brand: DATACARD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATACARD ID Card Printers
|
User manual for the DATACARD EZ-ID Card System with Magnetic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATACARD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATACARD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATACARD product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The EZ-ID Card System from DATACARD includes the SD160 Single-Sided Card Printer, a TruCredential Express Edition Software License for Single User, a YMCKFT Color Ribbon for SD160 Card Printer, and a pack of 250 CR-80 White PVC Graphics Cards. - SD160 Single-Sided Card Printer with ISO 7811 Three-Track Magnetic Stripe Encoder The SD160 Single-Sided Card Printer with ISO 7811 Three-Track Magnetic Stripe Encoder from DATACARD is a two-sided printer featuring dye sublimation and resin thermal transfer technology to produce 300 dpi ID cards quickly. It works with ID-1 and CR-80 cards and supports edge-to-edge printing. This printer is also capable of single-sided prints in color at a rate of 150 cards per hour and in monochrome at up to 500 cards per hour.
In addition to fast printing, the SD160 features a front LCD panel for viewing the printer's current status. There are also soft-touch controls along the screen for adjusting settings quickly and easily. The SD160 features an automatic 100 card feeder with a 25 card output tray for media handling. This printer also is capable of encoding magnetic stripes on the back of select cards. Additionally, the printer has standard USB 2.0 connectivity. - One-sided, edge-to-edge printing in full color or monochrome
- Can print alphanumeric text, logos, and digitized signatures along with a variety of 1D / 2D barcode images
- 128MB of standard printer memory
- Works with PVC cards with a glossy laminate surface from 10-37 mil thick
- Front exception card slot available
- Utilizes Windows XPS-based technology for high-fidelity printing
- LCD panel has printer status messages display and features multiple backlight settings
- ID Works Intro identification software included
- TruCredential Express Edition Software License for Single User The TruCredential Software License from Datacard allows a single user to use the TruCredential Express Edition Software, an entry-level ID card designing and printing software. It provides basic photo capture and data import, credential designer, and drag-and-drop workflows software functionalities for a single-user environment. It also provides the core set of tools needed to design cards and data capture forms, enter and retrieve data, capture images and produce cards.
- Credential Design
-
- Front and back card design, pre-designed card templates
- Variable/static text field, photo graph field, variable/static graphic field, date field
- QR code, magnetic stripe code, bar code support
- Workflow
-
- Text field, static text field, static graphic field, date field, print count field
- Auto-sequence field, check box field, list field
- Text field mask, field option like read only, hidden, mandatory, and searchable
- Database & Data Import
-
- Import data from ASCII file
- Text field, Static text field, Static graphic field, date field, print count field
- Photo Capture
-
- File input, TWAIN, Microsoft Video for Windows
- Languages Support
-
- English, French, German, Japanese, Portuguese (Brazilian), Simplified Chinese, Spanish
- YMCKFT Color Ribbon for SD160 Card Printer Produce another 300 printers with your SD160 card printer by picking up this YMCKFT Color Ribbon from DATACARD. It also comes with an adhesive cleaning sleeve and isopropanol cleaning card to make sure your printer is running smoothly when you put in the new ink ribbon.
In the Box Bundle Items SD160 Single-Sided Card Printer with ISO 7811 Three-Track Magnetic Stripe Encoder vdrdwuctxatsffrytqdusfdacsdyzrdubsdrfb TruCredential Express Edition Software License for Single User vdrdwuctxatsffrytqdusfdacsdyzrdubsdrfb YMCKFT Color Ribbon for SD160 Card Printer - Isopropanol Cleaning Card
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the DATACARD EZ-ID Card System with Magnetic Stripe Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SD160 Single-Sided Card Printer with ISO 7811 Three-Track Magnetic Stripe Encoder
| | | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi, 256 shades per color panel | | Color Spaces Supported | sRGB | | | | Print Speed | Full Color, Single-Sided: 150 cards per hour
Monochrome, Single-Sided: 500 cards per hour | | Borderless Printing | Yes, edge-to-edge | | Duplex Printing | No | | Encoding | ISO 7811 three-track magnetic stripe (high- and low-coercivity) | | | | Card Sizes | ISO ID-1 / CR-80: 3.370 x 2.125" (85.6 x 54.0 mm) | | Card Type | PVC with glossy laminate surface
Select key fob cards
Datacard StickiCard adhesive-backed plastic cards | | Media Thickness | 10-37 mil (0.25-0.94 mm) | | Media Capacity | Automatic Feed, Input: 100 cards
Automatic Feed, Output: 25 cards | | | | Computer Interface | USB 2.0, bidirectional | | Memory | 128 MB | | System & Software Requirements | Windows 7, 8, XP SP3, and 2000 | | | | Status Display | Yes, LCD panel | | Front Panel Controls | Soft-touch controls | | Power Requirements | 100-120 VAC, 50/60 Hz | | Certifications | cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC | | Environmental Compliance | Biodegradable supply cores with EcoPure additive
Recyclable enclosure plastics
Recyclable packaging | | Operating Conditions | Temperature: 60 to 95°F (15 to 35°C)
Humidity: 20 to 80%, non-condensing | | Storage Conditions | Temperature: 5 to 140°F (-15 to 60°C)
Humidity: 10 to 90%, non-condensing | | Dimensions (WxHxD) | 15.4 x 6.9 x 8.8" / 39.1 x 17.5 x 22.4 cm | | Weight | 8.1 lb / 3.7 kg | - YMCKFT Color Ribbon for SD160 Card Printer
| Type | Dye sublimation | | Color | YMCKFT | | Yield | 300 prints | | | | Box Dimensions (LxWxH) | 5.0 x 3.1 x 3.0" | - TruCredential Express Edition Software License for Single User
