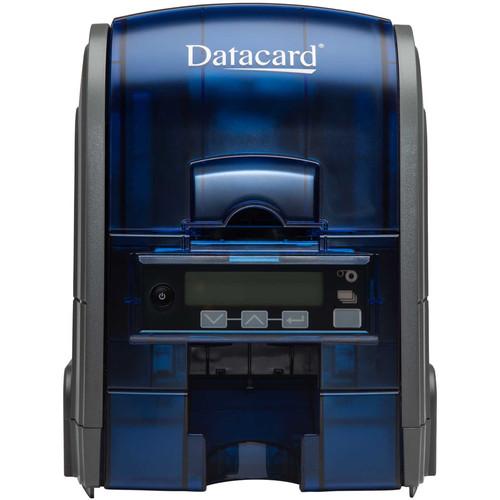

User Manual for DATACARD SD160 Single-Sided Card Printer with JIS Type II Single-Track Magnetic Stripe Encoder Click to enlarge the picture
Contents of the user manual for the DATACARD SD160 Single-Sided Card Printer with
- Product category: ID Card Printers DATACARD
- Brand: DATACARD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATACARD ID Card Printers
|
User manual for the DATACARD SD160 Single-Sided Card Printer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATACARD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATACARD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATACARD product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The SD160 Single-Sided Card Printer with JIS Type II Single-Track Magnetic Stripe Encoder from DATACARD is a two-sided printer featuring dye sublimation and resin thermal transfer technology to produce 300 dpi ID cards quickly. It works with ID-1 and CR-80 cards and supports edge-to-edge printing. This printer is also capable of single-sided prints in color at a rate of 150 cards per hour and in monochrome at up to 500 cards per hour.
In addition to fast printing, the SD160 features a front LCD panel for viewing the printer's current status. There are also soft-touch controls along the screen for adjusting settings quickly and easily. The SD160 features an automatic 100 card feeder with a 25 card output tray for media handling. This printer also is capable of encoding magnetic stripes on the back of select cards. Additionally, the printer has standard USB 2.0 connectivity. - One-sided, edge-to-edge printing in full color or monochrome
- Can print alphanumeric text, logos, and digitized signatures along with a variety of 1D / 2D barcode images
- 128MB of standard printer memory
- Works with PVC cards with a glossy laminate surface from 10-37 mil thick
- Front exception card slot available
- Utilizes Windows XPS-based technology for high-fidelity printing
- LCD panel has printer status messages display and features multiple backlight settings
- ID Works Intro identification software included
In the Box DATACARD SD160 Single-Sided Card Printer with JIS Type II Single-Track Magnetic Stripe Encoder 5 x Cleaning Swabs Cleaning Roller Spindle USB Cable Power Supply Power Cord Driver CD Software CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATACARD SD160 Single-Sided Card Printer with JIS Type II Single-Track Magnetic Stripe Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATACARD SD160 Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi, 256 shades per color panel | | Color Spaces Supported | sRGB | | | | Print Speed | Full Color, Single-Sided: 150 cards per hour
Monochrome, Single-Sided: 500 cards per hour | | Borderless Printing | Yes, edge-to-edge | | Duplex Printing | No | | Encoding | JIS Type II single-track magnetic stripe | | | | Card Sizes | ISO ID-1 / CR-80: 3.370 x 2.125" (85.6 x 54.0 mm) | | Card Type | PVC with glossy laminate surface
Select key fob cards
Datacard StickiCard adhesive-backed plastic cards | | Media Thickness | 10-37 mil (0.25-0.94 mm) | | Media Capacity | Automatic Feed, Input: 100 cards
Automatic Feed, Output: 25 cards | | | | Computer Interface | USB 2.0, bidirectional | | Memory | 128 MB | | System & Software Requirements | Windows 7, 8, XP SP3, and 2000 | | | | Status Display | Yes, LCD panel | | Front Panel Controls | Soft-touch controls | | Power Requirements | 100-120 VAC, 50/60 Hz | | Certifications | cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC | | Environmental Compliance | Biodegradable supply cores with EcoPure additive
Recyclable enclosure plastics
Recyclable packaging | | Operating Conditions | Temperature: 60 to 95°F (15 to 35°C)
Humidity: 20 to 80%, non-condensing | | Storage Conditions | Temperature: 5 to 140°F (-15 to 60°C)
Humidity: 10 to 90%, non-condensing | | Dimensions (WxHxD) | 15.4 x 6.9 x 8.8" / 39.1 x 17.5 x 22.4 cm | | Weight | 8.1 lb / 3.7 kg |
