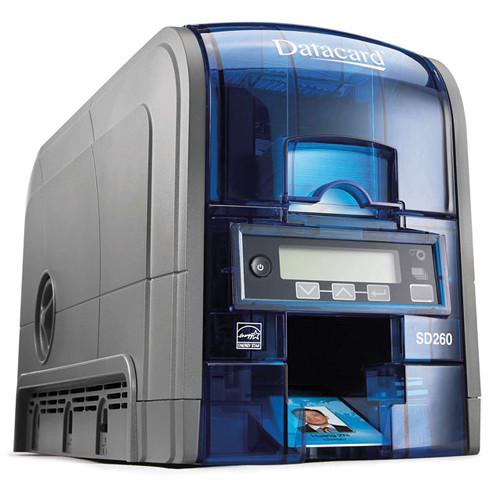

User Manual for DATACARD SD260 ID Card Printer with ISO Magnetic Stripe Encoder and Automatic Feed Hopper Click to enlarge the picture
Contents of the user manual for the DATACARD SD260 ID Card Printer with
- Product category: ID Card Printers DATACARD
- Brand: DATACARD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATACARD ID Card Printers
|
User manual for the DATACARD SD260 ID Card Printer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATACARD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATACARD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATACARD product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The SD260 ID Card Printer with ISO Magnetic Stripe Encoder and Automatic Feed Hopper from DATACARD is a two-sided printer featuring dye sublimation and resin thermal transfer technology to produce 300 x 1200 dpi ID cards quickly. It works with ID-1 and CR-80 cards and supports edge-to-edge printing. This printer is also capable of single-sided prints in color at a rate of 200 cards per hour and monochrome at up to 830 cards per hour.
In addition to fast printing, the SD260 features a front LCD panel for viewing the printer's current status. There are also soft-touch controls along the screen for adjusting settings quickly and easily. The SD260 features an automatic 100 card feeder with a 25 card output tray for media handling. This printer also is capable of encoding ISO magnetic stripes on the back of select cards. Additionally, the printer has both USB 2.0 and Ethernet connectivity. - High-resolution printing options allow users to create bright 300 x 600 dpi and sharp 300 x 1200 dpi IDs
- One-sided, edge-to-edge printing in full color or monochrome with manual two-sided printing option
- Can print alphanumeric text, logos, and digitized signatures along with a variety of 1D / 2D barcode images
- Rewrite card technology allows users to update certain cards without requiring a brand new card
- TrueMatch printing technology ensures consistent, accurate color over time
- TruePick anti-jam card handling accurately handles cards of varying thickness with no adjustment necessary
- Printer pooling / sharing is available
- UV printing capability allows users to create additional security features for their ID cards
- Can conform to the sRGB standard and features color management options
- 128MB of standard printer memory
- Works with PVC card with a glossy laminate surface from 10-37 mil thick
- Front exception card slot available
- Split-panel YMCKT feature for dual-sided printing, adjustable color controls, and preset area to block printing on magnetic stripe
- Utilizes Windows XPS-based technology for high-fidelity printing
- LCD panel has printer status messages display and features multiple backlight settings
- ID Works Intro identification software included
In the Box DATACARD SD260 ID Card Printer with ISO Magnetic Stripe Encoder and Automatic Feed Hopper Cleaning Pen Cleaning Roller Spindle USB Cable Power Supply Power Cord Driver CD Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATACARD SD260 ID Card Printer with ISO Magnetic Stripe Encoder and Automatic Feed Hopper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATACARD SD260 Specs | | | Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 x 1200 dpi | | Color Spaces Supported | sRGB | | | | Print Speed | Full Color, Single-Sided: 200 cards per hour
Monochrome, Single-Sided: 830 cards per hour | | Borderless Printing | Yes, edge-to-edge | | Duplex Printing | No | | Encoding | Magnetic Stripe: ISO 7811 three-track option (high and low-coercivity) | | | | Card Sizes | ISO ID-1 / CR-80: 3.370 x 2.125" / 85.6 x 54.0 mm | | Card Type | PVC with glossy laminate surface
Select key fob cards
Datacard Stickicard adhesive-backed plastic cards | | Media Thickness | 10-37 mil (0.25-0.94 mm) | | Media Capacity | Automatic Feed, Input: 100 cards
Automatic Feed, Output: 25 cards | | | | Computer Interface | USB 2.0, bidirectional
Ethernet 10Base-T / 100Base-TX with activity light | | Memory | 128 MB | | System & Software Requirements | Windows XP SP3 (32-bit), 7 (32/64-bit), 8 (32/64-bit), 2003 R2 Server (32-bit), 2008 Server (64-bit), 2008 R2 Server (64-bit), 2012 Server (64-bit) | | | | Status Display | Yes, LCD panel | | Front Panel Controls | Soft-touch controls | | Certifications | cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC | | Environmental Compliance | Biodegradable supply cores with EcoPure additive
Recyclable enclosure plastics
Recyclable packaging | | Operating Conditions | Temperature: 60 to 95°F / 15 to 35°C
Humidity: 20 to 80%, non-condensing | | Storage Conditions | Temperature: 5 to 140°F / -15 to 60°C
Humidity: 10 to 90% | | Power Requirements | 100-120 VAC, 50/60 Hz | | Dimensions | 15.4 x 6.7 x 8.7" / 39.0 x 17.0 x 22.1 cm | | Weight | 8.1 lb / 3.7 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 18.5 x 16.2 x 12.3" |
