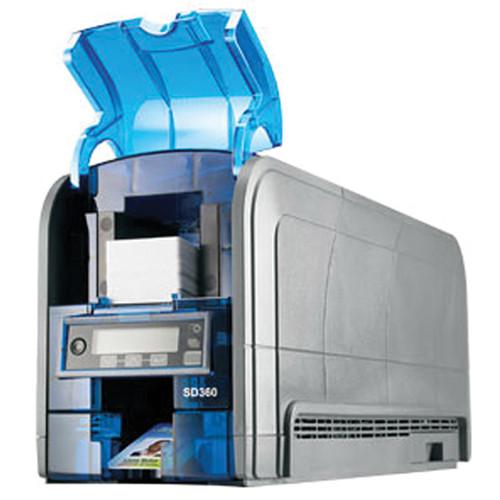

User Manual for DATACARD SD360 Dual-Sided ID Card Printer with ISO Magnetic Stripe Encoder Click to enlarge the picture
Contents of the user manual for the DATACARD SD360 Dual-Sided ID Card Printer
- Product category: ID Card Printers DATACARD
- Brand: DATACARD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATACARD ID Card Printers
|
User manual for the DATACARD SD360 Dual-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATACARD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATACARD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATACARD product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The SD360 ID Card Printer with ISO Magnetic Stripe Encoder from DATACARD is a two-sided printer featuring dye sublimation and resin thermal transfer technology to produce high-resolution 300 x 1200 dpi ID cards quickly. It works with ID-1 and CR-80 cards and supports automatic two-sided printing as well as edge-to-edge printing. This printer is also capable of color single-sided prints at a rate of 200 cards per hour, monochrome single-sided prints at up to 830 cards per hour, and color double-sided prints at 155 cards per hour.
In addition to fast printing, the SD360 features a front LCD panel for viewing the printer's current status. There are also soft-touch controls along the screen for adjusting settings quickly and easily. The SD360 can also be set to conform to sRGB and has color management options. Media handling is done through either a 100-card input automatic feeder or a 1-card manual feed slot. The cards are then handled by a 25-card output tray. This model features the ability to encode ISO magnetic stripes found on certain security cards. Additionally, the printer has both USB 2.0 and Ethernet connectivity. - High-resolution print settings of 300 x 600 dpi and 300 x 1200 dpi will help ensure bright crisp colors as well as accurate details in text and barcodes
- One or two-sided, edge-to-edge printing in full color or monochrome
- Can print alphanumeric text, logos, and digitized signatures along with a variety of 1D / 2D barcode images
- Printer pooling / sharing is available
- Can conform to the sRGB standard and features color management options
- 128MB of standard printer memory
- Works with PVC card with a glossy laminate surface from 10-37 mil thick
- Front exception card slot, separate reject location and holding tray, and input hopper empty detection features are available
- Split-panel YMCKT feature for dual-sided printing, adjustable color controls, and preset area to block printing on magnetic stripe
- Utilizes Windows XPS-based technology for high-fidelity printing
- LCD panel has printer status messages display and features multiple backlight settings
- ID Works Intro identification software included
In the Box DATACARD SD360 Dual-Sided ID Card Printer with ISO Magnetic Stripe Encoder Cleaning Pen Cleaning Roller Spindle USB Cable Power Supply Power Cord Driver CD Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATACARD SD360 Dual-Sided ID Card Printer with ISO Magnetic Stripe Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATACARD SD360 Specs Printing Technology | Dye sublimation / resin thermal transfer | Maximum Resolution | 300 x 1200 dpi | Color Spaces Supported | sRGB | Ribbon Options | Full-color with resin black and topcoat panel, YMCKT, 250 images Full-color with resin black and topcoat panel, YMCKT, 500 images Full-color short panel with resin black and topcoat panel, ymcKT, 650 images Resin black and topcoat panel, KT, 1000 images Full-color with resin black and topcoat panel on front, resin black on back, YMCKT-K, 375 images Full-color with resin black and topcoat panel on front, resin black and topcoat panel on back, YMCKT-KT, 300 images Resin black with inline double topcoat panel on front, topcoat panel on back, KTT, 750 images | | Print Speed | Full Color, Single-Sided: 200 cards per hour Full Color, Double-Sided: 155 cards per hour Monochrome, Single-Sided: 830 cards per hour | Borderless Printing | Yes, edge-to-edge | Duplex Printing | Yes | Encoding | Magnetic Stripe: ISO 7811 three-track option (high- and low-coercivity) | | Card Sizes | ISO ID-1 / CR-80: 3.370 x 2.125" (85.6 x 54.0 mm) | Card Type | PVC with glossy laminate surface Select key fob cards Datacard StickiCard adhesive-backed plastic cards | Media Thickness | 10-37 mil (0.25-0.94 mm) | Media Capacity | Automatic Feed, Input: 100 cards Automatic Feed, Output: 25 cards | | Computer Interface | USB 2.0, bidirectional Ethernet 10Base-T/100Base-TX with activity light | Memory | 128 MB | System & Software Requirements | Windows XP SP3 (32-bit), 7 (32/64-bit), 8 (32/64-bit), 2003 R2 Server (32-bit), 2008 Server (64-bit), 2008 R2 Server (64-bit), 2012 Server (64-bit) | | Status Display | Yes, LCD panel | Front Panel Controls | Soft-touch controls | Certifications | cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC | Environmental Compliance | Biodegradable supply cores with EcoPure additive Recyclable enclosure plastics Recyclable packaging | Operating Conditions | Temperature: 60 to 95°F (15 to 35°C) Humidity: 20 to 80%, non-condensing | Storage Conditions | Temperature: 5 to 140°F (-15 to 60°C) Humidity: 10 to 90%, non-condensing | Power Requirements | 100 / 120 VAC, 50 / 60 Hz | Dimensions (WxHxD) | 21.2 x 6.9 x 8.8" (53.9 x 17.5 x 22.4 cm) | Weight | 12 lb (5.4 kg) | | Package Weight | 17.1 lb | Box Dimensions (LxWxH) | 24.5 x 15.8 x 11.9" |
