User Manual for DATAPATH AM2 Audio Module Click to enlarge the picture
Contents of the user manual for the DATAPATH AM2 Audio Module
- Product category: Multiviewer Accessories DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Multiviewer Accessories
|
User manual for the DATAPATH AM2 Audio Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|

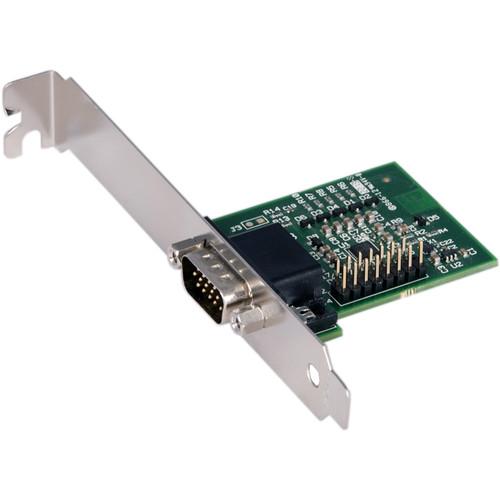

Product description The AM2 Audio Module from Datapath is an audio module accessory for an analog stereo input to a sampling software system. The unit is supplied mounted on a full-height bracket with a long ribbon cable and an audio breakout cable, for connection to any Datapath capture card supporting analog audio or the VisionAV range of video capture cards. The AM2 features a common attenuator and mute function for both channels, and support for HDMI embedded audio from digital AV capture channel. - Supports audio capture to the PCI Express bus at popular sample rates 44.1, 48, and 96 kHz
- All are available in RGBEasy (audio extensions) and DirectShow for development purposes
- Support for HDMI embedded audio from digital AV capture channel
In the Box DATAPATH AM2 Audio Module Audio Breakout Cable Long Ribbon Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH AM2 Audio Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH AM2 Specs | Interface Connector | 15-pin Sub-D male, audio breakout cable
16-pin terminal, internal main board | | Connector 1 | 15-pin Sub-D female, audio breakout cable | | Connector 2 | 1 x XLR female, balanced audio left input
1 x XLR female, balanced audio right input
1 x RCA female, unbalanced audio left input
1 x RCA female, unbalanced audio right input
1 x RCA female, unbalanced audio left output
1 x RCA female, unbalanced audio right output | | Audio Capture | Selectable analog audio capture between:
Stereo Line-In, unbalanced audio capture, connecting to breakout cable RCA connectors
Stereo balanced audio capture, connecting to breakout cable XLR connectors | | Sample Rate | 44.1 kHz, 48 kHz, 96 kHz, set as default at 44.1 kHz | | Sample Rate Conversion | 16 bits/sample, 96 dB Dynamic range | | Audio Output | Direct loop through selected analog input | | Operating Systems Supported | Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7, Windows 8, Windows Server 2012, and Linux (audio support) | | Software | The audio sources are available in DirectShow and RGBEasy:
Sample rate settings accessible through DirectShow and RGBEasy
The adjustable attenuation and mute for each channel is available in the audio extension to RGBEasy and in DirectShow | | Power Requirements | 12 ma @ 12 V, supplied via the attached capture cards PCIe interface | | Thermal Dissipation | 150 mW, max | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 12.7 x 6.5 x 3.4" |
