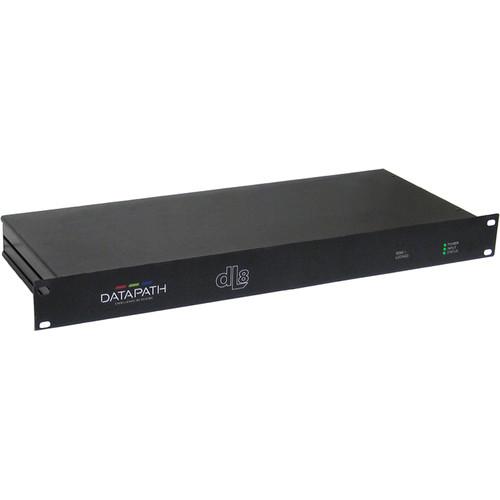

User Manual for DATAPATH dL8 1 x 8 Dual-Link DVI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the DATAPATH dL8 1 x 8 Dual-Link
- Product category: Multiviewer Accessories DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Multiviewer Accessories
|
User manual for the DATAPATH dL8 1 x 8 Dual-Link contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|
Product description The dL8 Distribution Amplifier from Datapath is an eight output distribution amplifier for ultra-high resolution dual-link DVI signals, providing a programmable and flexible solution for any video wall display. One dual-link DVI output, supporting graphics sources with pixel clocks up to 330 MHz, and resolutions beyond Quad-HD (3480 x 2160), can be delivered to eight outputs on separate dual-link DVI-D connectors. The unit supports up to 65.6' even at full dual-link resolutions due to additional active equalization and re-clocking hardware, allowing convenient location for flexible display designs.
The dL8 has been designed and developed to operate with the x4 stand-alone display wall controller. The partnership of a dL8 and up to eight x4 display wall controllers allows you to utilize your creative imagination to construct display solutions for digital signage applications and video walls. Each of the x4 units can accept one of dual-link DVI output from the dL8 and select four arbitrary regions from it for display of all standard single-link DVI or HDMI monitors. Using this solution, it is possible to create up to 32 screen video walls, with complex display wall arrangements for any mixture of landscape and portrait display formats. Since the dL8 guarantees that all eight outputs are exactly locked to the source, all these 32 screens can be frame-locked for optimum display of creative, dynamic content.
The unit offers easy installation, low maintenance and high resolution visualizations. At high resolution, DVI signals cannot normally be guaranteed beyond 16.4' (5m) cables due to the nature of signal losses inherent in the DVI cables and connectors. The dL8 has a fully programmable EDID to graphics source, allowing simple control of resolution and frame rate. Through active equalization and re-clocking hardware it supports source cable lengths up to 65.6' (20m) at full dual-link video resolutions. The high quality re-clocking signal processing ensures that any timing skews that might be introduced by the lower cost input cables can be corrected within the dL8, maximizing the signal quality of the output signals. - Supports up to 32 screens video walls when used in conjunction with up to 8 Datapath x4 stand-alone display wall controllers
- Distribution and signal conditioning of arbitrary DVI source signals
- Supports any resolution or frame rate that can be used supported in either single or dual-link DVI
- Supports any resolutions up to and beyond Quad-HD (3840 x 2160) up to pixel clocks of 330 MHz
- Sophisticated EDID management
- Support for long input cables, allowing convenient location
In the Box DATAPATH dL8 1 x 8 Dual-Link DVI Distribution Amplifier USB Cable Type A to B Mains Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH dL8 1 x 8 Dual-Link DVI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH DATAPATH DL8 Specs | Connectors | 1 x DVI-D, dual-link DVI input
1 x USB, Type B host communications input
8 x DVI-D, dual-link DVI output
1 x IEC mains power jack, power input | | Front Panel Controls | 1 x Push button, EDID sampling
3 x LED, Power/Input/Status, flashing feedback for USB or EDID | | USB Connection | Supports USB 2.0 for programming of input EDID parameters using the Datapath dL8 control application | | Operating System Support | Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7 | | Capabilities | Input:
Incorporates TMDS re-clocking equalizer to support up to 65.6' (20 m) cables
Programmable EDID to indicate preferred mode
No limit to aspect ratios or frame rates of DVI signals that can be accepted, provided they remain within the dual-link 330 MHz specification
Input is not HDCP compatible
Output:
Supports up to 16.4' (5 m) cables into standard DVI receiver | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | Power Requirements | 100 - 240 VAC universal power supply, 25 W maximum | | Rackmount Space | 1 RU | | Dimensions | 19.0 x 1.7 x 6.8" (48.3 x 4.4 x 17.2 cm) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 21.5 x 10.2 x 3.4" |
