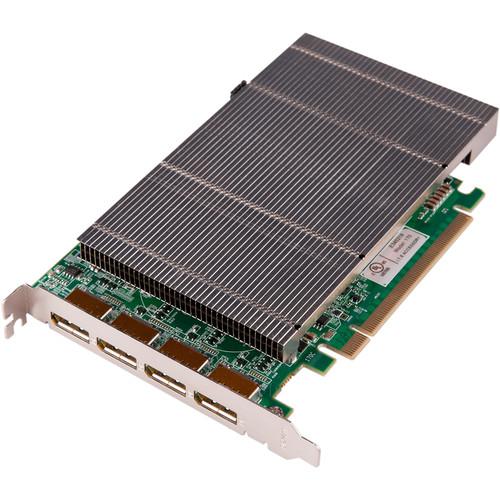

Product description The ImageDP4 4-Port DisplayPort Graphics Card from DATAPATH is a high-performance, 4-channel graphics card, featuring a single, powerful graphics processor with improved memory and PCI Express bandwidths to provide responsive performance at up to double the resolution of previous DATAPATH graphics cards.
Up to 16 ImageDP4 graphics cards can be supported by the DATAPATH display driver, providing a high-resolution Windows desktop comprising up to 64 screens. This ability to present standard Windows applications alongside full frame-rate video on a single high resolution desktop allows the visualization of large amounts of data at once. To complete the integration into a single desktop, all the outputs of the ImageDP4 graphics card are automatically frame-locked across all cards within a system.
The graphics card is optimized for use with the DATAPATH Vision range of capture cards for systems requiring video overlays from a wide range of sources and resolutions. Video windows can be positioned and sized anywhere on the multi-screen desktop, while maintaining full frame rate, true color rendering throughout. Combining the Vision video capture cards with an ImageDP4 graphics display allows the construction of high-end display wall systems.
The ImageDP4 card natively supports four full-sized DisplayPort outputs for the convenience of high resolution, locking cable connectors, and significantly longer cable lengths. Air flow management is optimized through the use of passive cooling, providing high reliability for any multi-screen solution. - PCI Express 2.1 bus interface electronically supporting x4, x8 and x16 lane widths
- 600 MHz graphics processor with 512MB GDDR5 at 800 MHz
- DisplayPort connectors allow full-size, locking cables capable of driving next generation displays
- Up to 131.2' (40m) cable support using DATAPATH DPextend modules, powered via the graphics card
- DVI support using optional DisplayPort cables and adapters (four DVI adapters included)
- Passive cooling for high reliability
- Projector overlapping supported
- Supports Multi-Resolution, different resolutions on each output
- Monitor rotation support for landscape and portrait orientation
- Supports HDCP on all outputs
- Up to 16 cards per system for a maximum of 64 display channels
- Compatible with DATAPATH Wall Control software
In the Box DATAPATH ImageDP4 4-Port DisplayPort Graphics Card with 4 DVI Adapters 4 x DVI Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH ImageDP4 4-Port DisplayPort Graphics Card with 4 DVI Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH IMAGEDP4/DVI Specs | Card Format | 16-lane PCI Express | | Connectors | 4 x DisplayPort 1.1a, video output | | Maximum Output Resolution | 4 x 2560 x 1600 at 60 Hz, up to 359 MP | | Maximum Cards Supported | 16 cards per system (64 display channels) | | Memory | 512 MB total | | Maximum Current | @ 3.3 V: 0.25A (+1.8 A when powering four channels of DPextend + DPadapt)
@ 12 V: 1.2 A | | Power Dissipation | 15 W, max | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90%, non-condensing | | MTBF | 180,000 hours | | Dimensions | 4.3 x 7.0" (11.0 x 17.7 cm), including heat sync |
