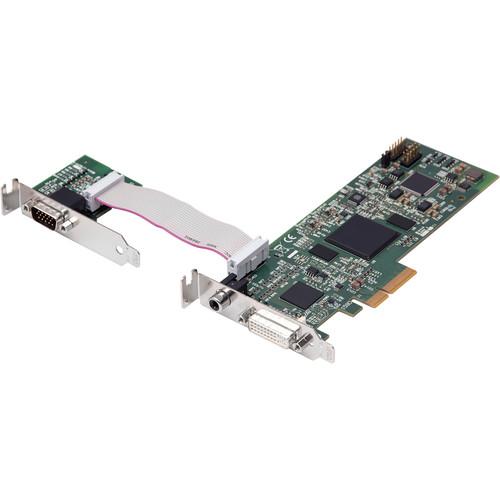

Product description The VisionAV/H DVI/HDMI Capture Card with Audio Card from DATAPATH is a four lane PCI Express capture card providing up to 800MB/s bandwidth from the capture engine. The VisionAV/H has up to 256MB buffer memory, enabling triple buffering for all video modes for tear free play back. It can also capture digital video for progressive and interlaced modes up to 4096 x 4096 resolutions to a maximum of 165 MHz pixel clock for DVI and 170 MHz for Analog RGB. The card provides HDMI audio capture and streaming from DVI Channel, as well as balanced and unbalanced analog audio capture. The VisionAV/H comes with an Audio Module card, a half-height bracket, a long ribbon cable, an audio breakout cable, a DVI/VGA adapter, a DVI/Component adapter, and a DVI/HDMI adapter.
The Vision cards provide high performance DMA to system memory or direct to graphics memory with scatter gather, allowing for low latency fast frame rates in all applications. The complete range of Datapath video capture cards are supported by a generic Windows Vision driver and command line interface also supporting DirectShow and RGBEasy SDK. A single Vision device supports up to 16 independent scale factors, color spaces and frame rate clients. The Datapath capture cards have Timestamp support for capture synchronization across inputs, cards and systems. This is for use with edge blending, frame stitching, stereoscopic and many more applications using gen-locked sources.
The VisionAV has two independent video capture channels - one supporting HD capture and a second simultaneously accepting Standard Definition composite video. The VisionAV also adds analog audio capture, which can be perfectly synchronized with either video capture channel. The High Definition signals are input via a DVI-I connector and can support HDMI, DVI, RGB and analog Component (YPbPr) video formats all at resolutions up to 4096 x 4096 pixels and supports 1080p (1920x1080) at 60 frames per second. The Standard Definition channel accepts composite video on a single RCA connector and can auto-detect between PAL, NTSC and SECAM formats up to 720 x 576 at 16 bit color. The VisionAV captures both video channels simultaneously and triple buffers them into on-board storage, alongside an audio stream that can be selected from the HDMI or Analog audio port. This data can then be processed and copied using DMA transfers to the host system for display, storage or streaming.
The VisionAV is a suitable solution for applications that require the capture of analog or DVI sources in real time. Typical applications include capturing analog or DVI sources from PCs, MACs, industrial/medical equipment, cameras and other video equipment streaming video applications and video wall controllers. Adding support for simultaneous analog and digital audio capture makes this a versatile capture card for streaming, webcasting, video conference and many other applications. - HDMI, DVI, RGB, YPbPr, composite video and analog audio capture
- Flexible and configurable preferred mode EDID Management
- Dual-Channel Video:
- Channel 1: HDMI, DVI, RGB, YPbPr digital or analog HD video
- Channel 2: Composite video - NTSC, SECAM and PAL
- Flexible Audio Capture:
- Balanced XLR and Unbalanced RCA from an optional module
- Analog audio capture
- HDMI audio through HD video channel
- Datapath Unified Vision Driver:
- Multiple cards per system, 16 streams per channel
- Frame sync and time stamping
- DirectShow interface
- RGBEasy API for advanced audio and video control
- Direct WDM streaming driver supports the following applications, to encode, record and stream video over networks or the internet:
- Dataton WatchOut
- Microsoft Expression Encoder
- VideoLAN VLC
- NorPix StreamPix
- VitualDub
- Adobe Flash Encoder
- VidBlaster
- AMCap and other DirectShow compatible software
- High quality up/down scaling (7 x 5 Polyphase Filter) provides excellent visual experience
- Multiple channel audio and video capture
- Small form, low power consumption
- Fully integrated for use with Datapath Wall Control video wall software for video wall applications
- HD modes using the supplied DVI/ Component Adapter or DVI/ HDMI Adapter
- On card processor for real time mode detection for trouble free connection to a wide variety of video sources
- Support for Windows XP, Vista, Server 2003, Server 2008, Windows 7, Windows 8, Server 2012, and Linux
- Support for YUV 4:2:2, RGB 5:5:5, 5:6:5, 8:8:8 video output formats providing compatibility with a wide variety of data streams
In the Box DATAPATH VisionAV/H DVI/HDMI Capture Card with Audio Card (PCI Express) AM2 Audio Module Half Height Bracket (Fitted to Each Board) Ribbon Cable (Long) Audio Breakout Cable DVI / VGA Adapter DVI / Component Adapter DVI / HDMI Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionAV H DVI HDMI Capture Card with Audio Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONAV/H Specs | Card Format | PCI Express x4 low profile card | | Interface Connector | 15-pin Sub-D male, audio breakout cable
16-pin terminal, internal main board | | Connectors | Main Board:
1 x DVI-I, video input
1 x RCA female, video input
Audio Board:
2 x RCA, line-level audio input
2 x XLR, balanced audio input
2 x RCA, line-level audio output | | Capture | HDMI:
Supports HDMI 1.3 to 225 MHz (including deep color modes)
HDMI audio can be selected as source for audio streaming
Incorporates TMDS equalizer to support up to 65.6' (20m) cables
DVI:
Supports DVI 1.0 RGB 24-bit capture to 165 MHz
Incorporates TMDS equalizer to support up to 65.6' (20m) cables
VGA/ YPbPr:
Triple ADCs sampling up to 170 Mp/s, full 4:4:4 sampling, 8-bits per color
5-wire, 4-wire or sync-on-green signal format
Composite Video:
CCIR601 sampling, PAL, NTSC, SECAM formats automatically detected
Audio:
Stereo Line-In / Stereo balanced inputs with programmable gain (+/-12 dB)
16-bit sampling at 44.1, 48, 96 kHz
Analogue stereo line-out for direct pass-through of selected input at up to 64 kHz sampling, sourced from Analog input or HDMI channel | | Video Capture | Memory:
256 MB high bandwidth frame buffer supports triple buffering of HD and SD video
Local storage of complex scatter-gather tables for DMA engine (eliminates read overhead) | | Video Processing | Polyphase FIR scaling engine (7 x 5) for hardware downscaling and upscaling
Color space conversion allows captured data to be transferred in any format: RGB: 16-bit (5-5-5, 5-6-5), 24-bit (8-8-8) or 32-bit (8-8-8 alpha) YUV: 16-bit (4:2:2) Mono: 8-bit | | Direct Memory Access | Direct DMA to physical or virtual memory buffers with full scatter-gather support
DMA bandwidth: up to 800 MB/s
16 independent DMA streams: Any mix of HD and SD sources, color space, cropping and scaling parameters | | Operating System Support | Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows Server 2012, Windows 7, Windows 8 and Linux support | | Power Requirements | Max current at 12 V - 0.5 A
Max current at 3.3 V - 0.2 A | | Thermal Dissipation | 6.5 W | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | Dimensions | 2.7 x 6.6" (68.9 x 167.6 mm) |
