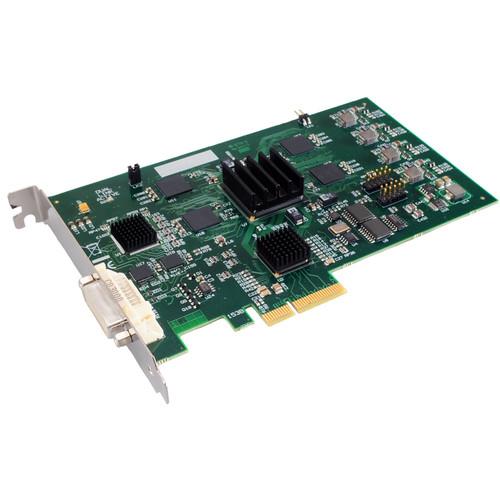

User Manual for DATAPATH VisionDVI-DL Single-Channel Dual-Link DVI Capture Card Click to enlarge the picture
Contents of the user manual for the DATAPATH VisionDVI-DL Single-Channel Dual-Link DVI Capture
- Product category: Multiviewer Accessories DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Multiviewer Accessories
|
User manual for the DATAPATH VisionDVI-DL Single-Channel Dual-Link DVI Capture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|
Product description The VisionDVI-DL Single-Channel Dual-Link DVI Capture Card from DATAPATH is a single-channel stand-alone PCI Express dual-link DVI capture card. The card has a 650MB/s transfer bandwidth, and a maximum canvas of 4K x 4K that allows any DVI source to be captured. Integrated DVI equalizers on its inputs support longer input cable lengths, up to 65.6' (20m). The video capture card is suitable for a wide range of applications, including large video walls, high-resolution and high-bandwidth applications, advanced medical and machine video capture, IP Render decode capture, radar, security/surveillance, and military applications.
The VisionDVI-DL card is supplied with a software application for configuring the format of the input sources and displaying the data. Simply connect your video source into the card, run the VisionDVI-DL application to automatically detect the video source resolution and display the captured video in a window on your desktop. For streaming applications, the VisionDVI-DL capture card can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows Media Player. Any application compatible with Windows DirectShow technology can use the VisionDVI-DL capture card due to its built-in WDM support.
The Datapath Wall Control-red video wall software enables you to configure your multi-screen display, launch video overlays and create a video wall layout configuration. With the full version, it is possible to save layouts and recall them for future use and also operate Wall Control video wall software on a remote PC via a network connection. The Wall Control-red presents a representational window of the entire display wall showing position and size of video windows. - Single-channel PCI Express 4-lane bus with maximum data rate of 650MB/s, allowing high resolution sources to be displayed at full frame rate
- Support for 330MHz pixel clock and a maximum canvas of 4K x 4K
- HD video capture for all progressive and interlaced DVI/HDMI modes
- Captures Quad-HD (2160p) and Digital Cinema modes at 24, 25, and 30 fps
- 128MB on-board frame buffer
- Input equalization supporting longer input cables
- High performance DMA to system memory or direct to graphics memory with scatter gather high quality scaling (7 x 3 Polyphase filter)
In the Box DATAPATH VisionDVI-DL Single-Channel Dual-Link DVI Capture Card (PCI Express) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionDVI-DL Single-Channel Dual-Link DVI Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONDVI-DL Specs | Card Format | PCI Express x4 card
PCI Express bus master with scatter gather DMA | | Connector | 1 x DVI-D, dual-link DVI input | | Data Rate | 650 MB/s, maximum | | Sample Rate | 330 MHz, maximum | | Video Capture | Memory: 128 MB, triple buffered | | Dual Link DVI | Single-link and dual-link modes auto detected | | Input Detection | Automatic detection of input modes in hardware, enabling the tracking of mode changes in the source signal | | Pixel Format | RGB: 5-5-5, 5-6-5 or 8-8-8 (24-bit, 32-bit)
YUV: 4:2:2
Mono: 8-bit | | Update Rate | User defined, captured frame rate will match the source. Providing maximum data rate (650 MB/s) is not exceeded
Multi-buffered to eliminate tearing artifacts | | Video Formats | Dual-Link DVI
Single-Link DVI | | Operating System Support | Windows XP, Windows Vista, Windows Server 2003, Windows Server 2008, Windows 7, and Windows 8 | | Power Requirements | Maximum current at 3.3 V - 0.2 A
Maximum current at 12 V - 0.9 A
Maximum power 12 W | | Temperature | Operating: 32 to 96°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | Dimensions | 4.3 x 6.7" (110 x 170 mm) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 12.6 x 6.5 x 3.5" |
