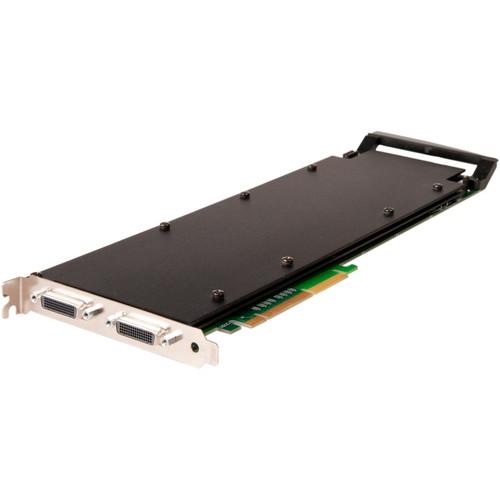

User Manual for DATAPATH VisionHD4 4-Channel DVI RGB HD Capture Card Click to enlarge the picture
Contents of the user manual for the DATAPATH VisionHD4 4-Channel DVI RGB HD
- Product category: Multiviewer Accessories DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Multiviewer Accessories
|
User manual for the DATAPATH VisionHD4 4-Channel DVI RGB HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|
Product description The VisionHD4 4-Channel DVI/RGB/HD Capture Card from DATAPATH is an eight lane PCI Express capture card with four independent video capture channels, supporting HD capture. The card provides a high performance high density video capture solution for control room, medical and other applications that require high capture bandwidth. The quad HD capture capability in combination with Datapath's multi-stream and synchronization features enables resolutions up to 4096 x 2048 and quad HD solutions.
The VisionHD4 captures all four HD video channels simultaneously and triple buffers them into on-board storage for tear-free video, alongside embedded HDMI audio streams can also be captured from each channel. The full length video capture card has four capture processors, each providing 800 MB/s bandwidth. - Eight lane PCI Express Gen.3 bus
- 3.2 GB/s total capture bandwidth in 4 PCIe lanes Gen.3 or 8 lanes Gen.2
- Four Datapath capture processors
- Frame buffer memory 4 x 256MB
- Datapath unified Windows and Linux driver support
- All standard Vision range features
- Quad DVI-I capture channel:
- HDMI/ DVI/ RGB/ YPbPr video capture
- Maximum resolution up to 4096 x 2048, at 165 MHz Pixel Clock (digital modes) or 170 Mp/s in analogue modes
- HDMI audio capture with streaming from each DVI channel
- 800 MB/s bandwidth per capture processor, 3.2 GB/s for the card
In the Box DATAPATH VisionHD4 4-Channel DVI/RGB/HD Capture Card (PCI Express) 2 x DVI Splitter Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionHD4 4-Channel DVI RGB HD Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONHD4 Specs | Card Format | Full-size 8 Lane PCIe 3-0 interface | | Connectors | 2 x 59-pin Sub-D high-density DMS59, video input | | Sample Rate | 170 Mp/s RGB analogue or 165 MHz DVI
Analogue modes up to 340 MHz pixel clock can be captured using dual-pass sampling | | Data Rate | 800 MB/s bandwidth per capture processor, 3.2 GB/s for the card | | Video Sampling | RGB: 24 bits per pixel, 8-8-8 format | | Video Capture | Memory: 256 MB per capture channel, triple buffered | | Modes | RGB Analogue: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200 and custom modes
DVI Single Link: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200 and custom modes
HD: 1080p, 1080i, 720p, 576p, 480p, and 480i using a Component-DVI connector | | Input Modes | Automatic detection of input modes in hardware, enabling the tracking of mode changes in the source signal | | Pixel Format | RGB: 5-5-5, 5-6-5, or 8-8-8 (24 bit, 32 bit)
YUV: 16 bit (4:2:2)
MONO: 8 bit | | Update Rate | User defined, capture frame rate will match the source providing maximum data rate (800 MB/s) is not exceeded
Multi-buffered to eliminate tearing artifacts | | Video Formats | RGB Analogue plus HSync and VSync (5 wire)
RGB Analogue with Composite Sync (4 wire)
RGB Analogue with Sync on Green/ YPbPr (3 wire)
DVI Single Link, HDMI 1.3 | | Operating System Support | Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows Server 2012, Windows 7, Windows 8 and Linux support | | Power Requirements | Maximum current at 12 V - 1.9 A
Maximum current at 3.3 V - 2.5 A
Maximum power 31 W | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | Dimensions | 4.4 x 12.3" (11.1 x 31.2 cm) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 16.4 x 10.2 x 3.6" |
