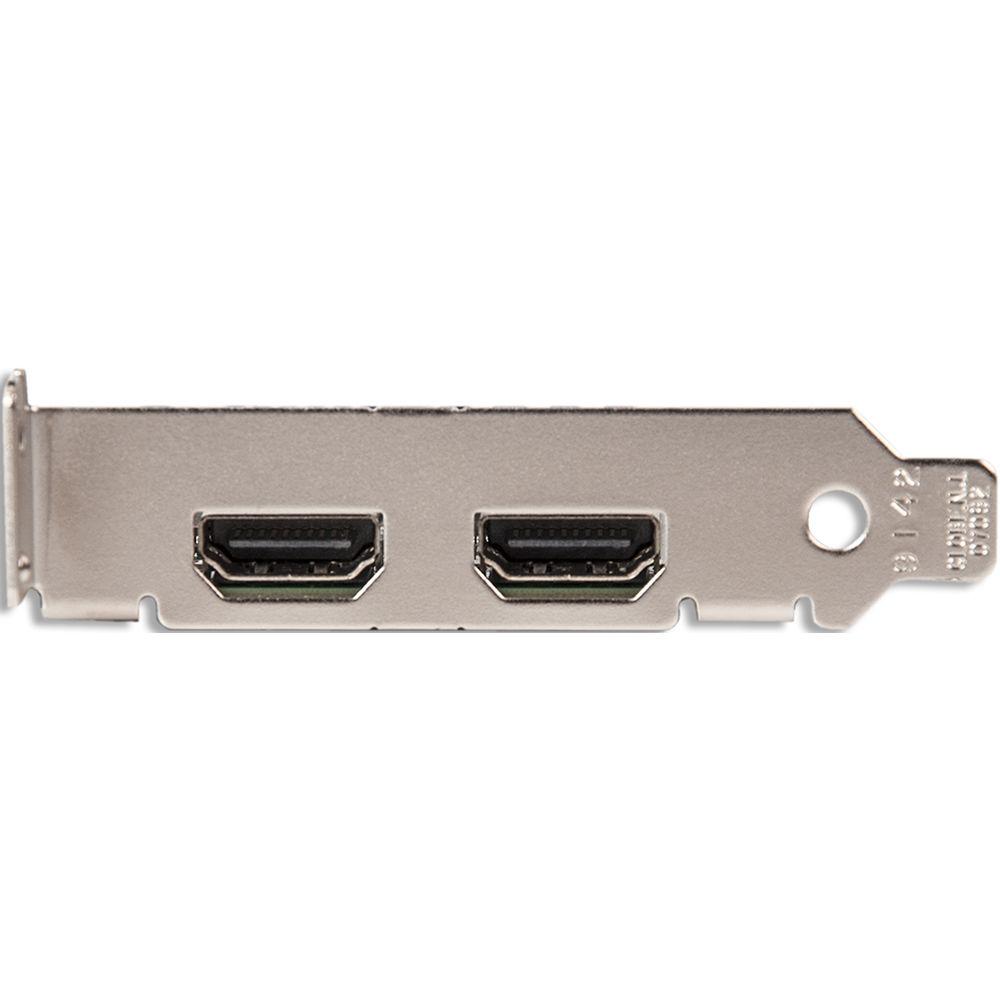

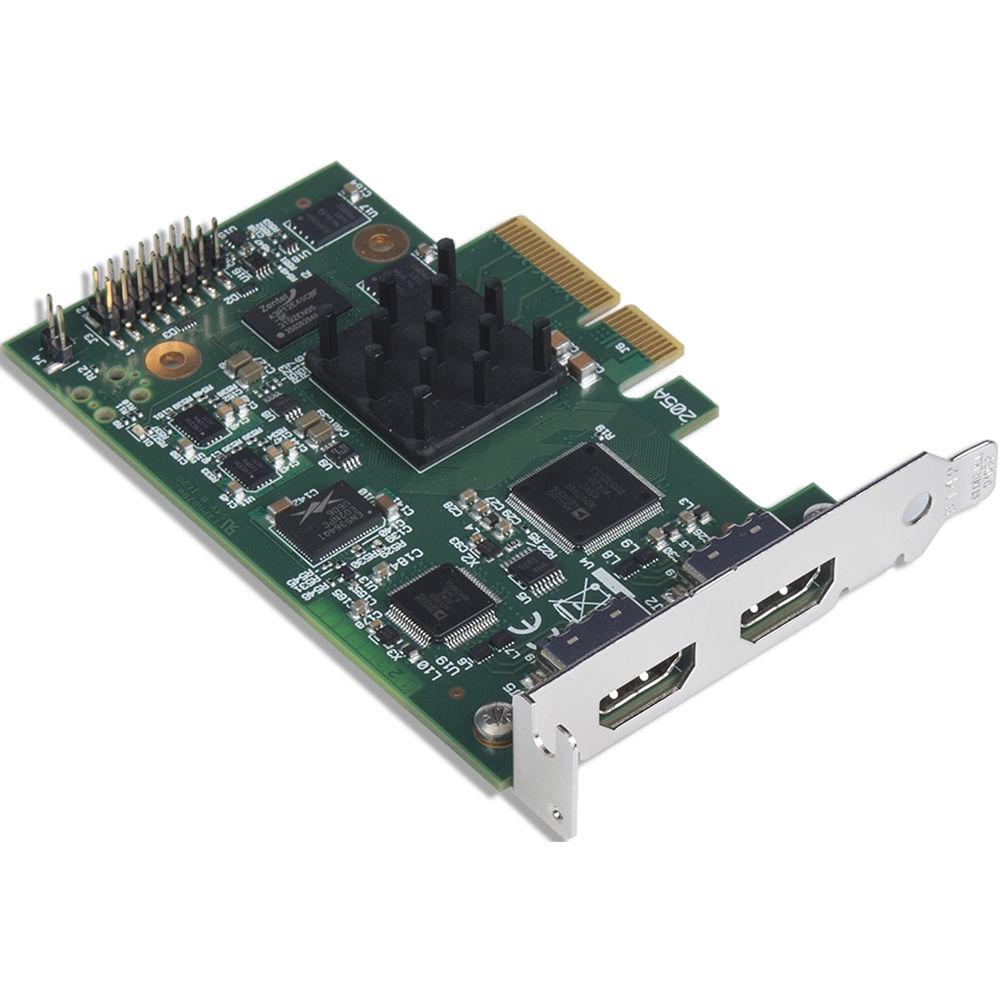

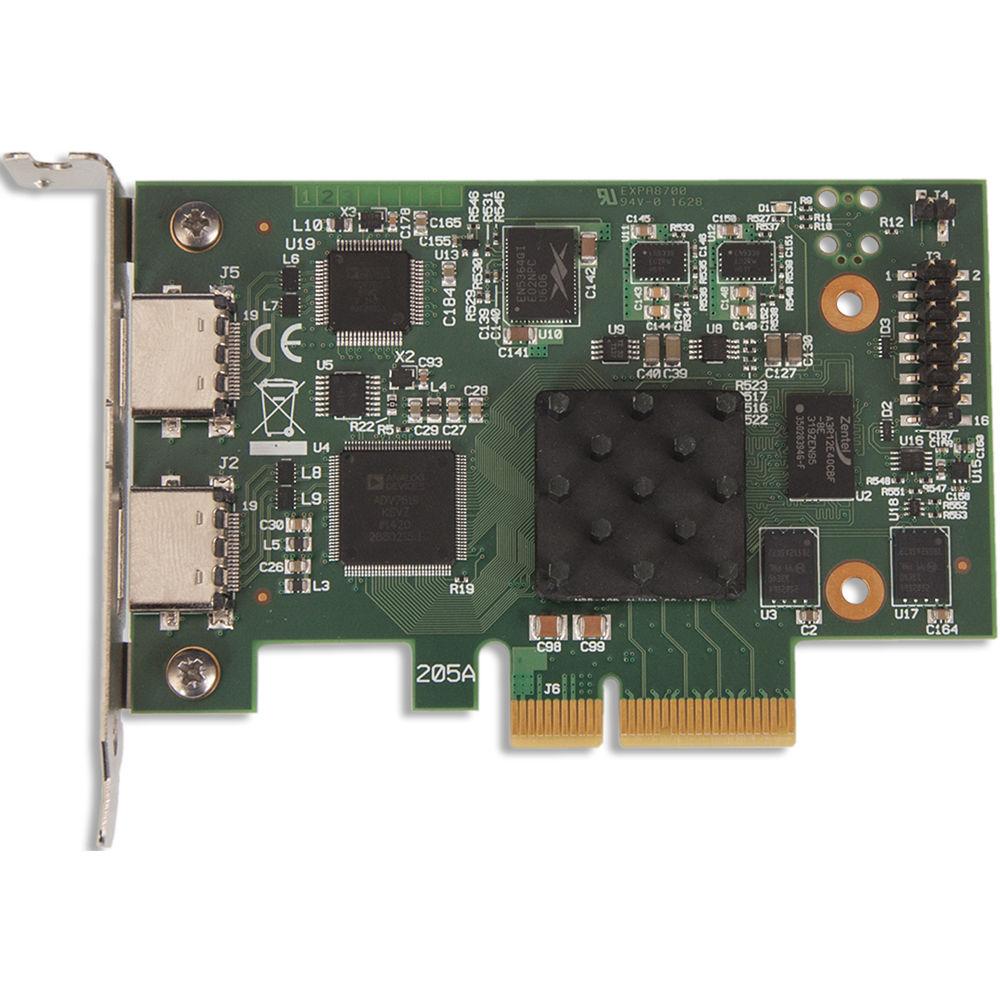

Product description The VisionLC-HD2 Dual-Channel LiveStream Capture Card from Datapath provides dual-channel HDMI video and audio capture for small form factor appliances being used in medical environments, simulation systems, lecture capture, real-time streaming, and videoconferencing. The card allows captured video to be processed and delivered in real time to a processor or graphics card. The VisionLC-HD2 capture card supports onboard color space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. It natively supports 32-, 24-, 16- and 12-bit YUV and RGB formats. Built upon the Microsoft AV Stream framework, the card's inputs can be accessed and enumerated by any DirectShow or Media Foundation supported application. A Video for Linux (V4L) driver package is available for download. - Dual HDMI capture channel
- Channel 1: Up to 297 Mp/s pixel clock capturing up to 3840 x 2160p at 30 Hz
- Channel 2: Up to 165 Mp/s pixel clock capturing up to 1920 x 1080p at 60 Hz
- 1.6 Gb/s total DMA bandwidth
- High-performance up and down scaling
- Color space conversion to support output formats
- PCI Express Gen 2 x 4 low profile
- Datapath unified Windows and Linux driver support
- Tested applications include Microsoft Media Encoder, VLC, Telestream WireCast, vMix, VirtualDub, VidBlaster, OBS Project, and Adobe Flash Media Encoder
In the Box DATAPATH VisionLC-HD2 Dual-Channel LiveStream HDMI Video & Audio Capture Card VisionLC Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionLC-HD2 Dual-Channel LiveStream HDMI Video & Audio Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONLC-HD2 Specs | Card Type | PCIe Gen 2 x 4 plug-in card | | Connector | 2 x HDMI | | Pixel Clock Frequency | Channel 1: 297 Mp/s
Channel 2: 165 Mp/s | | Capture Resolution | Channel 1: 2560 x 1600 at 60 Hz, 3840 x 2160p at 30 Hz (UHD)
Channel 2: 1920 x 1080p at 60 Hz | | Transfer Rate | 1.6 Gb/s maximum DMA transfer rate | | Color Space Conversion | 32-/ 24- / 16-bit RGB (4:4:4)
16-bit YUV (4:2:2)
12-bit YUV, NV12, YV12 (4:2:0) | | Audio Support | Stereo pair PCM audio via each HDMI channel at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz | | Low Latency | LiveStream: Capture
Single frame time plus DMA transfer of final line | | Operating System Support | Linux
Windows Server 2003, 2008, Vista, XP, 7, 8/8.1, and 10 | | Power Requirements | Maximum Current at 1 A at 3.3 V
Maximum Power: 5 W | | Operating Temperature | 32 to 96°F (0 to 35°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Dimensions | 4.1 x 2.5" (103 x 64 mm) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 12.6 x 6.4 x 3.4" |
