User Manual for DATAPATH VisionLC-SDI Single-Channel LiveStream SDI Video & Audio Capture Card Click to enlarge the picture
Contents of the user manual for the DATAPATH VisionLC-SDI Single-Channel LiveStream SDI Video
- Product category: Computer Hardware DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Computer Hardware
 |
User manual for the DATAPATH VisionLC-SDI Single-Channel LiveStream SDI Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|

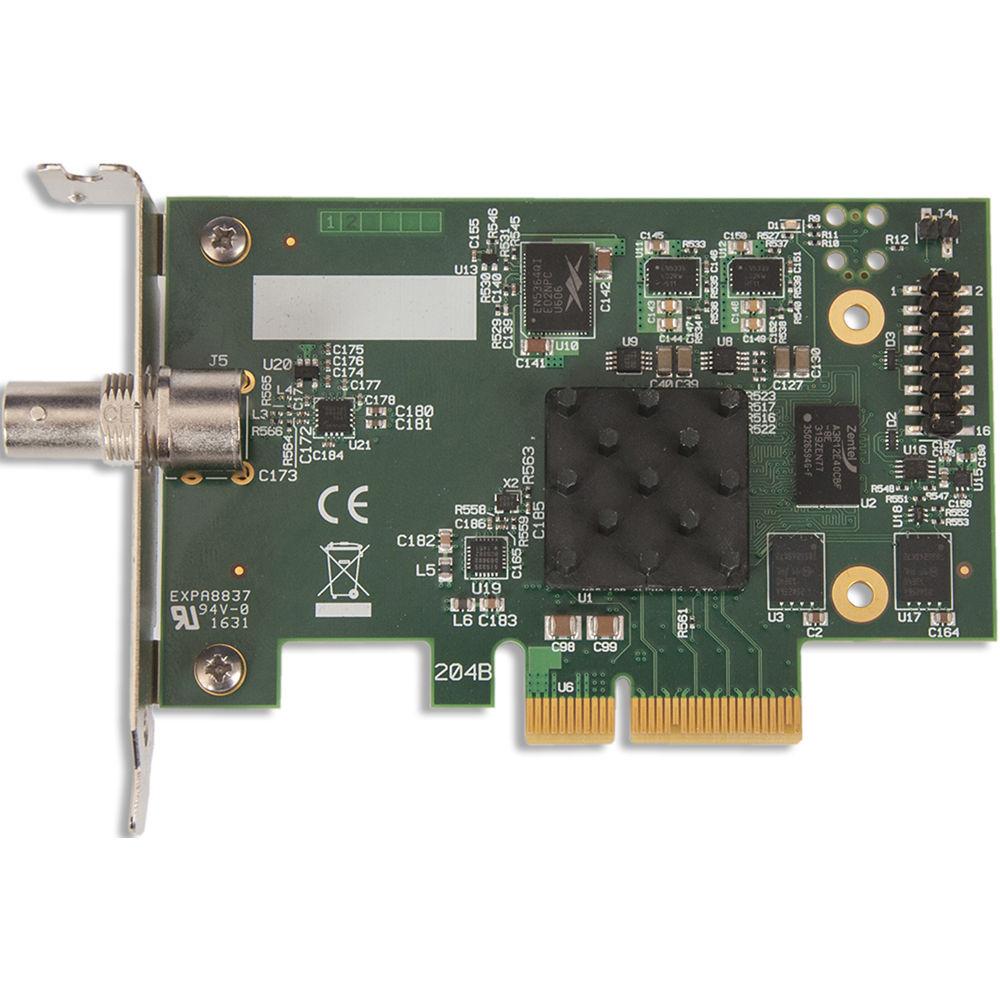

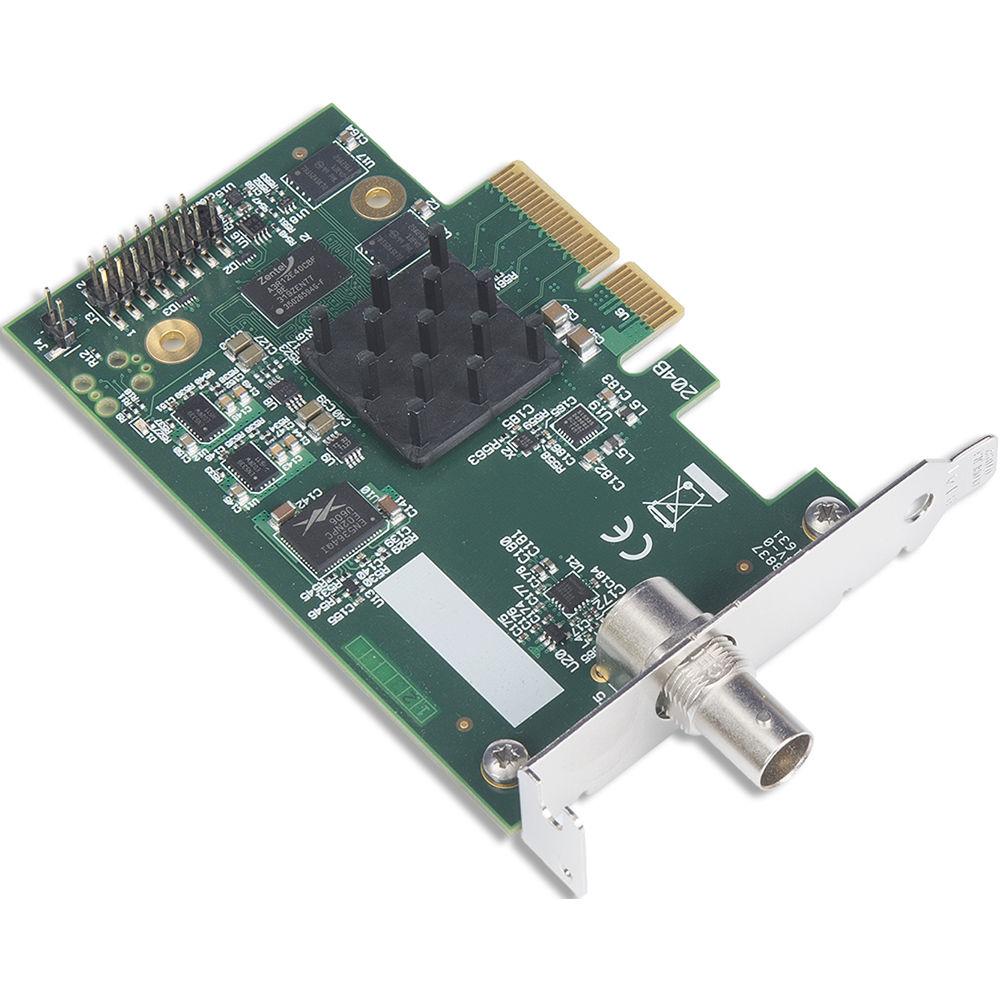

Product description The VisionLC-SDI Single-Channel LiveStream Capture Card from Datapath provides tri-band SDI capture for small form factor appliances being used in medical environments, simulation systems, lecture capture, real-time streaming, and videoconferencing. The card allows captured video to be processed and delivered in real time to a processor or graphics card. It supports onboard color space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. The VisionLC-SDI capture card natively supports 32-, 24-, 16- and 12-bit YUV and RGB formats. Built upon the Microsoft AV Stream framework, the card's inputs can be accessed and enumerated by any DirectShow or Media Foundation supported application. A Video for Linux (V4L) driver package is available for download. - Single SDI capture channel
- Maximum capture resolution of SD / HD / 3G at 60 Hz
- High-performance up and down scaling
- Color space conversion to support output formats
- PCI Express Gen 1 x 4 low profile
- Datapath unified Windows and Linux driver support
- Tested applications include Microsoft Media Encoder, VLC, Telestream WireCast, vMix, VirtualDub, VidBlaster, OBS Project, and Adobe Flash Media Encoder
In the Box DATAPATH VisionLC-SDI Single-Channel LiveStream SDI Video & Audio Capture Card VisionLC Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionLC-SDI Single-Channel LiveStream SDI Video & Audio Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONLC-SDI Specs | Card Type | PCIe Gen 1 x 4 plug-in card | | Connector | 1 x SDI-BNC | | Capture Resolution | Maximum: SD-HD-3G Level A and Level B at 60 Hz | | Transfer Rate | 800 Mb/s maximum DMA transfer rate | | Input Mode Select | Supports SMPTE-352 Payload identifiers | | Color Space Conversion | 32-/ 24- / 16-bit RGB (4:4:4)
16-bit YUV (4:2:2)
12-bit YUV, NV12, YV12 (4:2:0) | | Audio Support | Stereo pair PCM audio via SDI input at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz | | Video Modes | SD-SDI (480i/576i) ST-259, EBU 3276
HD-SDI (up to 1080i) ST-260, 274,296
3G-SDI (up to 1080p) ST-274, 296
2K Digital Cinema modes ST-2048-2 | | Low Latency | LiveStream: Capture
Single frame time plus DMA transfer of final line | | Operating System Support | Linux
Windows Server 2003, 2008, Vista, XP, 7, 8/8.1, and 10 | | Power Requirements | Maximum Current at 1 A at 3.3 V
Maximum Power: 3.3 W | | Operating Temperature | 32 to 96°F (0 to 35°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Dimensions | 4.1 x 2.5" (103 x 64 mm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 12.7 x 6.3 x 3.4" |
