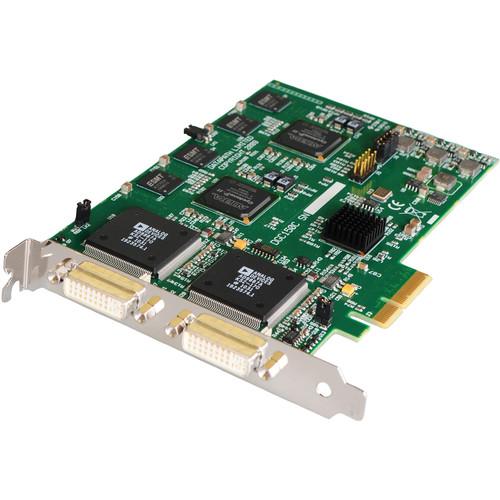

User Manual for DATAPATH VisionRGB-E2S DVI RGB HD Video Capture Card Click to enlarge the picture
Contents of the user manual for the DATAPATH VisionRGB-E2S DVI RGB HD Video
- Product category: Multiviewer Accessories DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Multiviewer Accessories
|
User manual for the DATAPATH VisionRGB-E2S DVI RGB HD Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|
Product description The VisionRGB-E2S DVI/RGB/HD Video Capture Card from DATAPATH is a stand-alone PCI Express x4 plug-in video capture card, with two complete capture channels supporting up to 1920x1200 DVI or 2048x1536 Analog resolution, and a 650MB/s transfer bus bandwidth. The card captures the Analog/ DVI data and triple buffers it into on-board storage. This data is then copied using DMA to the host system for display, storage or streaming. When a Datapath graphics card is used, the VisionRGB-E2S transfers the data directly to the graphics card, thereby increasing performance. The VisionRGB-E2S sends the relevant portions of each captured image to each display channel and instructs each channel to use its graphics engine to render the data. This fully utilizes the hardware and increases performance.
When the RGB/DVI data is displayed on a non Datapath graphics card, the VisionRGB-E2S sends the data to system memory or direct to the graphics card, dependent on the software used for display.
The VisionRGB-E2S video capture card is supplied with a software application for configuring the timing and format of the input sources and displaying the data. Simply connect your external DVI or Analog source into the card, run the VisionRGB-E2S application to automatically detect the video source format and display the captured video in a window on your desktop.
The VisionRGB-E2S is a suitable solution for applications that require the capture of analog or DVI sources in real time, such as viewing Analog or DVI sources from PCs, MACs, industrial/medical equipment, cameras and other video equipment, streaming video applications, and video wall controllers. For streaming applications, the VisionRGB-E2S can be used with Windows Media Encoder to compress and stream captures video. To replay the video, use Windows Media Player. Any application compatible with Windows Direct-Show technology can use the VisionRGB-E2S video capture card due to its built in WDM support. - High performance DMA to system memory or direct to graphics memory with scatter gather
- Data capture at a maximum rate of 340MHz
- HD capture for each channel up to 1080p at 60 frames per second, HDMI capture up to 1080p, and DVI up to 1920 x 1200
- Dynamic input source selection
- On board processor for real time mode and sync detection
- Support for separate H/V sync, Composite sync, or Sync on Green
- When used with the Datapath range of graphics card, CPU load is negligible even if the image is being upscaled to a video wall, resulting in real time performance
- Direct WDM streaming driver supports the following applications, to encode, record and stream video over networks or the internet:
- Dataton WatchOut
- Microsoft Expression Encoder
- VideoLAN VLC
- NorPix StreamPix
- VitualDub
- Adobe Flash Encoder
- VidBlaster
- AMCap and other DirectShow compatible software
- The application program is also built into the Datapath Wall Control-red video wall software
- Support for Windows XP, Vista, Server 2003, Server 2008, Windows 7, Windows 8, and Linux
In the Box DATAPATH VisionRGB-E2S DVI/RGB/HD Video Capture Card (PCI Express) 2 x DVI/VGA Adapters DVI/Component Adapter DVI/HDMI Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionRGB-E2S DVI RGB HD Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONRGB-E2S Specs | Card Format | PCI Express x4 half size card
PCI Express bus master with scatter gather DMA providing | | Connectors | 2 x DVI-I, video input | | Sample Rate | 170 MHz RGB analogue or 165 MHz DVI
Analogue modes up to 340 MHz pixel clock can be captured using dual-pass sampling | | Data Rate | 650 MB/s, maximum | | Video Sampling | RGB: 24-bit per pixel, 8-8-8 format | | Video Capture | Memory: 64 MB (updated in real-time), triple buffered | | Modes | RGB Analogue: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 2048 x 1536, and custom modes
DVI Single Link: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200, and custom modes
HD: 1080p, 1080i, 720p, 576p, 576i, 480p and 480i using a Component-DVI connector | | Input Modes | Automatic detection of input modes in hardware, enabling the tracking of mode changes in the source signal | | Pixel Format | RGB: 5-5-5, 5-6-5, or 8-8-8 (24-bit, 32-bit)
YUV: 4:2:2, UYVY, YUY2, YVYU | | Update Rate | User defined, capture frame rate will match the source providing maximum data rate (650 MB/s) is not exceeded
Triple-buffered to eliminate tearing artifacts | | Video Formats | RGB Analogue plus HSync and VSync (5 wire)
RGB Analogue with Composite Sync (4 wire)
RGB Analogue with Sync on Green/ YPbPr (3 wire)
DVI Single Link | | Operating System Support | Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows Server 2012, Windows 7 (x86 and x64 operating systems), Windows 8 and Linux support | | Power Requirements | Maximum current at 12 V - 1.2 A
Maximum current at 3.3 V - 0.25 A
Maximum power 15 W | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | Analog Input | Range: 0.5 Vp-p minimum, 1.0 Vp-p maximum | | Input | Offset: ±2 V
75 ohms, terminated | | Sync | Hsync: 15 - 110 kHz
Vsync: No hardware limits, typically 25 - 200 Hz for real signals | | Separate Sync | Polarity: Positive or negative (Separate H & V sync, Composite sync)
On Green Polarity: Negative | | Dimensions | 4.3 x 6.7" (110 x 170 mm) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 12.6 x 6.6 x 3.6" |
