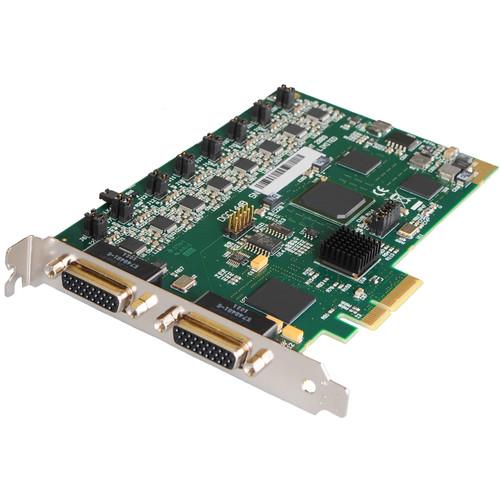

Product description The VisionSD8 8-Channel SD Video Capture Card from DATAPATH is a stand-alone eight-channel PCI Express plug-in video capture card. The card supports PAL, NTSC, and SECAM in both composite and S-video input formats, and supports de-interlaced video capture and display at 25/30 frames per second for real time video overlays. The VisionSD8 has a 480 MB/s transfer bus bandwidth, and is suitable for a wide range of applications, such as digital signage, simulation/military applications, machine vision, voyage data recorders, and multi-display presentation software.
The VisionSD8 features two 26-pin Sub-D connectors. Either connector can be used to input video signals using the included 16-way splitter cable. The splitter cable consists of 16 BNC; eight composite/S-Video Luma inputs, and eight Chroma inputs. The second connector is used as video loop-through for daisy-chain video signals to another device. For daisy chain configuration, the card inbuilt terminations should be disabled by removing termination links.
The Vision range of video capture cards are fully integrated with the Datapath family of video wall multi-display products. The VisionSD8 captures a composite or S-video output from one source and then displays it as an independent application on your video wall, which is done in real time. The card has a software application to automatically configure the timing and the format of the input source and display the captured data. - Direct WDM streaming driver supports the following applications, to encode, record and stream video over networks or the internet:
- Dataton WatchOut
- Microsoft Expression Encoder
- VideoLAN VLC
- NorPix StreamPix
- VitualDub
- Adobe Flash Encoder
- VidBlaster
- AMCap and other DirectShow compatible software
- High performance DMA to system memory or direct graphics memory with scatter gather
- On board processor for real time mode and sync detection
- When used with Datapath range of graphics card, CPU load is negligible even if the image is being upscaled to a video wall, resulting in real time performance
- Dynamic input source selection
- Adjustments for color, brightness and contrast
- The application program is also built into the Datapath Wall Control video wall software
In the Box DATAPATH VisionSD8 8-Channel SD Video Capture Card (PCI Express) BNC16 Splitter Cable (26-pin Sub-D to 16 BNC) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionSD8 8-Channel SD Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONSD8 Specs | Card Format | 4 lane PCI Express | | Connectors | 1 x 26-pin Sub-D, video input
1 x 26-pin Sub-D, video input loop through output | | Capture Resolution | 8 x 720 x 576 x 16-bit, maximum | | Maximum Cards Supported | 16 (128 video capture channels), per system | | Frame Buffer Memory | 32 MB | | Supported Video Formats | PAL, NTSC, SECAM, or S-Video for SD inputs | | Power Requirements | Maximum current at 3.3 V - 0.25 A
Maximum current at 12 V - 0.6 A
Maximum power 8 W | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | Operating System Support | Windows XP Professional (x86 and x64), Windows Server 2003 (x86 and x64), Windows Vista (x86 and x64), Windows Server 2008 (x86 and x64), and Windows 7 | | MTBF | 100,000 hours | | Dimensions | 4.3 x 6.7" (110 x 170 mm) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 12.6 x 6.7 x 3.6" |
