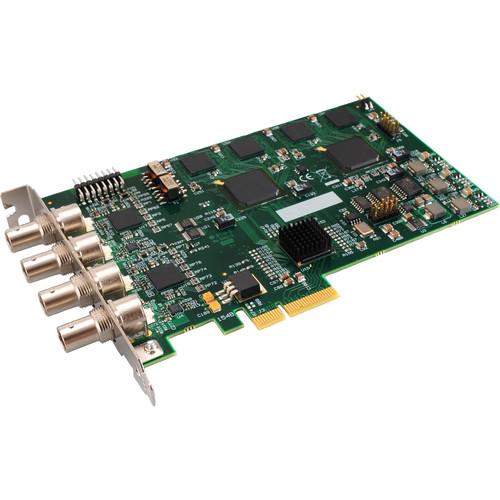

User Manual for DATAPATH VisionSDI2 Dual-Channel 3G HD SD Video Capture Card Click to enlarge the picture
Contents of the user manual for the DATAPATH VisionSDI2 Dual-Channel 3G HD SD
- Product category: Multiviewer Accessories DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Multiviewer Accessories
|
User manual for the DATAPATH VisionSDI2 Dual-Channel 3G HD SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|
Product description The VisionSDI2 Dual-Channel 3G/HD/SD Video Capture Card from DATAPATH is a dual-channel stand-alone PCI Express x4 plug-in HD-SDI video capture card. The card supports SD-SDI, HD-SDI and 3G-SDI, including 2K Digital Film Resolution modes. The VisionSDI2 has a 650 MB/s transfer bus bandwidth, and is suitable for a wide range of applications, such as display wall controllers, broadcasting, machine vision, and advanced medical applications.
The Vision range of video capture cards are fully integrated with the Datapath family of video wall multi-display products, providing high-resolution digital video support. The VisionSDI2 video capture is supplied with a software application for configuring the format of the input sources and displaying the data. Simply connect your video source into the capture card, run the VisionSDI2 application to automatically detect the video source format and display the captured video in a window on your desktop.
The Datapath Wall Control video wall software enables you to configure your multi-screen display, launch video overlays and create a video wall layout configuration. With the full version it is possible to save layouts and recall them for future use and also operate Wall Control video wall software on a remote PC via a network connection. The Wall Control presents a representational window of the entire display wall showing position and size of video windows. - Direct WDM streaming driver supports the following applications, to encode, record and stream video over networks or the internet:
- Dataton WatchOut
- Microsoft Expression Encoder
- VidBlaster
- AMCap and other DirectShow compatible software
- Four lane PCI Express bus with maximum data rate of 650 MB/s
- Loop-through-SDI BNC connections
- 64MB per channel, total 128MB on board frame buffer
- High performance DMA to system memory or direct graphics memory with scatter gather
- On board processor for real time mode and sync detection
- Audio output for each channel to an on-board SPDIF header (use with the Datapath Audio Output Module)
- 16 cropping windows per capture channel
- High quality scaling (7 x 5 Polyphase Filter)
- Input status indicator lights
- Long range, single co-ax cable support. (492' capturing 1080p, 984' capturing SD)
- Wall Control support and SDK
In the Box DATAPATH VisionSDI2 Dual-Channel 3G/HD/SD Video Capture Card (PCI Express) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH VisionSDI2 Dual-Channel 3G HD SD Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH VISIONSDI2 Specs | Card Format | PCI Express x4, plug-in card
PCI Express bus master with scatter gather DMA | | Connectors | 2 x BNC, SDI input
2 x BNC, SDI input loop through output | | Data Rate | 650 MB/s, maximum | | Bit Rate | Maximum SDI: 3 Gb/s | | Capture Resolution | 2048 x 1556 at 24 fps, maximum
1920 x 1080 at 60 fps, maximum | | Frame Buffer Memory | 64 MB per channel (total 128 MB) | | Input Detection | Supports SMPTE - 352 Payload Identifiers | | Pixel Format | RGB: 5-5-5, 5-6-5, or 8-8-8 (24 bit, 32 bit)
YUV: 4:2:2
MONO: 8 bit | | Update Rate | User defined. Captured frame rate will match the source providing maximum data rate (650 MB/s) is not exceeded
Multi-buffered to eliminate tearing artifacts | | Video Modes | SD-SDI (480i / 576i)
HD-SDI (up to 1080i)
3G-SDI (up to 1080p)
2k Digital Cinema modes | | Operating System Support | Windows XP, Windows Vista, Windows Server 2003, Windows Server 2008, Windows 7 and Windows 8 | | Power Requirements | Maximum current at 3.3 V - 0.45 A
Maximum current at 12 V - 0.85 A
Maximum power 12 W | | Temperature | Operating: 32 to 95°F (0 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90%, non-condensing | | MTBF | 100,000 hours | | Dimensions | 4.3 x 6.7" (110 x 170 mm) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 12.7 x 6.5 x 3.5" |
