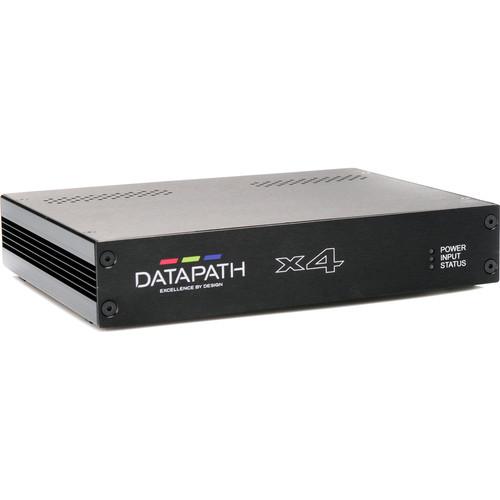

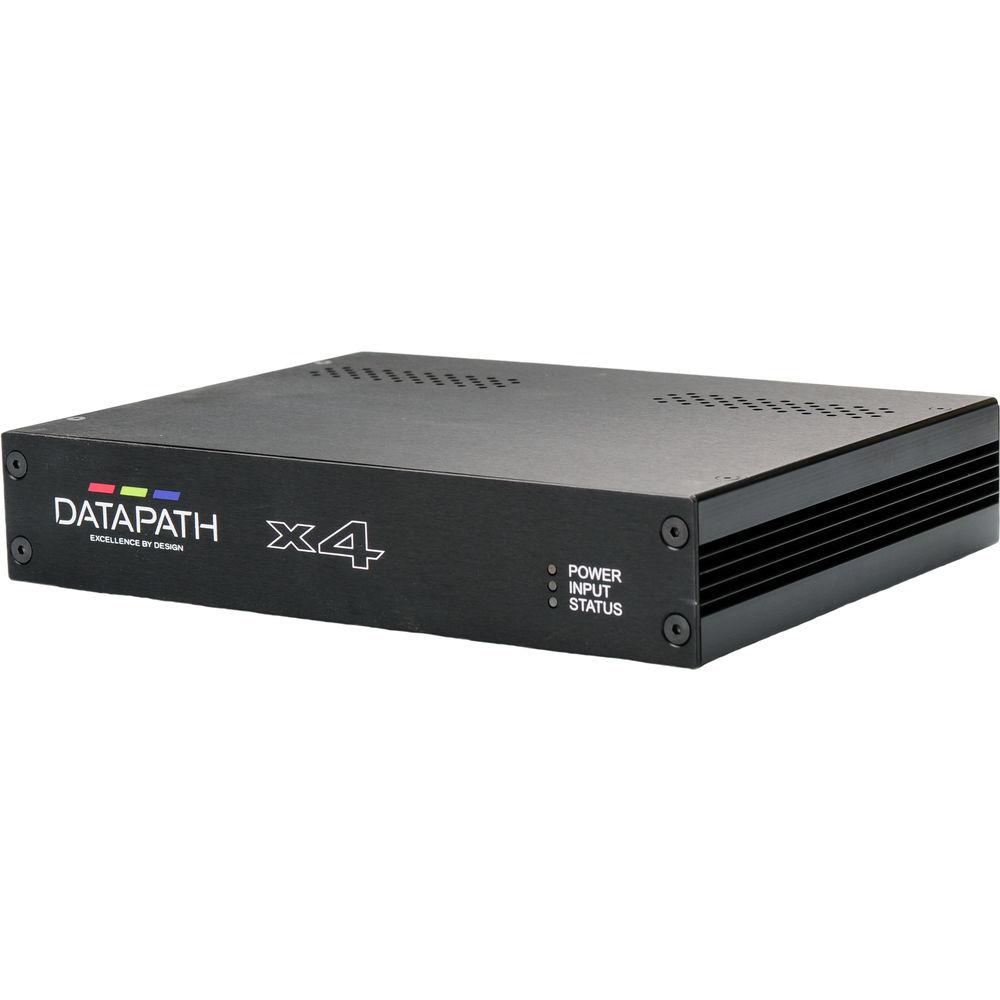

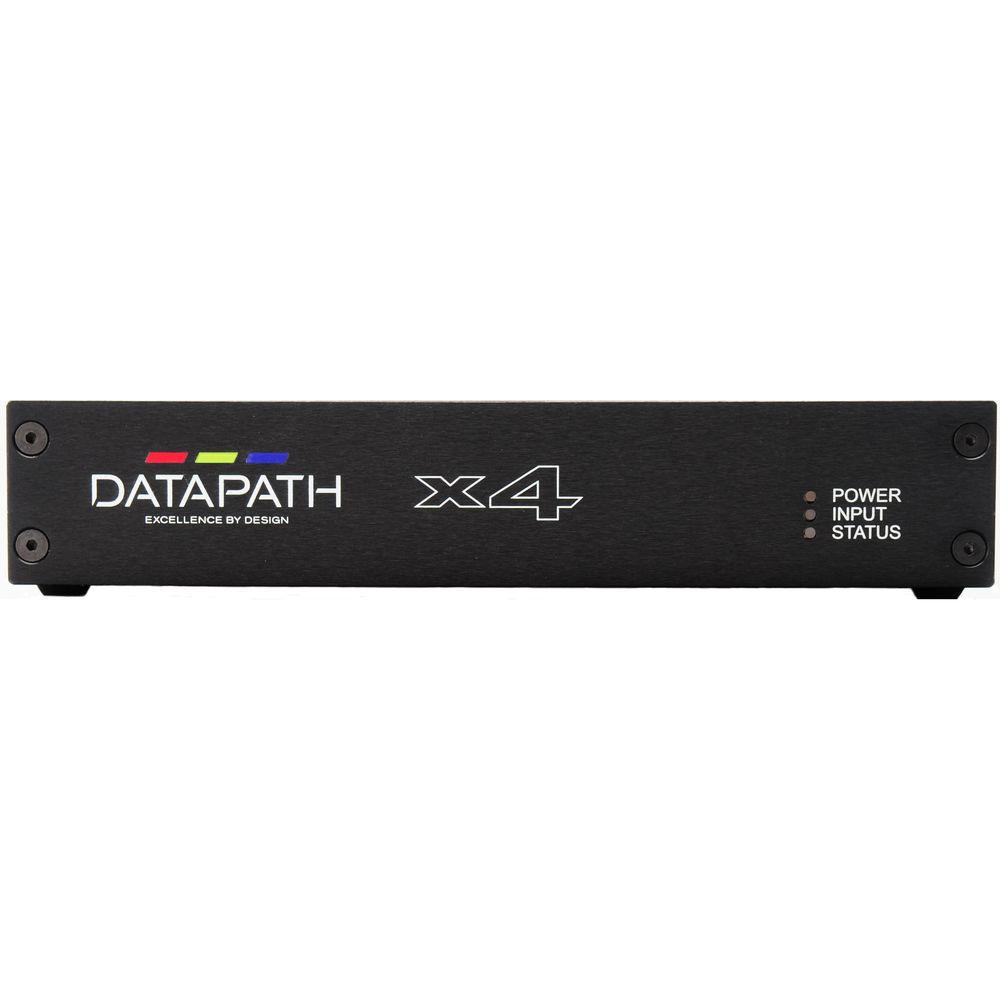

User Manual for DATAPATH x4 Display Wall Controller Click to enlarge the picture
Contents of the user manual for the DATAPATH x4 Display Wall Controller
- Product category: Monitors DATAPATH
- Brand: DATAPATH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DATAPATH Monitors
 |
User manual for the DATAPATH x4 Display Wall Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DATAPATH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!
|
Product description The x4 Display Wall Controller from DATAPATH is a stand-alone display wall controller that accepts a standard single or dual-link DVI input, and can flexibly display it across four output monitors via four DVI outputs.
Each output can be driven as DVI or analog RGB, and can represent an arbitrary crop region of the original input image. The output resolution and frame rate does not need to be related to that of the input, as the display controller will optionally upscale and frame-rate convert each cropped region independently. - Accepts dual-link DVI, single-link DVI or HDMI input
- Supports both DVI and analog RGB output monitors
- Supports image overlapping
- High quality scaler and frame rate converter
- Bezel or gap correction, arbitrary cropping, frame locking, and rotation & mirroring
In the Box DATAPATH x4 Display Wall Controller USB 2.0 Cable Type A to Type B Datapath CD 100-240V Universal Mains Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DATAPATH x4 Display Wall Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDATAPATH DATAPATH X4 Specs | Outputs | 4 x single-link DVI or Analog RGB, to 165 MP | | Resolution | Input Surface: 4k x 4k, maximum
Output Screen: Up to 2.5 MP (maximum 2048p in either direction | | Firmware | Updates supported via USB | | USB 2.0 | Full speed (12 bit/s) operation supported | | EDID Management | 128 byte | | DVI-D | 1 x dual-link capture, to 300 MP | | Scaling | Arbitrary Up Scaling: 64 x original surface area | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Cooling | Internal cooling fans | | Power Requirements | 5 VDC, 18 W | | Dimensions | 9.3 x 6.9 x 1.7" (23.5 x 17.5 x 4.4 cm) | | Weight | 2.42 lb (1.1 Kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 16.5 x 10.2 x 3.4" |
