User Manual for Dataprobe iBoot-G2 Web Power Switch Click to enlarge the picture
Contents of the user manual for the Dataprobe iBoot-G2 Web Power Switch
- Product category: Networking Accessories Dataprobe
- Brand: Dataprobe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dataprobe Networking Accessories
 |
User manual for the Dataprobe iBoot-G2 Web Power Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dataprobe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dataprobe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dataprobe product will considerably shorten its lifespan!
|
Product description Designed to get your network or other equipment back online following a crash, the iBoot-G2 Web Power Switch from dataprobe features automatic system restoration with AutoPing to detect when the system goes down. Furthermore, this web-based power switch can be accessed from virtually anywhere you have a network connection, thanks to cloud control, and with dual password protection for an admin and one other person, your switch remains secure. - Web Browser Power Control

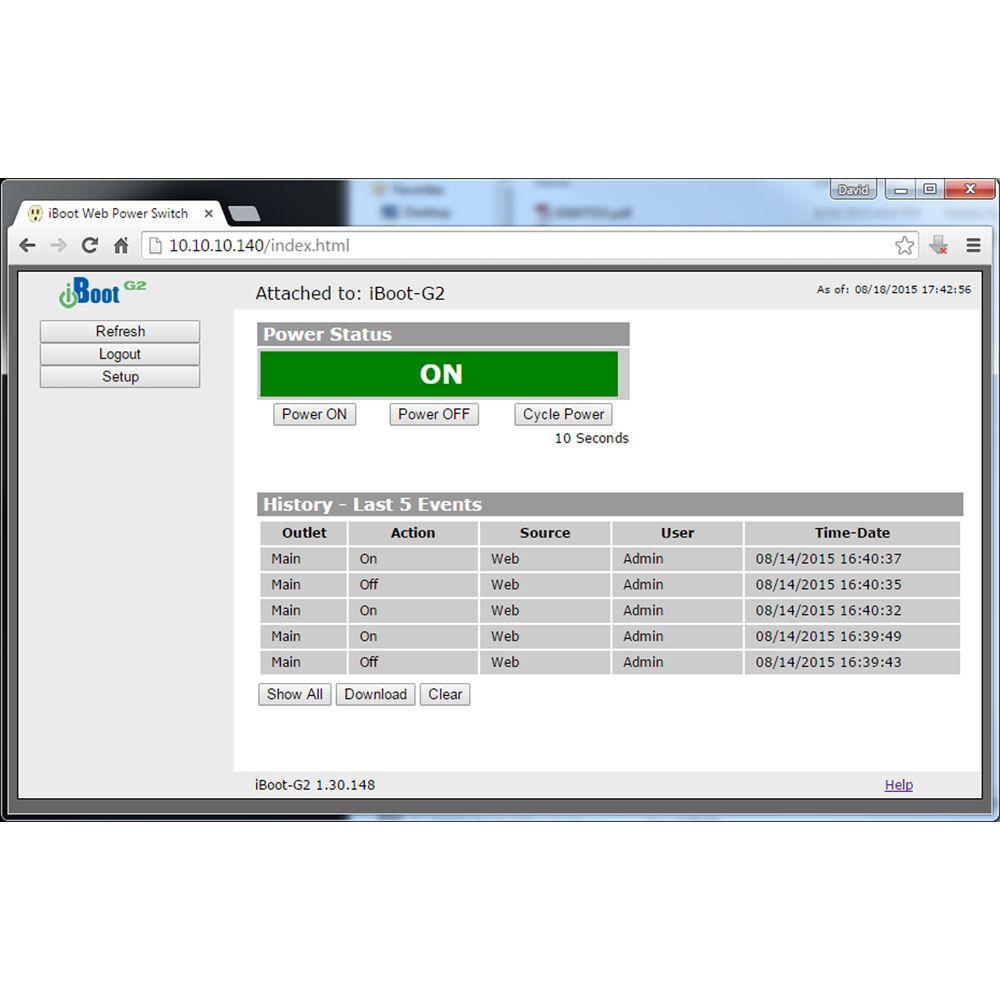

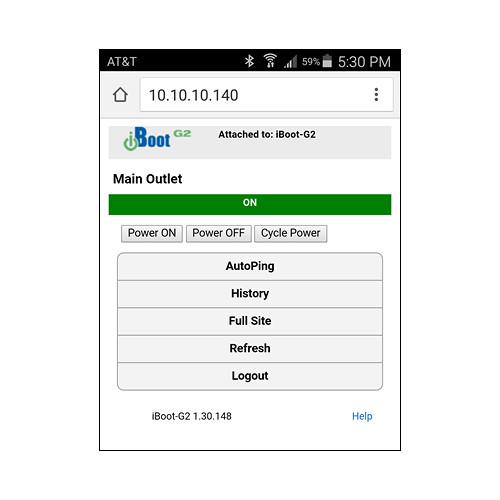

- Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required.
- Automatic System Restoral

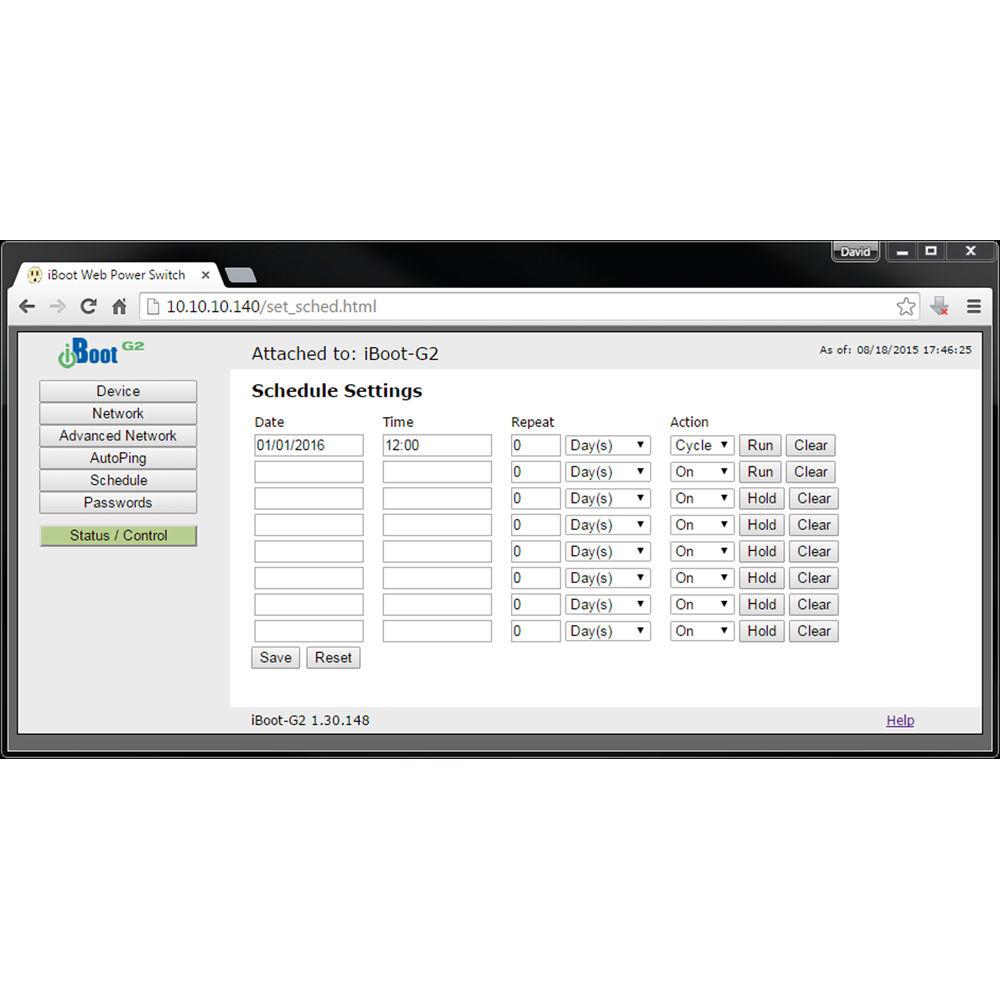

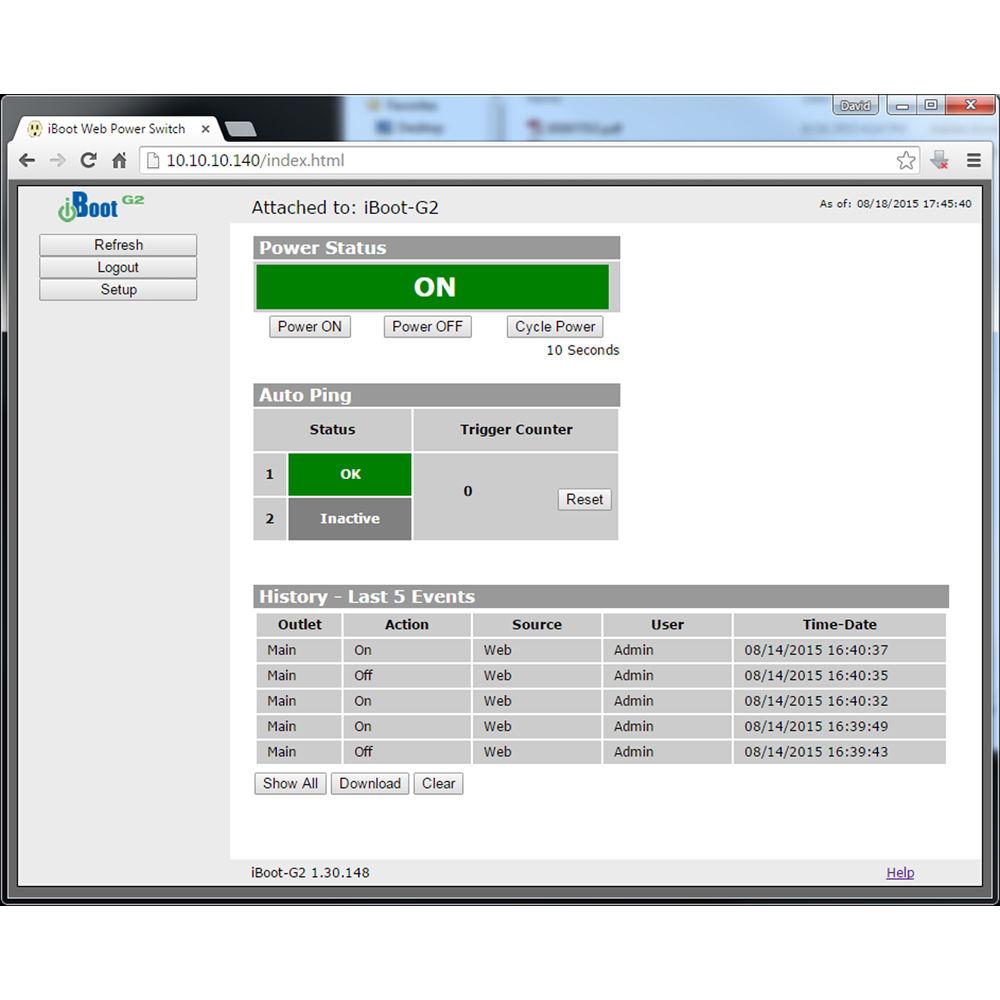

- AutoPing detects network or equipment outage and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night.
- Cloud Control
- Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime, anywhere.
- UL Listed
- Be confident to pass fire marshal and OSHA inspections.
- Dual Password Protected
- Separate user and administrator passwords. Deploy iBoots throughout your organization.
- IP Addressed, 10/100 Base-T
- Use on any Ethernet IP network, public or private. Supports DHCP and alternate ports for Web Access.
- Direct TCP and Software Control
- Control iBoot-G2 directly from your software application for a high degree of power control integration. Simple protocol is freely available. Use iBoot-G2 control program to call power control from any network management system including IPSentry, What'sUp Gold, etc.
- 110/220 VAC Operation
- Auto ranging power input. Deploy iBoot-G2 anywhere in the world. iBoot-G2 uses IEC320 Connectors and includes line and extension cords for North America.
- 12 Amp Switching
- Current for most Servers, Routers, Kiosks, etc. 10 Amps at 220 VAC.
UPC: 700220863781 In the Box Dataprobe iBoot-G2 Web Power Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dataprobe iBoot-G2 Web Power Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDataprobe iBoot-G2 Web Power Switch Specs | Power | Power
105 to 240 VAC auto ranging
Power Switching
12 Amps at 105-125 VAC
10 Amps at 210-240 VAC
Power Connectors
Power Inlet: IEC 320 C13 plug
Line cord for North America included
16 AWG X3C (6'/2 m)
Power Out: IEC 320 C14 receptacle
Extension Cord for North America included
16 AWG X3C (2'/60 cm) | | Network | 10/100Base-T, auto-sensing uplink/downlink
Cat 5 cable included (6'/2 m) | | Protocols | IP Addressable: DHCP or static
HTTP Web Server Built-In: Port assignable
Telnet Server Built-In: Port assignable
DxP Messaging Protocol: Port assignable
Auto-ping TCP protocol
Heartbeat detector protocol | | Browser | Form processing browser required
Mozilla 3.0 or IE 3.0 or greater | | Security | Dual password protected (user and admin) | | Reliability | MTBF: 320,000 hours
Operating Cycles: 10,000,000 mechanical, 100,000 at maximum load | | Compliance | UL/cUL UL60950
Listed I.T.E file no. E225914
CE directives 89/336/EEC, 92/31/EEC and 93/68/EEC
RoHS / WEEE
FCC part 15 class B | | Dimensions | 2.0 x 3.2 x 4.2" / 60 x 82 x 107 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.875 lb | | Box Dimensions (LxWxH) | 9.2 x 8.35 x 3.2" |
