User Manual for Dataprobe iBoot-PoE Gigabit Ethernet Extender with Reboot Click to enlarge the picture
Contents of the user manual for the Dataprobe iBoot-PoE Gigabit Ethernet Extender with
- Product category: Power over Ethernet (PoE) Dataprobe
- Brand: Dataprobe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dataprobe Power over Ethernet (PoE)
 |
User manual for the Dataprobe iBoot-PoE Gigabit Ethernet Extender with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dataprobe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dataprobe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dataprobe product will considerably shorten its lifespan!
|

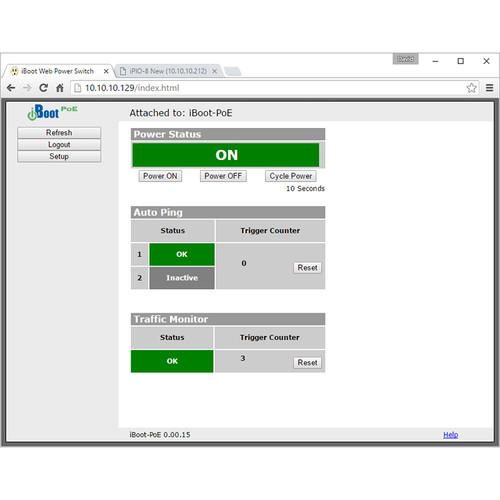

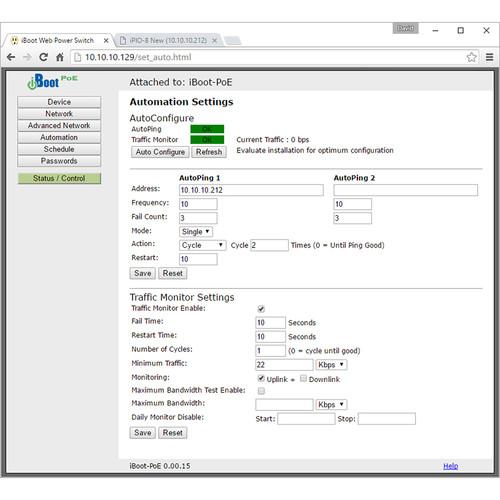

Product description The iBoot-PoE Gigabit Ethernet Extender with Reboot from dataprobe is an active PoE extender that complies with 802.3af and 802.3at standards to deliver up to 25.5W of power to your devices. Additionally, it is designed to protect non-PoE devices from accidental damage. Web browser power control enables immediate status and power control to any outlet. Autodetect for mobile web browsers enables quick reboots from your mobile device. AutoPing and TrafficMonitor tracks system health and provides automatic reboots when necessary.
The iBoot Cloud Service provides a single sign-on to access and control multiple iBoot devices from various locations. Separate user and admin passwords keep the system secure. A 6' Ethernet cable is included. - Works on any Ethernet IP network
- Direct TCP & software control

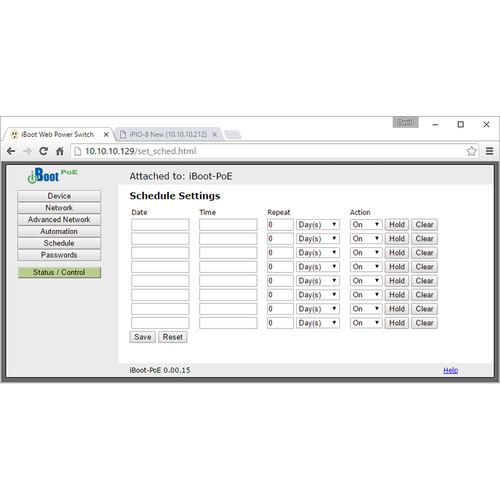

- Set schedules via simple web forms
- Supports DHCP and alternate ports for web access
- Power supply (available separately) enables this device to become a complete midspan injector
UPC: 700220864269 In the Box Dataprobe iBoot-PoE Gigabit Ethernet Extender with Reboot 6' Cat 5 Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dataprobe iBoot-PoE Gigabit Ethernet Extender with Reboot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDataprobe iBoot-PoE Specs | PoE Standard | PoE (IEEE 802.3af)
PoE+ (IEEE 802.3at) | | Power Switch | Up to 25.5 W | | Ethernet | 1000M Full- or Half-Duplex Autosensing Uplink/Downlink
6' / 1.8 m Cat 5 Cable Included | | Protocols | IP Addressable, DHCP or Static
HTTP Web Server Built-In, Port Assignable
Telnet Server Built-In, Port Assignable
DxP Messaging Protocol, Port Assignable
Auto-Ping TCP Protocol
Dataprobe Cloud Service Compatible | | Security | Dual Password (User and Admin) | | LED Indicators | LEDs on Network Jacks Indicate Network Status
NET Input: Power to the iBoot-PoE
PoE Output: Power Supplied to PD | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Compliance | RoHS/WEEE FCC Part 15 Class B CE | | Dimensions | 4.9 x 1.85 x 1.34" / 124 x 47 x 34 mm | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.1 x 4.1 x 3.3" |
