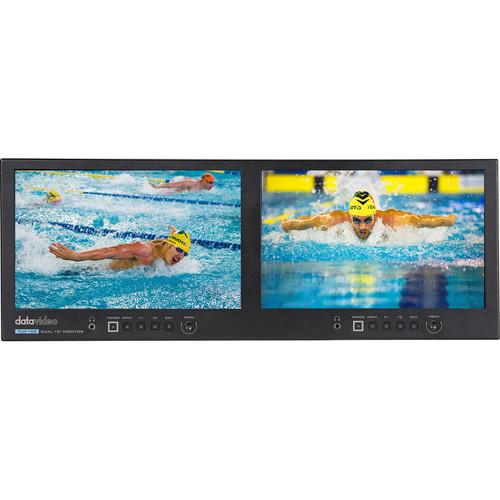

User Manual for Datavideo 10" Dual IPS LCD Monitor Click to enlarge the picture
Contents of the user manual for the Datavideo 10" Dual IPS LCD Monitor
- Product category: Production Monitors Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Monitors
|
User manual for the Datavideo 10" Dual IPS LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description The 10" Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks. -
- 1280 x 800 IPS panel resolution
- Dual monitor
- 4 RU rackmount
- Supports 3G-SDI and HDMI video input with loop-through output
- Column (YRGB peak), timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, check field
- SDI/HDMI cross conversion
- Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor
- Color temperature adjustment
- Front panel headphone jacks
- User-definable function buttons (F1, F2)
UPC: 672255007440 In the Box Datavideo 10" Dual IPS LCD Monitor AD Switch with AC Cord (12 VDC) Tally Converter Mounting Hardware Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo 10" Dual IPS LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-102 Specs | Screen Size | 10" (25.4 cm) | | Screen Type | Dual LCD, IPS panel | | Resolution | 1280 x 800 | | Viewing Angle (H/V) | 170°/170° | | Brightness | 300 cd/m2 | | Contrast Ratio | 800:1 | | Rack Mount | 4 RU | | Video Inputs | 1 x 3G/HD/SD-SDI
1 x HDMI | | Video Outputs | 1 x 3G/HD/SD-SDI, loop-through out
1 x HDMI, loop-through out | | Audio In/Out | Embedded audio on SDI and HDMI
Headphone jack | | Supported Input Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
480i (NTSC)
576i (PAL) | | Aspect Ratio | 16:9, 4:3 | | Special Features | Timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, SDI/HDMI cross conversion | | Tally LED Indicator | Live (red)
Cued (green) | | Power Requirements | 12 VDC, 26 W | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 22.6 x 13.1 x 5.3" |
