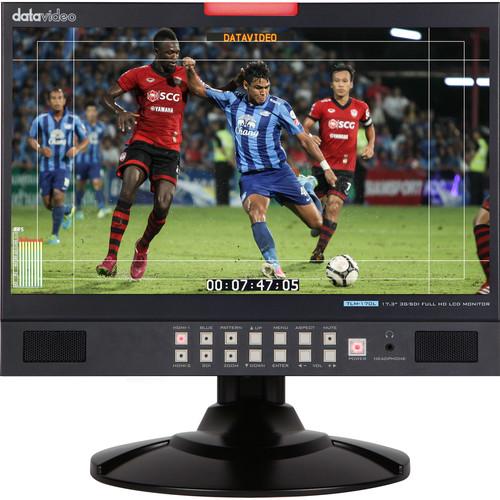

Product description The 17.3" 3G-SDI Full HD LCD Monitor from Datavideo is suitable for applications in a live production gallery, 19" rack monitoring, OB Van, or a video editing suite. It comes with a 3G-SDI video input with loop-through output and two HDMI inputs. The monitor supports embedded audio on SDI and HDMI (version 1.3). The monitor offers viewing angles of 70°/70°/60°/60° (left, right, top, and bottom) and brightness rating of 300 cd/m². This unit has a native resolution of 1920 x 1080. The contrast ratio of 400:1 showcases the monitor's ability to handle light and dark images on-screen. - Full HD (1920 x 1080p) LCD panel with Underscan and Overscan menu options
- 3G-SDI video input with loop-through output and two HDMI inputs
- Supports embedded audio on SDI and HDMI (Ver. 1.3)
- Front panel has a 3.5mm stereo headphone jack socket for discrete audio monitoring
- Front panel buttons allow quick and easy selection of source input as well as aspect ratio, blue only mode, pattern (Color Bars), menu, and audio controls
- Color temperature menu option has 3 modes (6500K, 9300K, 7500K, and user defined)
- OSD audio level peak meter for SDI and HDMI based digital audio inputs
- Individual adjustment of brightness, contrast, color saturation, and LED backlight level for each monitor
- On-screen overlays for frame marker 80%, 90%, 4:3 marker, Central Mark, and Cinema Zone Marker
- Bi-color tally light and 3.5mm jack tally input socket
- USB 2.0 port for easy update of firmware with a USB 2.0 pen drive
UPC: 672255007105 In the Box Datavideo 17.3" 3G-SDI Full HD LCD Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo 17.3" 3G-SDI Full HD LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-170L Specs | Size | 17.3" / 43.9 cm | | Resolution | 1920 x 1080 | | Viewing Angle | 60°/60°/70°/70° | | Luminance | 300 cd/m² | | Contrast | 400:1 | | Response Time | Not specified by the manufacturer | | Video Input/Output | 2 x HDMI input (Ver. 1.3)
1 x BNC input (3 Gb/s HD/SD-SDI)
1 x BNC output (loop-through, 3 Gb/s HD/SD-SDI) | | Signal Format | 1920 x 1080p: 60/59.94/50
1920 x 1080p: 30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50
720 x 480i (NTSC), 720 x 576i (PAL) | | Timing | VESA Timing: 1680 x 1050 (16:10)
1360 x 768 (16:9)
1280 x 1024 (5:4)
1280 x 1024 (4:3)
1280 x 960 (4:3)
1280 x 768 (4:3)
1152 x 864 (4:3)
1024 x 768 (4:3)
800 x 600 (4:3) | | Audio Input | 3G/HD/SD-SDI embedded audio
HDMI embedded audio (Ver.1.3)
1 x Internal speaker
1 x 3.5 mm Headphone socket
Note: Internal speaker circuit will automatically mute when headphones are connected | | Tally | 1 x Tally port
Bi-Color Tally Light: Live: Red
Cued: Green | | USB | 1 x USB (USB 2.0 FW auto upgrade) | | Power | 12 VDC | | Power Consumption | 16 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | VESA Mounting | 100 mm x 100 mm | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 15.8 x 10.2" / 40.1 x 25.99 cm | | Weight | 9.03 lb / 4.1 kg | | | | Package Weight | 13.9 lb | | Box Dimensions (LxWxH) | 28.8 x 16.4 x 6.6" |
