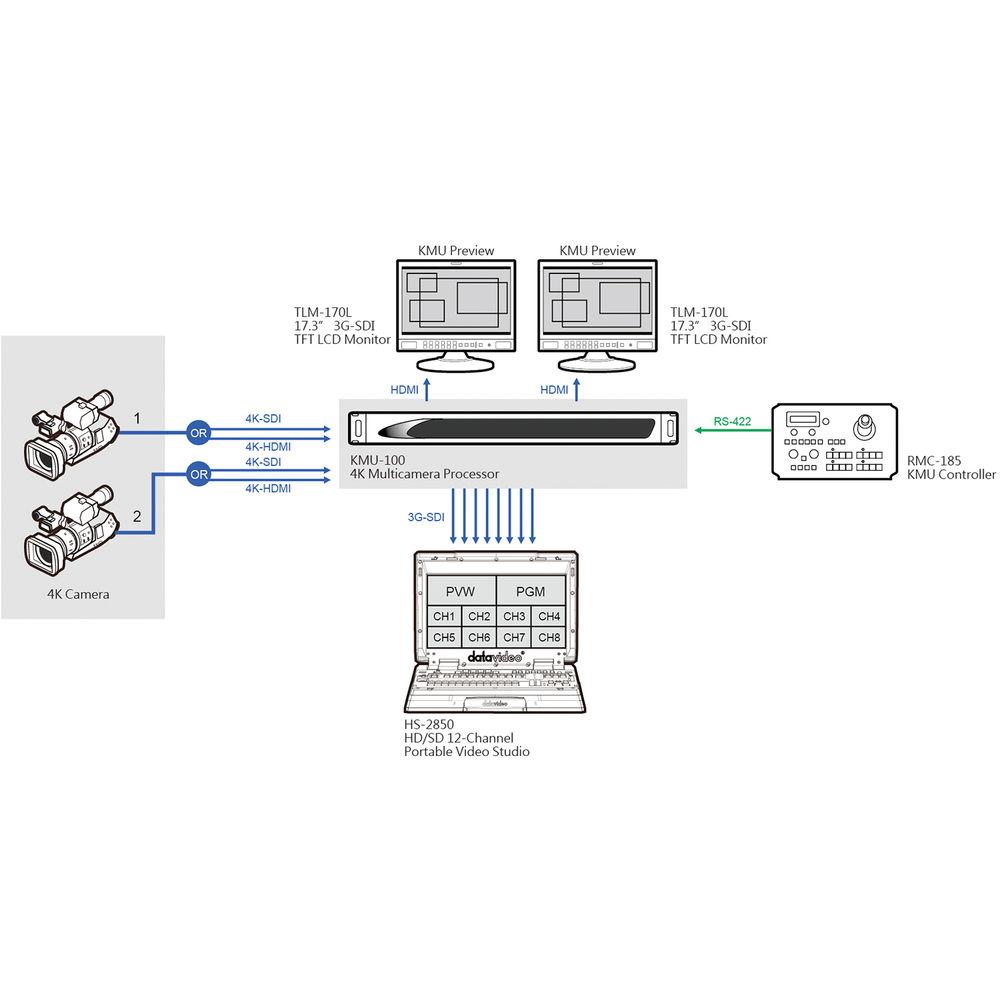

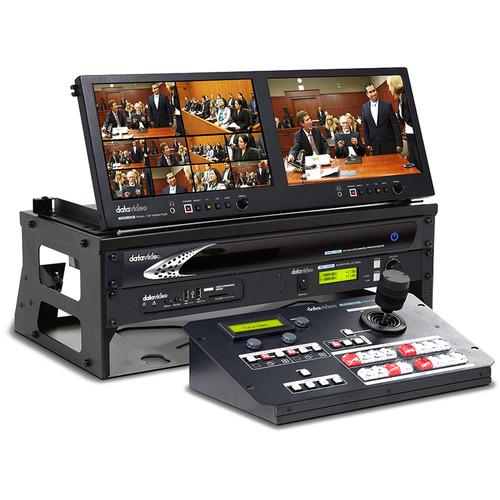

Product description The Datavideo 2-Camera 8-Shot Portable Video Production Studio Bundle consists of advanced video processing equipment for video productions. The KMU-100 only requires two UHD 4K camera inputs to derive eight separate virtual angles (four virtual angles per camera) that can be switched using a separately available video switcher. To back up the KMU-100 is the RMC-135 controller for positioning and controlling the virtual angles in real time. At the back end, the NVS-30 streaming encoder uses the ubiquitous H.264 codec for RTMP streaming and SD card recording. Video input and output can be monitored using the included TLM-102 dual 10.1" monitors. Finally, the AD-100M is an audio-delay mixer for synchronizing incoming audio with video. - KMU-100 UHD 4K Multicamera Unit The Datavideo KMU-100 UHD 4K Multicamera Unit is a 4K production solution that delivers multiple virtual Full HD 1080p60 scaled camera angles. The output of a single UHD 4K camera is connected to the KMU-100, which can display up to four 16:9 user-defined cropped windows that are then sent out as four separate HD signals through HD-SDI. These user-defined windows can be scaled to zoom in on a subject that you would like to highlight on the 4K signal.
An additional 4K camera can be connected to allow up to eight defined outputs from the two 4K signals. As an option, the Datavideo RMC-185, RMC-185+, or RMC-180 camera controller can be added to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal. You can set these shots up in advance and save them as presets, or use in real time. The unit is suitable for use in live events, places of worship, and broadcast applications. UPC: 672255007228 - RMC-185 KMU Controller The RMC-185 KMU Controller from Datavideo is a physical controller designed specifically for control of the KMU series 4K multi-camera processor. The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated controller allows operators to make smooth zoom and pan/tilt motions by using the joystick. The four presets hold scale, position, motion path, and speed of all four individual 3 Gb/s outputs per channel. The buttons allow start/stop/reset of motion in a predefined speed for every individual output.
- Provides easy and intuitive control of the KMU-100
- Easily pan, tilt, and zoom to create the user-defined windows on the 4K signal
- Switch between live and preview inputs
- LCD display shows setup menu options
- Three multiviewer modes: Preview, A to B Motion, and Quad
- Robust, rugged metal housing

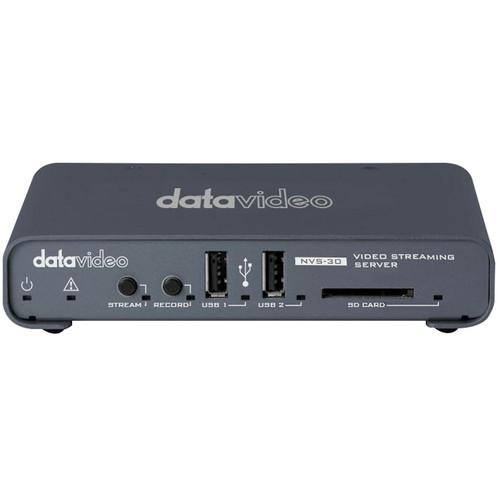

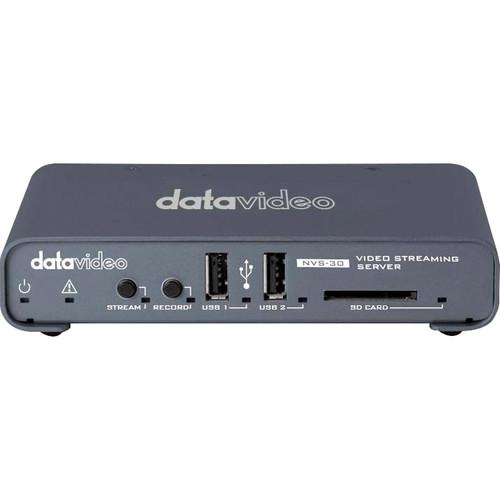

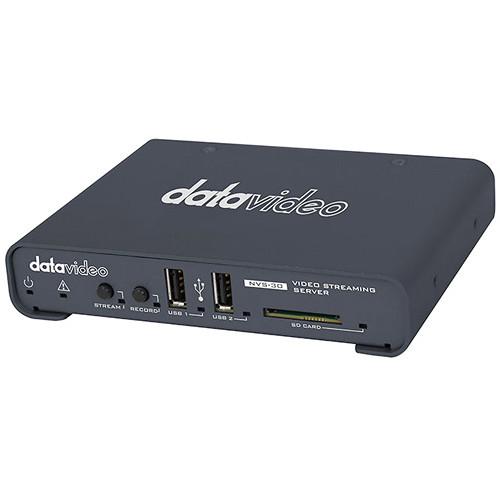

UPC: 672255007211 - NVS-30 H.264 Video Streaming Server Simultaneously stream directly to the web and record HD or SD video with Datavideo's NVS-30 H.264 Video Streaming Server. The NVS-30 encodes HDMI input video to H.264 in real time while simultaneously recording in MP4 or MOV to an SD card, USB drive, or network drive. Streaming is supported at rates up to 20 Mb/s; recording is supported at rates up to 30 Mb/s. The NVS-30 accepts video from an HDMI source with support for embedded audio, or from the mini-jack input. Scaling and de-interlacing can be accomplished on any video input. Features include front-panel push buttons, a compact form factor, and both browser and smartphone remote control.
Features - Encoding Controls
- GOP size and structure
Variable bit rate support
Average maximum/minimum data rate controls
Deblocking filter - H.264
- High-quality HD / SD H.264 network streaming; H.264 / AVC video CODEC, up to High Profile Level 4.0
- Embedded or External Audio
- Audio inputs: select embedded or external audio source
- GOP Structure Support
- Supports 3 types of GOP structure: IBBP, IPPP and IBP
- Deinterlacing Support
- Supports deinterlace video streaming for progressive output
- Easy-to-Use Web User Interface
- Web UI for system configuration and FW upgrade
- Front Panel Button Control
- Front panel control for recording and streaming
- Video Scaler
- Flexible video scaler presets for streaming out
- USB Storage Support
- Attach USB storage device (up to 1TB storage device)

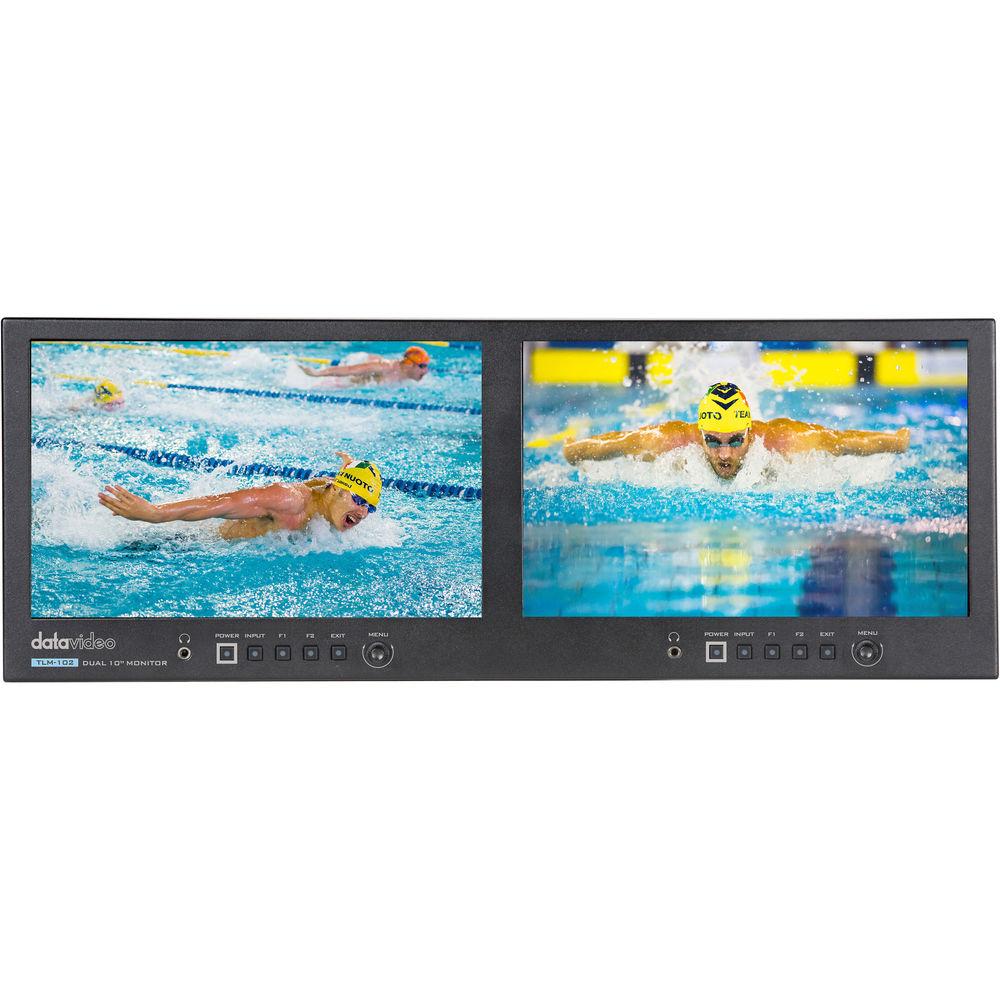

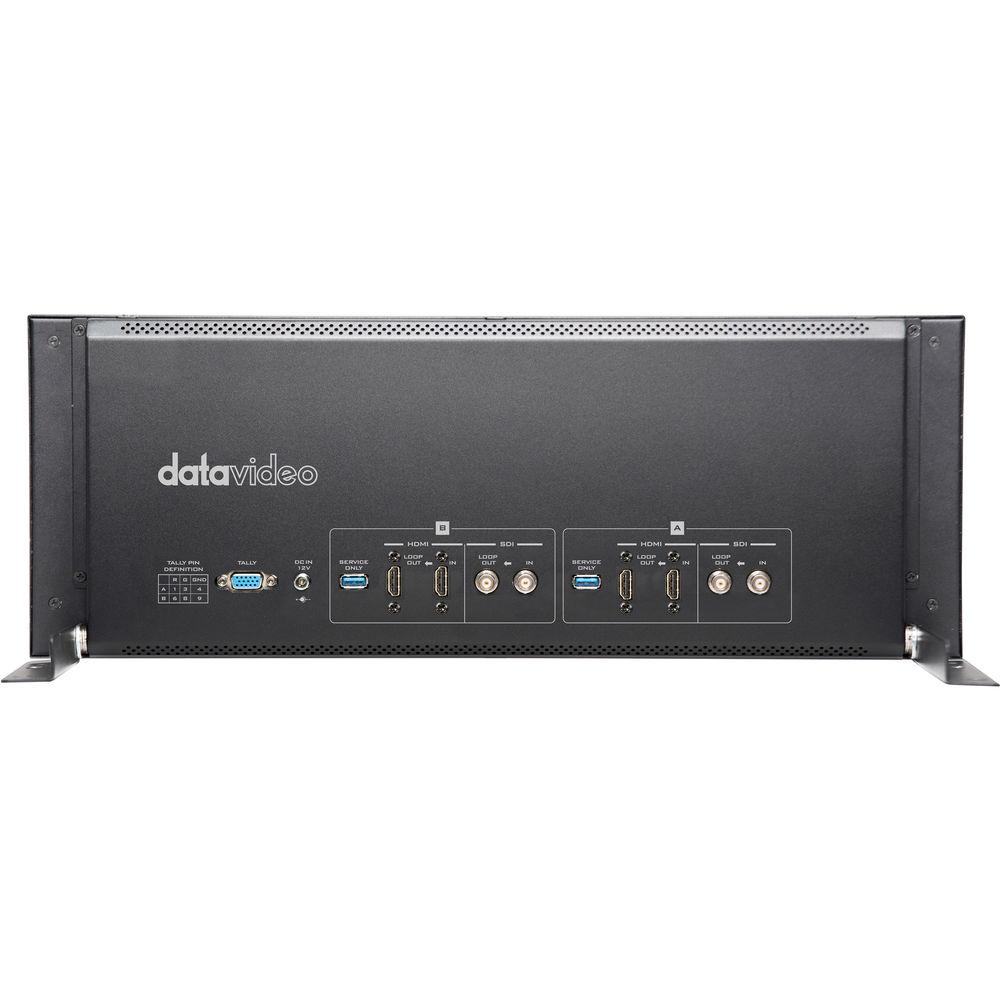

UPC: 672255007174 - 10" Dual IPS LCD Monitor The 10" Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks.
-
- 1280 x 800 IPS panel resolution
- Dual monitor
- 4 RU rackmount
- Supports 3G-SDI and HDMI video input with loop-through output
- Column (YRGB peak), timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, check field
- SDI/HDMI cross conversion
- Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor
- Color temperature adjustment
- Front panel headphone jacks
- User-definable function buttons (F1, F2)

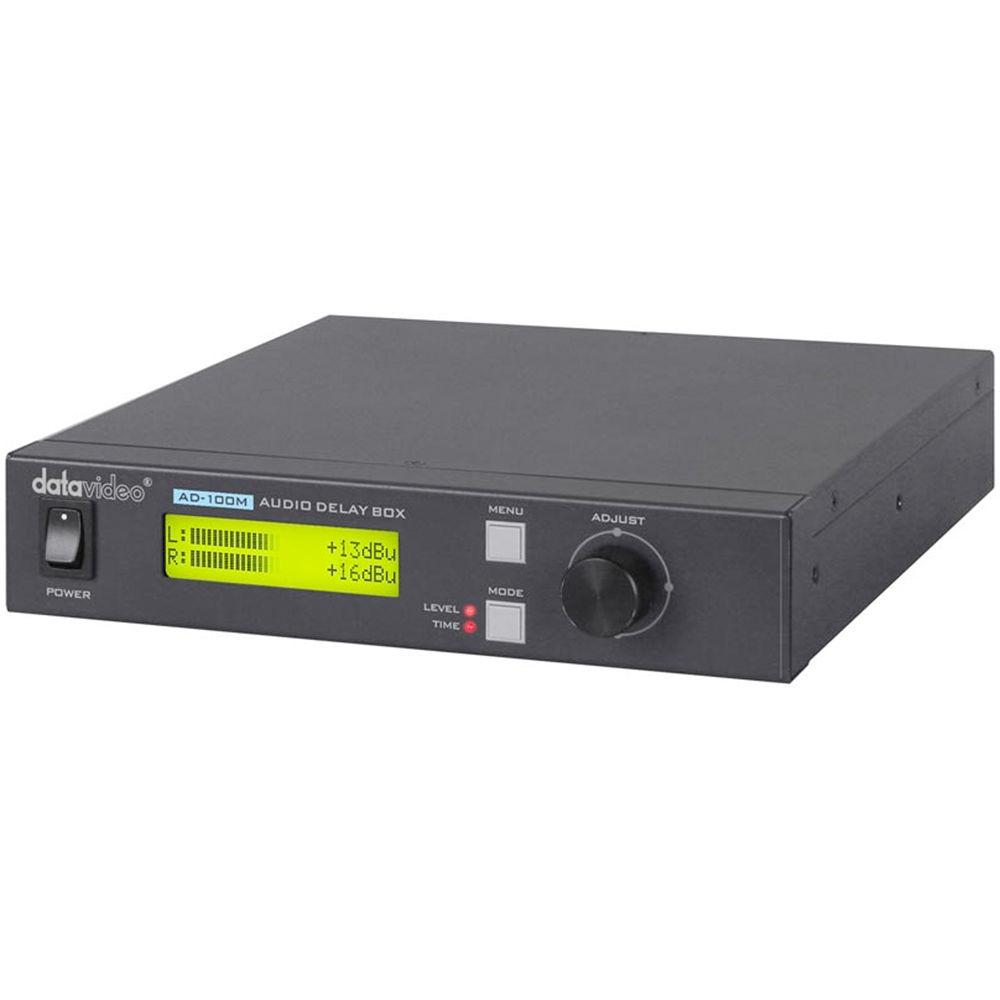

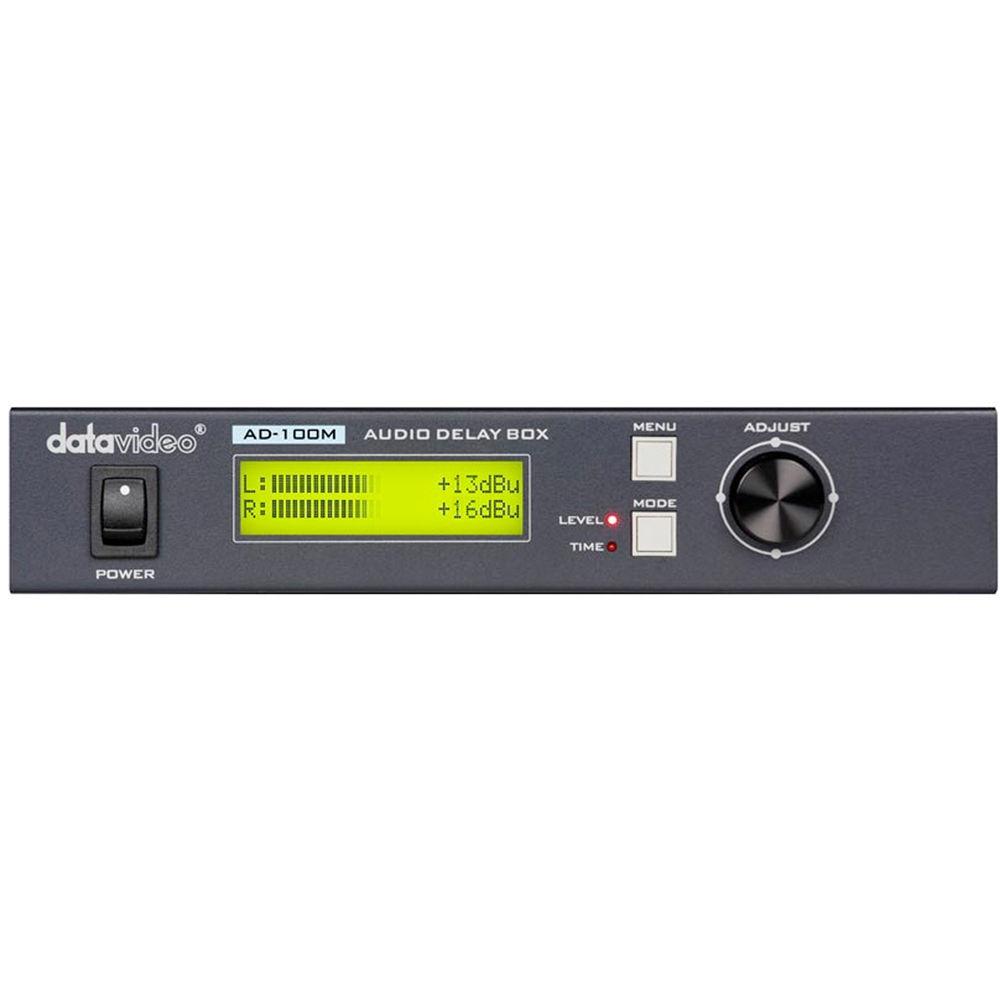

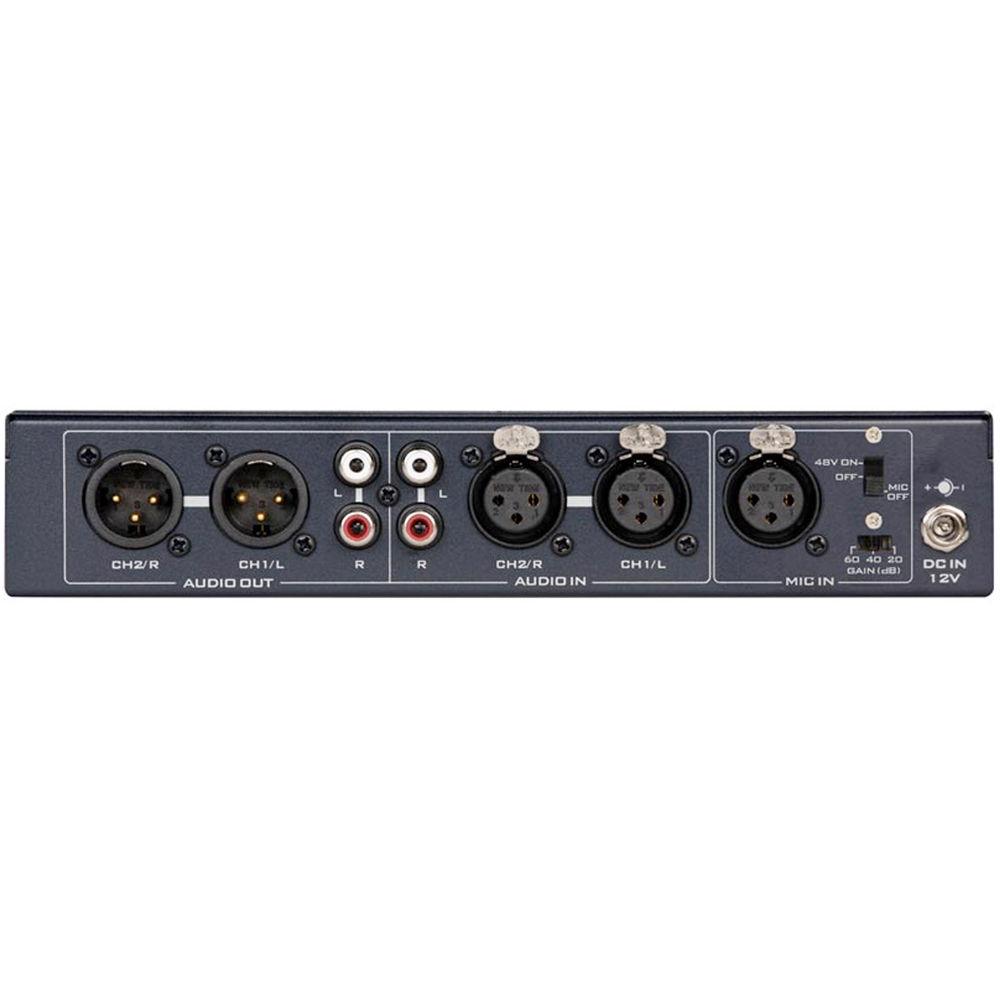

UPC: 672255007440 - AD-100M Audio Delay Box with Microphone Input The Datavideo AD-100M Audio Delay Box allows you to sync an audio or mic signal to video. Its easy-to-use design features a menu/mode LCD and only a few controls such as an "Adjust" dial, and it's housed in a rugged, metal enclosure for use in the studio or in the field. It offers an audio delay time from 0 to 700 ms.
- Key Features
-
- Audio delay box with microphone input
- 2 x XLR balanced audio input
- 2 x RCA (L/R) unbalanced audio input
- 1 x XLR mic input
- 2 x XLR balanced audio output (mic mixed)
- 2 x RCA (L/R) unbalanced audio output (mic mixed)
- LCD display for menu and mode selection setting
- Output volume attenuating from 0 to -60 dBu
- Audio delay time from 0 to 700 ms
- 1 KHz test tone output attenuating from 26 to -34 dB
- 12 VDC power input
UPC: 672255006825 In the Box Bundle Items KMU-100 UHD 4K Multicamera Unit - AD Switch DC 12V with AC Cord
- Limited 1-Year Warranty, with 2-Year Extension If Registered Within 30 Days
RMC-185 KMU Controller - D-Sub 9-Pin to RJ45 Cable
NVS-30 H.264 Video Streaming Server - Limited 1-Year Warranty, Extendable to 3-Years with Product Registration
10" Dual IPS LCD Monitor - AD Switch with AC Cord (12 VDC)
- Limited 1-Year Warranty, Extendable to 2 Years with Registration
AD-100M Audio Delay Box with Microphone Input - Additional 2-Year Warranty with Registration within 30 Days
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo 2-Camera 8-Shot Portable Video Production Studio Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - KMU-100 UHD 4K Multicamera Unit
| Video In | 2 x 12G/HD-SDI
6 x 3G/HD-SDI
2 x HDMI 2.0 (with Support for UHD 4K60) | | Video Out | 2 x 12G/HD-SDI (Supports Single-Link 4:2:2)
6 x 3G-SDI (Supports Single-Link, Dual-Link, and Quad-Link 4:2:2)
2 x HDMI 1.4 (Multiview Monitoring) | | Supported Resolutions | 3840 x 2160p: 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60 | | Audio | SDI Input (16 Channels)
SDI Output (16 Channels) | | Sync Input | Sync Input (Genlock): Blackburst or Tri-Sync | | Computer Interface | 1 x Ethernet RJ45 (Control, Configuration, and Updates)
1 x RS-232/RS-422 | | Controller | RMC-185/RMC-185+
RMC-180 | | Power Supply | 12 VDC, 5 A | | Dimensions (W x D x H) | 19.1 x 8.7 x 1.9" / 48.4 x 22.2 x 4.9 cm | | | | Box Dimensions (LxWxH) | 22.3 x 13.1 x 7.0" | - RMC-185 KMU Controller
| Dimensions | 12.2 x 5.1 x 6.7" (31 x 13 x 17 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Box Dimensions (LxWxH) | 14.9 x 10.4 x 8.2" | - NVS-30 H.264 Video Streaming Server
| | | Video Input | HDMI: 1 x HDMI type A HDCP and SD video sources are not supported via this HDMI input. | | Video Output | Delay: 2 frames | | Supported Video Input Formats | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 29.97/25
720p: 60/59.94/50 | | Audio Input | HDMI: Pass-through of first 2 embedded channels
Unbalanced Analog Stereo Input: 1 x 1/8" / 3.5 mm jack | | Audio Output | HDMI: Pass-through of all embedded channel
Unbalanced Analog Stereo Input: 1 x 1/8" / 3.5 mm jack | | | | Resolutions | Selectable Range: 128 x 128 to 1920 x 1080 | | Video Bit Rate Range | Record Only Mode: 100 kb/s to 30 Mb/s
Stream Only Mode: 100 kb/s to 20 Mb/s
Independent Stream and Record Mode:
Recording: 100 kb/s to 30 Mb/s
Streaming: 100 kb/s to 10 Mb/s
Maximum Combined Total Bit Rate: 30 Mb/s When both streaming and recording resolutions are above 1280 x 720, the encoding parameters must be identical. | | Encoding Frame Rates | 1:1, 1/2, 1/4 of input rates Maximum of 30 fps at 1920 x 1080 encoding resolution. | | Encoding Profiles | Baseline, Main, High | | Encoding Controls | Support Levels: 4.1, 4.0, 3.1, 3.0, 2.0 | | | | Standard | AAC-LC | | Sample Frequency | 48, 44.1, 32 kHz (when digitized from analog source) | | Channels | 2-channel stereo (L/R) | | Audio Bit Rate Range | 32 to 256 kb/s | | | | Video Scaler | Streaming / Recording:
10-bit down-scaler, de-interlacer | | | | File Type | MP4, MOV
2 channels embedded AAC audio | | Recording File Size | Maximum Length: 300 minutes
File Segment: 1 to 300 minutes Continuous recordings will be split into sequential file segments. | | | | LAN Connectors | 10/100/1000 BaseT Ethernet: 1 x RJ45 (static or DHCP addressing) | | Protocols | RTMP, RTSP/RTP
IPv4 support
Unicast and multicast (3 to 10 clients) | | | | Recording Media | USB: 2 x USB 2.0
File system: NTFS (3.1), FAT32
SD/SDHC, NTFS-formatted SDXC Cards:
1 x card slot (Class 10 highly recommended)
Network Mapped Drives:
Windows: Windows Share protocols
Mac, Linux: NFS protocols USB 3.0 devices supported at USB 2.0 speeds | | | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C
20-80% relative humidity (non-condensing) | | AC Power | 5 VDC, 3 A | | Dimensions (L x D x H) | 5.6 x 4.3 x 1.2" / 14.2 x 10.9 x 3.1 cm
(including rubber feet) | | Weight | 10.6 oz / 300 g | | | | Box Dimensions (LxWxH) | 9.8 x 5.8 x 3.6" | - 10" Dual IPS LCD Monitor
| Screen Size | 10" (25.4 cm) | | Screen Type | Dual LCD, IPS panel | | Resolution | 1280 x 800 | | Viewing Angle (H/V) | 170°/170° | | Brightness | 300 cd/m2 | | Contrast Ratio | 800:1 | | Rack Mount | 4 RU | | Video Inputs | 1 x 3G/HD/SD-SDI
1 x HDMI | | Video Outputs | 1 x 3G/HD/SD-SDI, loop-through out
1 x HDMI, loop-through out | | Audio In/Out | Embedded audio on SDI and HDMI
Headphone jack | | Supported Input Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
480i (NTSC)
576i (PAL) | | Aspect Ratio | 16:9, 4:3 | | Special Features | Timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, SDI/HDMI cross conversion | | Tally LED Indicator | Live (red)
Cued (green) | | Power Requirements | 12 VDC, 26 W | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 22.6 x 13.1 x 5.3" | - AD-100M Audio Delay Box with Microphone Input
| Audio Input | 3 x XLR, 2 for line in, 1 for mic in (gain +20/40/60 dB)
2 (L/R) x RCA | | Audio Output | 2 x XLR 2 (L/R) x Unbalanced RCA | | Display | SMT LCD | | Output Volume | Attenuating from 0 to -60 dBu | | Audio Delay | Up to 700 ms | | Chassis | Rack-mountable with optional RMK-1 rackmount kit | | Power | 12 VDC, 18 W | | Dimension (L x W x H) | 8.3 x 6.7 x 1.7" / 211 x 220 x 42 mm | | | | Box Dimensions (LxWxH) | 11.05 x 10.45 x 5.2" |
