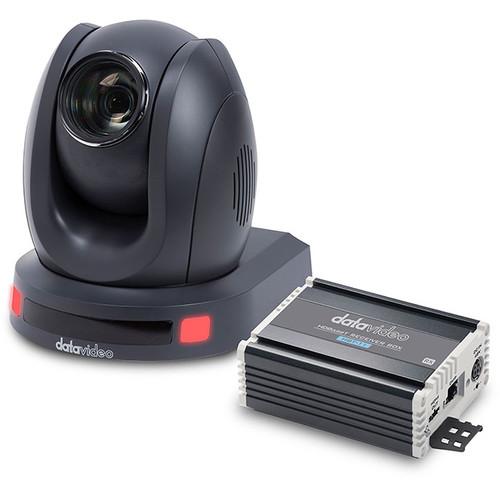

User Manual for Datavideo 20x HDBaseT PTZ Camera with HDBaseT Receiver Box and Power Supply Click to enlarge the picture
Contents of the user manual for the Datavideo 20x HDBaseT PTZ Camera with
- Product category: PTZ Cameras Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo PTZ Cameras
|
User manual for the Datavideo 20x HDBaseT PTZ Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description This datavideo 20x HDBaseT PTZ Camera with HDBaseT Receiver Box and Power Supply allows you to transmit 1080p video up to 300' over a Cat 6 Ethernet cable. The included camera features a 1/2.8" CMOS sensor with 2.07 MP resolution. The built-in zoom lens features an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom.
The included HBT-11 receiver with its power adapter can power the camera remotely over an Ethernet cable. It accepts an input signal from the camera and converts it to an HDMI signal. The pair allows you to place the camera about 300' away from the HDMI display device without having to worry about video repeaters, or power cables. - PTZ Camera
-
- 20x Optical Zoom, 10x Digital Zoom
- Advanced noise reduction
- Audio input interface
- H.264/H.265 video compression for streaming
- Multiple Network Protocols: RTSP, RTMP protocols and support; easy to link to a streaming media server
- Compatible with HS-1500T and HS-1600T HDBaseT Portable Video Studios, and it's remote-controllable by RMC-300 and RMC-180 PTZ Camera Controllers
- Gamma Control: Off/Normal
- Iris Control: Auto/Manual
- Digital Noise Reduction
- On-Screen Display (OSD): English, Simplified Chinese
- White Balance: Auto / Manual / One Push / 3000K / 4000K /5000K / 6500K
- AGC/Gain Control: Auto/Manual
- Mirror/Flip Image: yes
- Focus Mode: Auto/Manual
- Panning/Tilting Range: Pan 340°, Tilt +90° to -30°
- Panning/Tilting Speed: Pan 0.1~60°/sec, Tilt 0.1~30°/sec
- Preset: 255 Positions
- Maximum Aperture: F1.6 to F3.5
- Image Compensation: backlight compensation
- HDBaseT Receiver
-
- Supports video, audio, DVIP Ethernet control, RS-422/232 and POE over a single Cat 5e/6/6a/7 cable
- PoE Power supply 48V input from HBT-11 Receiver
- Dimensions of HBT-11: 5.19 x 3.35 x 1.78"
In the Box Datavideo 20x HDBaseT PTZ Camera with HDBaseT Receiver Box and Power Supply HDBaseT PTZ Camera with 20x Optical Zoom HDBaseT Receiver AC Cord 48 VDC Power Adaptor Phoenix to RJ45 Connector Limited 1-Year Warranty, Extendable to 2 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo 20x HDBaseT PTZ Camera with HDBaseT Receiver Box and Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo PTC-140TH Specs | | | Image Sensor | 1-Chip 1/2.8" CMOS Sensor | | Sensor Resolution | 1920 x 1080 (2.07 MP) | | Signal-to-Noise Ratio | 55 dB | | Minimum Illumination | 0.5 lux | | White Balance Range | 3000 to 6500K | | | | Max Digital Zoom | 10x | | Flip / Mirror Support | Image Flip, Mirror (Vertical) | | | | Optical Zoom Ratio | 20x | | Focal Length | 5.2 to 98mm | | Field of View | Horizontal: 54.7 to 3.3
