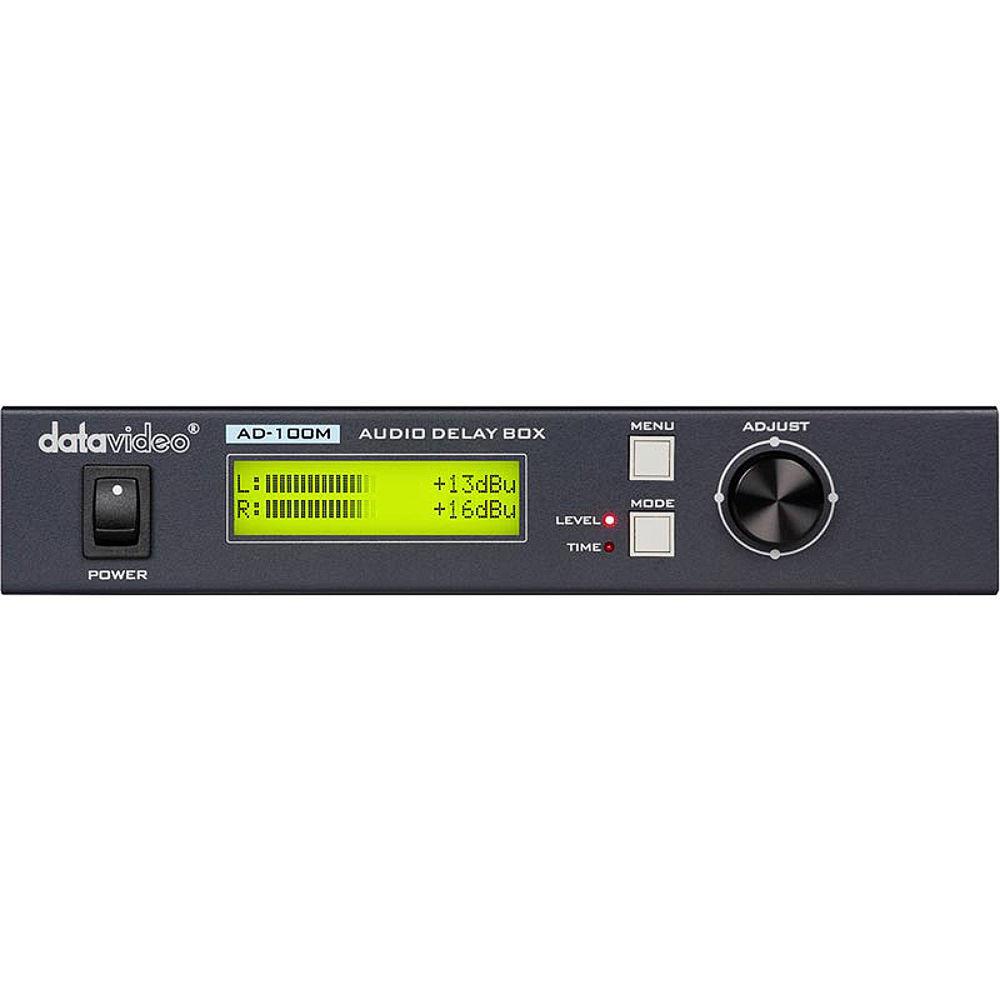

Product description The Datavideo AD-100M Audio Delay Box allows you to sync an audio or mic signal to video. Its easy-to-use design features a menu/mode LCD and only a few controls such as an "Adjust" dial, and it's housed in a rugged, metal enclosure for use in the studio or in the field. It offers an audio delay time from 0 to 700 ms. - Key Features
-
- Audio delay box with microphone input

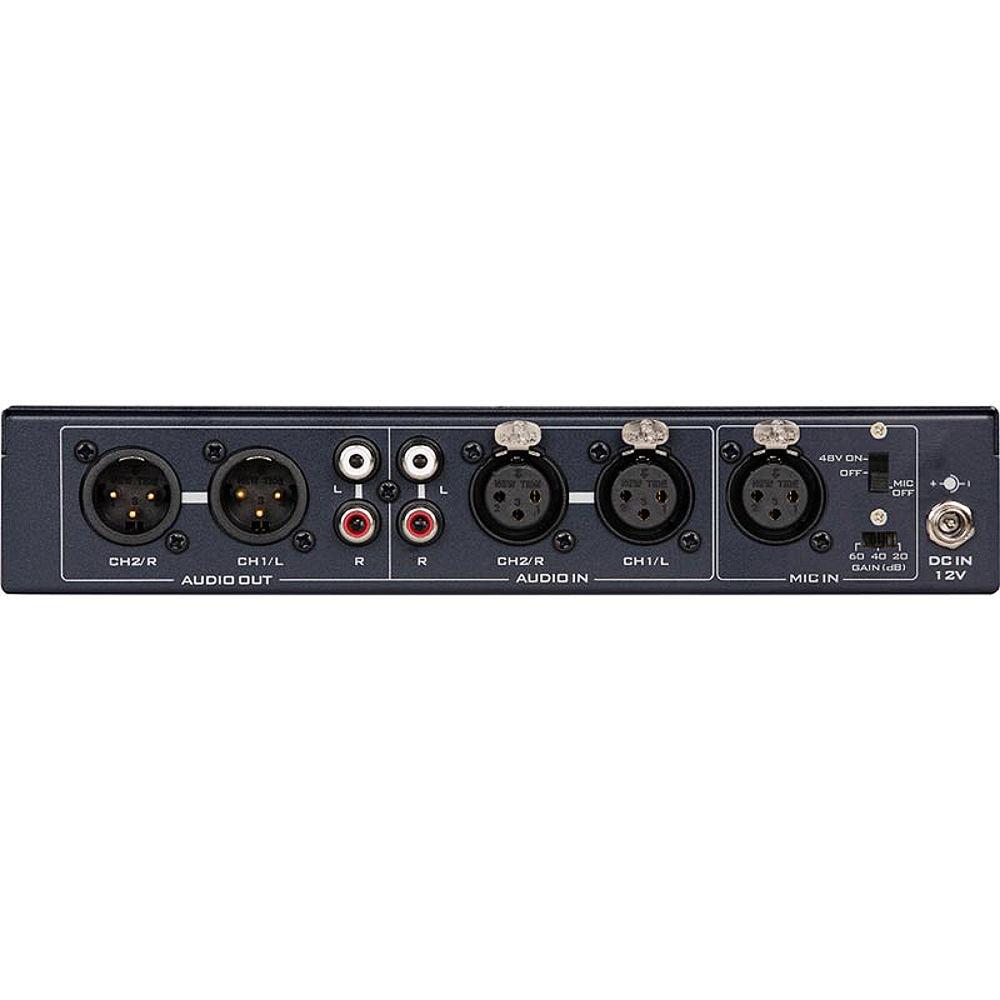

- 2 x XLR balanced audio input
- 2 x RCA (L/R) unbalanced audio input
- 1 x XLR mic input
- 2 x XLR balanced audio output (mic mixed)
- 2 x RCA (L/R) unbalanced audio output (mic mixed)
- LCD display for menu and mode selection setting
- Output volume attenuating from 0 to -60 dBu
- Audio delay time from 0 to 700 ms
- 1 KHz test tone output attenuating from 26 to -34 dB
- 12 VDC power input
UPC: 672255006825 In the Box Datavideo AD-100M Audio Delay Box with Microphone Input 12V Power Adapter Limited 1-Year Warranty Additional 2-Year Warranty with Registration within 30 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo AD-100M Audio Delay Box with Microphone Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo AD-100M Specs | Audio Input | 3 x XLR, 2 for line in, 1 for mic in (gain +20/40/60 dB)
2 (L/R) x RCA | | Audio Output | 2 x XLR 2 (L/R) x Unbalanced RCA | | Display | SMT LCD | | Output Volume | Attenuating from 0 to -60 dBu | | Audio Delay | Up to 700 ms | | Chassis | Rack-mountable with optional RMK-1 rackmount kit | | Power | 12 VDC, 18 W | | Dimension (L x W x H) | 8.3 x 6.7 x 1.7" / 211 x 220 x 42 mm | | | | Package Weight | 4.165 lb | | Box Dimensions (LxWxH) | 11.05 x 10.45 x 5.2" |
