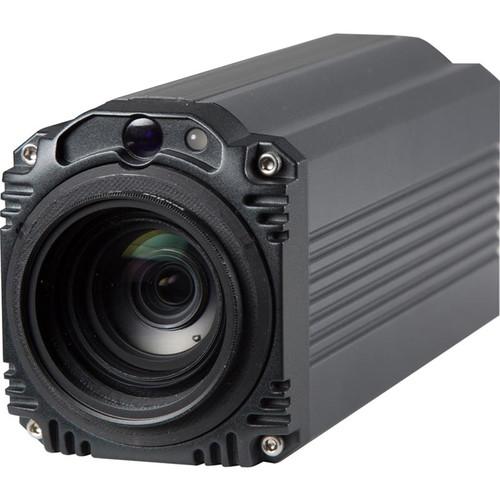

Product description The BC-200 4K Block Camera from Datavideo captures 4K QFHD video at resolutions up to 2160p/30. This compact camera features a 2/3", progressive-scan CMOS Exmor R-type image sensor, two HDMI outputs, 8.9MP resolution, and RS-422, VISCA, and IR control (IR remote control available separately). The BC-200's 12x optical zoom provides a focal length of 3.9-46.8mm with an aperture of f/1.8 to f/2.0. Additional features include red and green LED tally lights, digital noise reduction, and auto/manual gain control, focus, and white balance modes. The BC-200 Camera's rugged metal housing will stand up to repeated use. Features - Compact 4K-resolution (3840 x 2160) camera supports resolutions up to 2160p/30
- 2/3" Exmor R CMOS sensor with 8.9MP resolution
- Dual, synchronous HDMI outputs
- 12x optical zoom with 3.9-46.8mm focal length and f/1.8 to f/2.0 aperture
- Additional features include red/green tally lights, and VISCA, DVIP, or IR remote control
UPC: 672255007280 In the Box Datavideo BC-200 4K Block Camera with IR Remote Limited 1-Year Warranty (2-Year with Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo BC-200 4K Block Camera with IR Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo BC-200 Specs | | | Supported Resolutions | 2160p: 29.97/25
1080p: 59.94/50/29.97/25
1080i: 59.94/50/29.97/25 | | Image Sensor | 2/3" Exmor R CMOS | | Zoom Ratio | 12x optical | | Video Output | 2 x HDMI | | Pixels | 8.93 MP | | Field of View | Horizontal:
Wide End: Approximately 70.7" (178 cm)
Telephoto End: 6.4° | | Focal Length Range | 3.9-46.8mm | | Aperture Range | f/1.8-f/2.0 | | Electronic Shutter | 1/1 sec to 1/10,000 sec | | Iris Control | Auto
Manual | | Focus Modes | Auto (sensitivity: normal, low), One-Push AF, Manual, Zoom Trigger AF | | Digital Noise Reduction | Yes | | White Balance Modes | Auto, Indoor, Outdoor, Sodium Vapor Lamp, One-Push, Manual | | AGC (Automatic Gain Control) | Auto/Manual: 0-33 dB
Maximum Gain Limit: 9-33 dB | | Flip / Mirror | Yes | | | | Remote Control Interfaces | 1 x RS-422: up to 3281' (1000 m) range
1 x DVIP (RJ45): up to 328' (100 m) range | | Power | 1 x 12 VDC input
1 x power on/off switch | | Tally Indicators | Red, green | | Dimensions (WxDxH) | 2.75 x 7 x 3" (6.9 x 17.8 x 7.6 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 10.3 x 8.1 x 5.4" |
