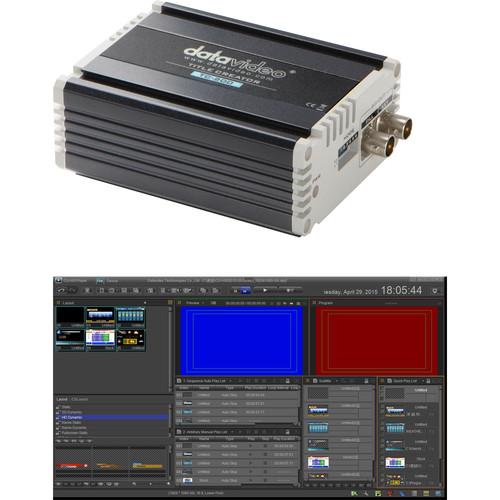

Product description The CG-500TC Kit from Datavideo includes the CG-500 HD/SD graphics & character generator software and the TC-200 HD / SD character generator kit.

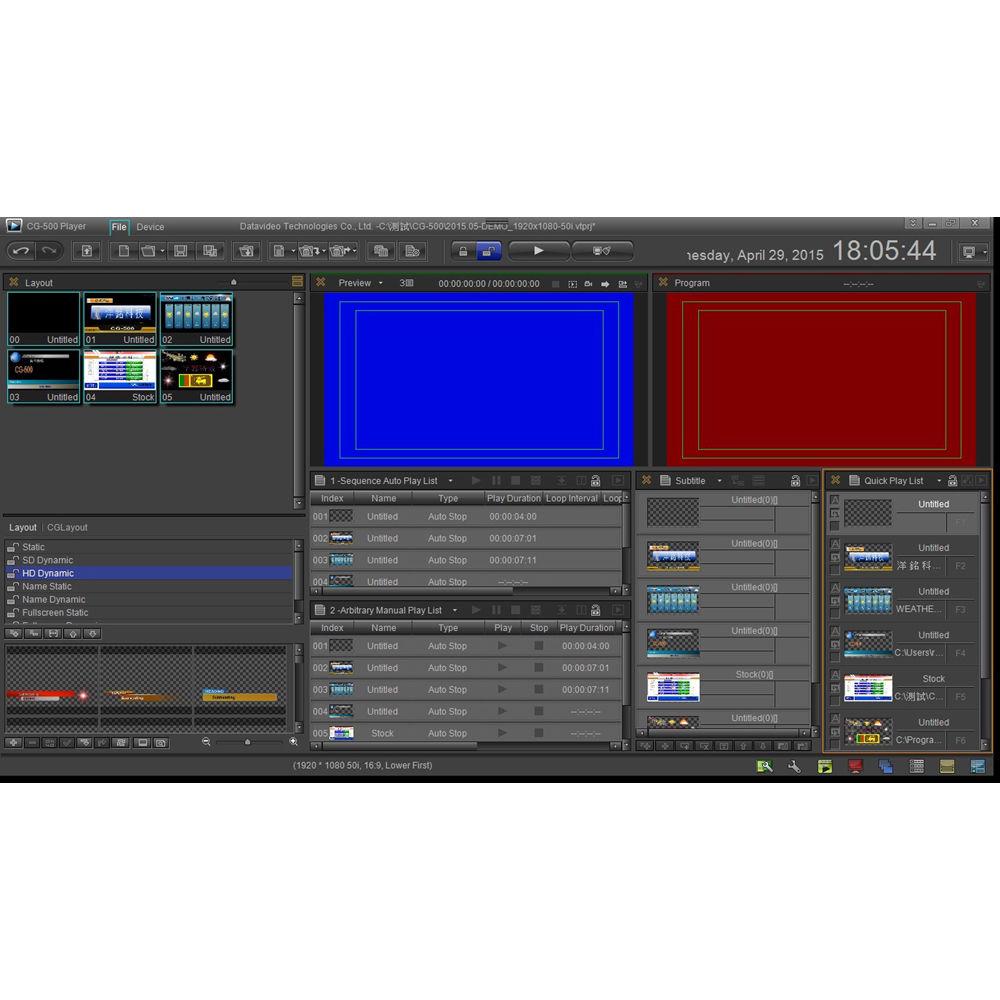

The CG-500 character generator software is a Windows based graphics, titling, and character generator software for live programming and post production. It features a multi-layer and real-time workflow and supports flexible play-out of multiple playlists, even while titles are being created. It's ideal for SD or HD news, reports, weather forecasts, and entertainment programming.

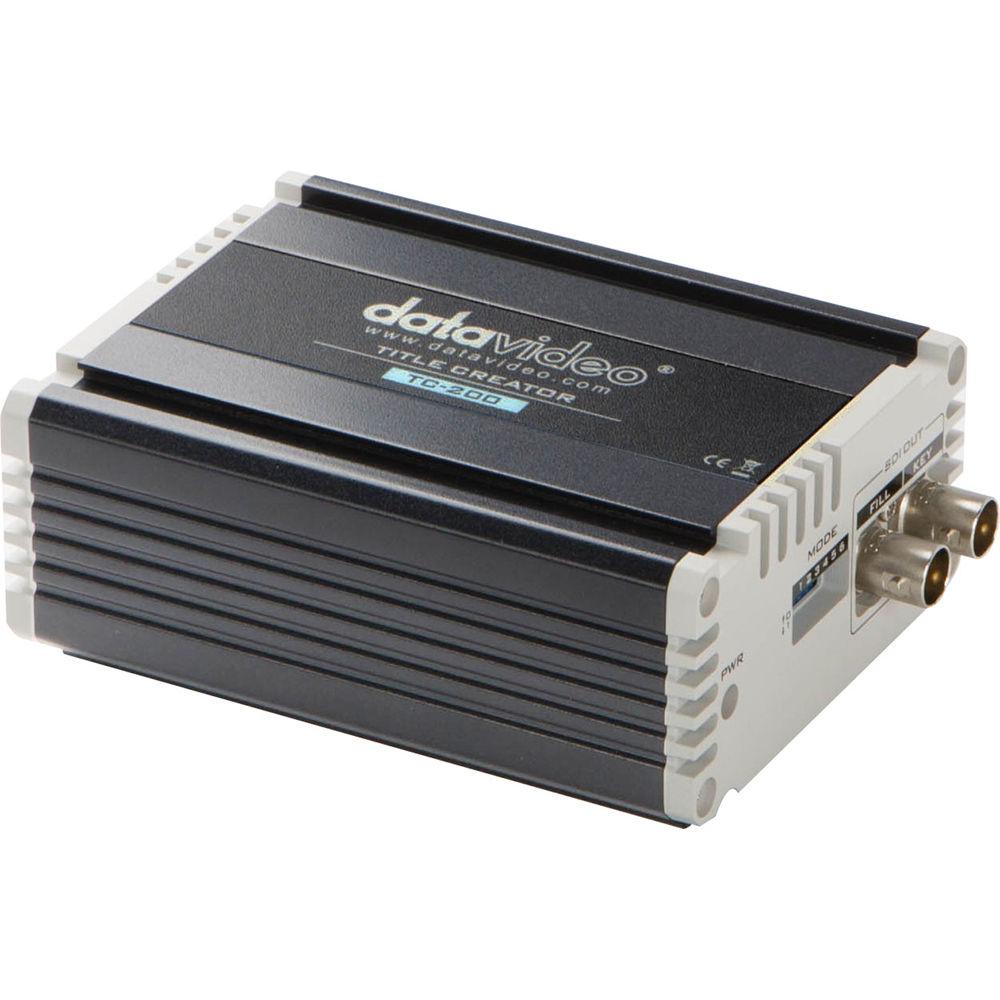

The TC-200 HD/SD character generator kit combines the TC-200 overlay box with the CG-200 CG software into an on-screen graphics and titling solution that requires minimal PC processing power. Using a standard laptop, you can create and deliver striking on-screen graphics and titles in real-time, suitable for mobile broadcasting and live video presentations. - CG-500 HD/SD Character Generator Software The Datavideo CG-500 HD/SD Character Generator Software is a Windows based graphics, titling, and character generator software for live programming and post production. It features a multi-layer and real-time workflow and supports flexible play-out of multiple playlists, even while titles are being created. It's ideal for SD or HD news, reports, weather forecasts, and entertainment programming.
- High-Quality Render & GPU Effects
- 3D PageCurl, Swipe, Explode, and Linear Light can be rendered in real-time
- Effects Keyframing
- All effects are keyframe-able
- Group & Text Playing
- Group and text playing by character, line, and text, with GPU dynamic texture
- Premade Templates
- A collection of premade templates includes Layout, CGlayout, Animation, Effects, and more
- Modify on the Fly
- Create and modify without interrupting the current playout
- Flexible Playlist Control
- 3 playlists, 1 subtitle, and 1 quick play list each with sequence play, arbitrary play, schedule time play, or auto play
- Real-Time Data
- Real-time data for text crawler objects, stock crawler objects, and universal flip objects; these objects can be linked with different kinds of external data sources (like CSV file, text file, etc.) for real-time updating of graphics
- Title Editing/Playing Display
- External monitor displays title editing and playing through a single VGA link
- 3D Stereoscopic Creating and Playing
- Side-by-side, top and bottom, line interleave output; advanced hardware supports 3D stereoscopic dual output of left eye and right eye (full color, fill color, and alpha color)
UPC: 672255005934 - TC-200 & CG-200 HD/SD Character Generator Kit The Datavideo TC-200 & CG-200 HD/SD Character Generator Kit combines the TC-200 Overlay Box with the CG-200 CG software into an on-screen graphics and titling solution that requires minimal PC processing power. Using a standard laptop, you can create and deliver striking on-screen graphics and titles in real-time, ideal for mobile broadcasting and live video presentations. All your laptop requires, beyond common standard specs, is an HDMI input.
The TC-200 offers an SDI input supporting Overlay mode and two SDI outputs supporting DSK (down-stream keyer) Fill and Key signals, allowing you to forego the use of an SDI adapter installed into your computer, and in turn allowing you to use a laptop on-the-go. This kit supports vision mixers with and without a DSK. In cases without a DSK, the TC-200 Overlay Box's Title Overlay mode substitutes for the lack of it.
The TC-200 works on 7-15V of operating voltage. It supports 7.2V and 14.4V DV batteries using an optional Datavideo MB-4 Battery Adapter (required). - Key Features
-
- Live Title Generator
- No additional PCI card required
- Supports SDI overlay function or DSK function via HDMI
- Support HD/SD SDI input and output in Overlay mode
- Supports 1080i60/59.94/50, 720p60/59.94/50, 576i50, and 480i59.94
- Title editing on laptop
- Compatible with Windows 7/8 and supports all Windows fonts
- Multi-language support
- Supports animations including JPG, TAG, GIF, BMP, PNG
- Supports scrolling
- Title editing patterns include Slide and Reveal
- Easy logo setups
- User definable clock display
- TC-200 Overlay Box features a 7-15V working voltage and can be used with 7.2V and 14.4V batteries (an optional Datavideo MB-4 battery adapter is required)
- DSK Mode
- The TC-200 and CG-200 can be used with a vision mixer equipped with a DSK (down-stream keyer). In such a setup, they can be set up as the key source or fill source. Any vision mixer with a DSK is supported, such as the Datavideo SE-2800 and SE-3000.
- Overlay Mode
- When no DSK is being used, the Title Overlay mode substitutes for the lack of it. Using the TC-200 Overlay Box, the HDMI output from a laptop is embedded with the SDI output from a camcorder, VTR, or vision mixer.
- Text & Animation Tool
- This tool allows you to edit color, size, transparency, board, location, and alignment.
- Scrolling Function
- Puts all the contents you need in text frame. Scrolling speeds can be preset.
- UNICODE
- The CG-200 software adapts UNICODE and supports all fonts in Windows.
- Overlay Function
- The TC-200 combines CG from the laptop's HDMI port with the SDI video signal and overlays graphics in real-time.
- Text File Loading
- The CG-200 software is capable of directly importing text files.
UPC: 672255004357 In the Box Bundle Items CG-500 HD/SD Character Generator Software xxybqvcyfbwatd TC-200 & CG-200 HD/SD Character Generator Kit - Installation Disc for CG-200
- 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo CG-500TC Kit with CG-500 HD SD Graphics & Character Generator and TC-200 HD SD Character Generator Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CG-500 HD/SD Character Generator Software
Minimum System Requirements | For HD: Intel i5 Quad Core 2.8 GHz Able to support Pixel/Vertex Shader Model 3.0 graphics card or above 512 MB graphics memory and 128-bit or above NVIDIA card with 192 or more stream processors ATI card with 720 stream processors or more 2 GB system memory / 500 GB system hard disk space 1400 x 900 screen resolution monitor or higher Windows 7 64-bit Professional
For SD: Intel Core Duo 2.4 GHz Able to support Pixel/Vertex Shader Model 3.0 graphics card or above 256 MB graphics memory and 128-bit or above NVIDIA with 96 stream processors or above ATI with 480 stream processors or above 1 GB system memory / 500 GB system hard disk space 1280 x 800 screen resolution monitor or higher Windows XP Professional SP2 | Recommended System Configuration | For HD: Intel i7 2600 3.4 GHz NVIDIA card with 336 or more stream processors ATI card with 1120 or more stream processors 1000 MB graphics memory and 256-bit or above 4 GB system memory / 1 TB system hard disk space 1680 x 1050 screen resolution monitor or higher Windows 7 64-bit Professional or Ultimate
For SD: Intel i3 3.0 GHz or i5 2.8 GHz NVIDIA card with 192 or more stream processors ATI card with 720 or more stream processors 512 MB graphics memory and 128-bit or above 2 GB system memory / 1 TB system hard disk space 1440 x 900 screen resolution monitor or higher Windows 7 32-bit or 64-bit Professional or Ultimate | Compatible PC Hardware Cards | Decklink SD: SD Internal Key Decklink Studio: SD Internal Key, SD External Key Decklink 4K Extreme Decklink HD Extreme 3D: SD Internal Key, SD External Key, HD Internal Key, HD External Key | | Box Dimensions (LxWxH) | 7.5 x 5.4 x 0.6" | - TC-200 & CG-200 HD/SD Character Generator Kit
Text Sources | Frame text, clock, text file, CSV file | File Format | JPG, PNG, BMP, TGA, GIF, GIF | Animation Formats | GIF | Input / Output | 1x HDMI input 1x HD-SDI input 2x HD-SDI outputs 1x LAN port | Input Formats | 1920 x 1080i / 60 Hz 1920 x 1080i / 59.94 Hz 1920 x 1080i / 50 Hz 1280 x 720p / 60 Hz 1280 x 720p / 59.94 Hz 1280 x 720p / 50 Hz 720 x 576i / 50 Hz 720 x 480i / 59.94 Hz | Input Modes | CG Overlay: HDMI input is CG; SDI input is Live Video
Genlock Mode: HDMI input is CG; SDI input is Reference Signal
Reference with Internal Signal:
HDMI input is CG; SDI input isn't in use | Conversion Modes | HDMI signal is split into titles and alpha channel HDMI signal is split into titles and alpha channel with Genlock HDMI titles overlay over the input SDI signal | Control | Dip switch; PC | Voltage Range | 7-15 VDC (most of battery is 7.2V, 12V & 14.4V so will need to cover it) | Firmware Upgrade | Ethernet | System Requirements | Windows 7, 8 operating system; 3 GHz processor; 2 GB RAM | | Box Dimensions (LxWxH) | 8.25 x 6.0 x 3.05" |
