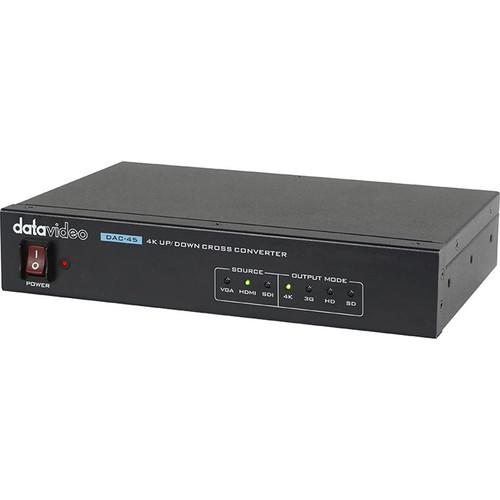

Product description The Datavideo DAC-45 4K Up/Down Cross Converter is the successor to the popular DAC-70. It has all the same features plus 4K HDMI support and genlock. A built-in super resolution engine allows you to up-convert resolutions as low as 720 x 480 all the way up to Ultra HD 4K.
The DAC-45 lets you convert video signals from VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output. It also allows instant and automatic switching between 4K, HD, and SD formats when the video input changes.
The DAC-45 Center Utility software is also provided to you as a free download from Datavideo's website. This application lets you designate various video and audio settings as well as obtain device information. - Key Features
-
- Successor to the DAC-70 with 4K HDMI support and genlock
- Convert from as low as 720 x 480 all the way up to Ultra HD 4K
- Convert VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output
- HDMI 2.0 input/output with 4:2:2 processing
- Up/down/cross convert between 4K, 3G, HD, and SD formats
- 3G-SDI Level A/B support
- Reference input (Black Burst and Tri-Level Sync)
- Built-in super resolution engine for 4K up-conversion
- Built-in resolution and frame rate up/down conversion engine
- Built-in de-interlacer and interlacer (i <-> p conversion )
- Miscellaneous
-
- Settings control DIP switch
- Audio lock after conversion
- Cross reference
- Plug-and-play operation

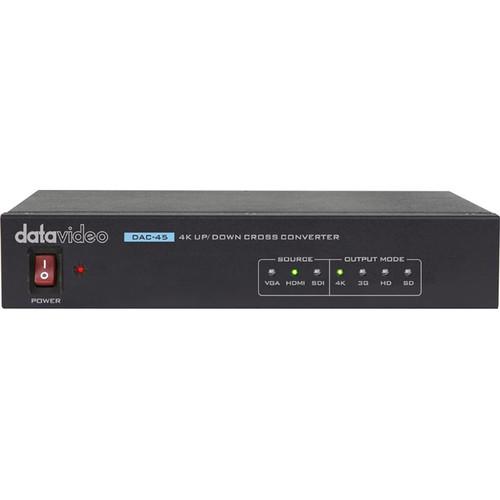

- LED Indicators
-
- Power LED
- Three source LEDs (SDI, HDMI, VGA)
- Four output format LEDs (4K, 3G, HD, SD)
UPC: 672255007259 In the Box Datavideo DAC-45 4K Up/Down Cross Converter 12 VDC Power Adapter Limited 1-Year Warranty Limited 3-Year Warranty with Product Registration within 30 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo DAC-45 4K Up Down Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

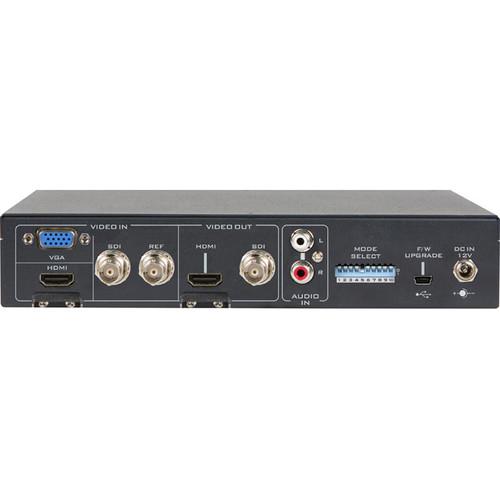

Technical parametersDatavideo DAC-45 Specs | Inputs | 1 x 3G/HD/SD-SDI
1 x HDMI
1 x VGA
2 x RCA (unbalanced audio L/R)
1 x reference input | | Outputs | 1 x 3G/HD/SD-SDI
1 x HDMI | | Firmware Updates | 1 x mini-USB | | Power Input | DC jack | | Supported Video Input Formats | SDI (YUV)
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
625i
525i
HDMI (YUV / RGB)
3840 x 2160p60/59.94/50
3840 x 2160p30/29.97/25/24/23.98
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480p, 576p, 480i, 576i
1600 x 1200 at 60 Hz
1400 x 1050 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz
VGA (RGB)
1920 x 1080 at 60 Hz
1600 x 1200 at 60 Hz
1400 x 1050 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz | | Supported Video Output Formats | SDI (YUV)
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
625i
525i
HDMI (YUV)
3840 x 2160p60/59.94/50
3840 x 2160p30/29.97/25/24/23.98
1080p60/59.94/50
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
576p
480p
576i
480i | | Video Processing | SDI: YUV 4:2:2
HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, YUV 4:2:0 (4K only) | | Supported Audio Input Formats | Unbalanced Audio L/R: Stereo audio
SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio
HDMI Embedded Audio: Up to 8-ch, 44.1/48/96 kHz, PCM audio | | Supported Audio Output Formats | SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio
HDMI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio | | Frame Delay | I: 2-3 fields
P: 0-1 frames | | Power Supply | 12 VDC, 1 A (9.4 W) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 80% | | Certification | CE, FCC | | Dimensions | 8.6 x 5.5 x 1.6" (22 x 14 x 4 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 11.5 x 9.8 x 4.1" |
