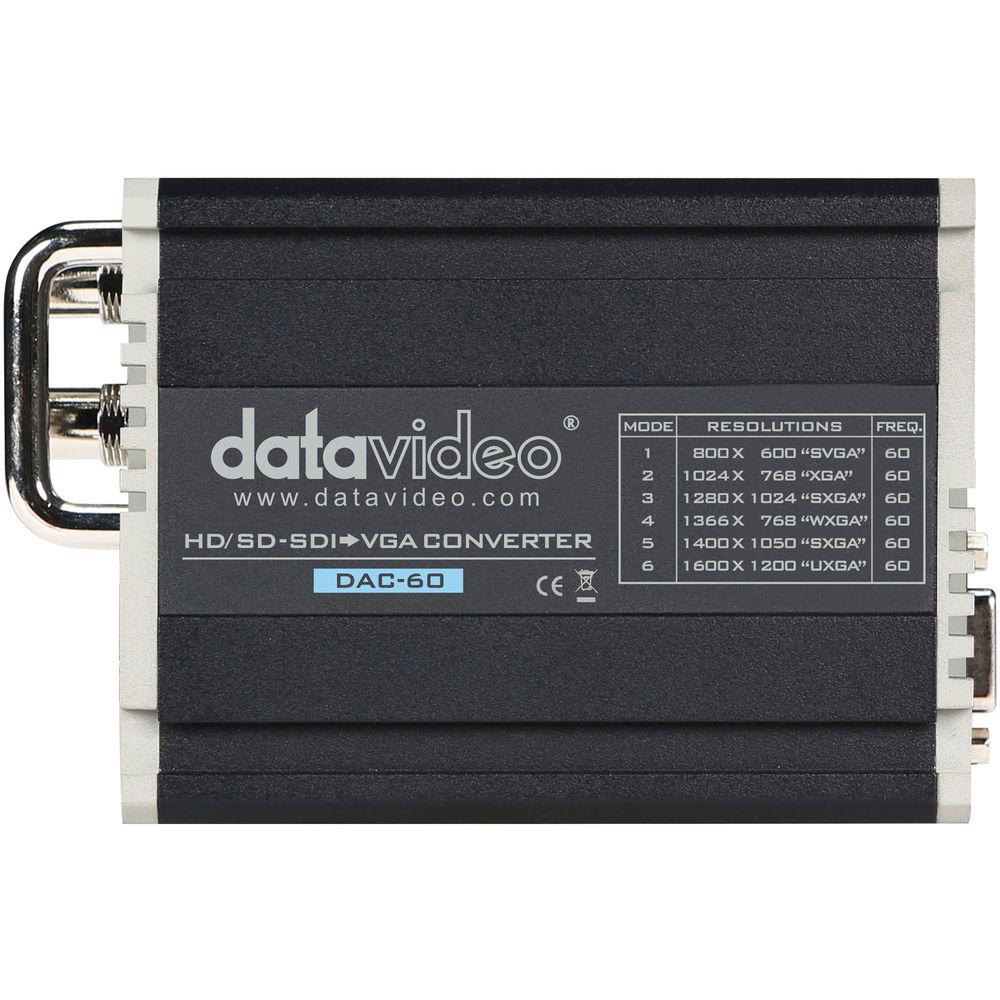

Product description The Datavideo DAC-60 SD/HD/3G-SDI to VGA Scaler and Converter converts SD/HD/3G-SDI video signals into VGA signals for display on computer peripherals such as projectors and monitors. The DAC-60 features a loop-through input that passes the SDI input signal downstream without changing it. This allows you to feed the same video signals to both VGA and SDI based equipment. The unit auto detects the input format and scales it to the user selected VGA output format, which is indicated by the six LEDs.
With the included software you can set the built-in processing amp (proc amp) to adjust Contrast, Hue and Saturation of the VGA signal. The SDI loop-through signal is unaffected by the proc amp settings. The unit is designed to be portable as it draws only 500 mA at 12 volts and weighs less than a pound. - Format
- The DAC-60 is compatible with NTSC/PAL SD signals, as well as HD-SDI and 3G SDI signals. The unit will automatically detect scale and convert the input video signals into VGA compatible signals for display on VGA-based equipment.
- Image Adjustment
- The DAC-60 has a built in proc amp for image adjustment which are controllable via the included Windows software. Once image adjustments to the VGA output are complete, you can disconnect the DAC-60 from the computer and the unit will retain the image adjustment settings. Only the VGA output is affected and the SDI loop-through signal is unaffected by the proc amp.

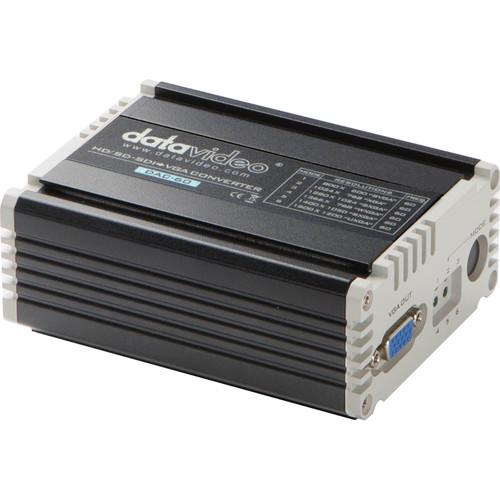

- Output
- The mode selection button allows you to manually select from 8 different VGA resolution presets that the DAC-60 can output. Six LEDs provide immediate and positive indication of which VGA output format you have selected. The loop-through SDI signal remains unaffected by the VGA output settings and is available to feed a switcher or other SDI based equipment.
UPC: 672255004005 In the Box Datavideo DAC-60 SD/HD/3G-SDI to VGA Scaler and Converter Power Supply and Cord User Adjust Tool Software CD Limited 1-Year Warranty, Extendable to 2-Years with Product Registration within 30 Days of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo DAC-60 SD HD 3G-SDI to VGA Scaler and Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo DAC-60 Specs | Inputs/Outputs | Input

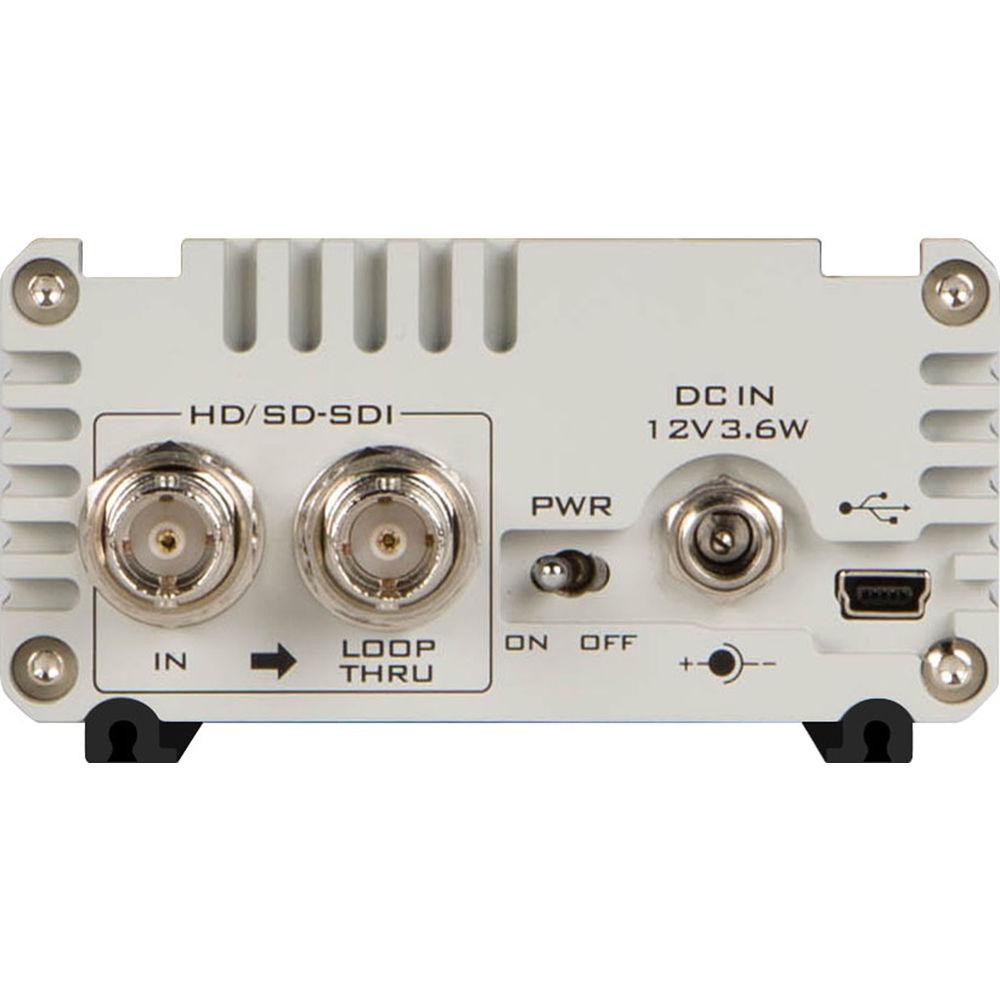

1 x BNC 75Ω
Output
1 x VGA
Loop Through Output
1 x BNC 75Ω | | Formats | Input
SD/HD/3G-SDI
Output
VGA
Loop Through
SD/HD/3G-SDI | | Input Resolutions | SD
NTSC: 720 x 480i
PAL: 720 x 576i
HD
1280 x 720 50p, 60p, 59.94p
1920 x 1080 50i, 60i, 59.94i
1920 x 1080 24p, 25p, 30p
3G
1920 x 1080 50p, 60p, 59.94p | | Output Resolution | VGA
800 x 600 60Hz
1024 x 768 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz
1400 x 1050 60Hz
1600 x 1200 60Hz | | Cable Length | Loop-Through Output
3G: 140m of RG6/ 100m of RG59
HD: 200m of RG6/ 140m of RG59
SD: 400m of RG6/ 280m of RG59 | | Control Interface | 1 x mini USB port

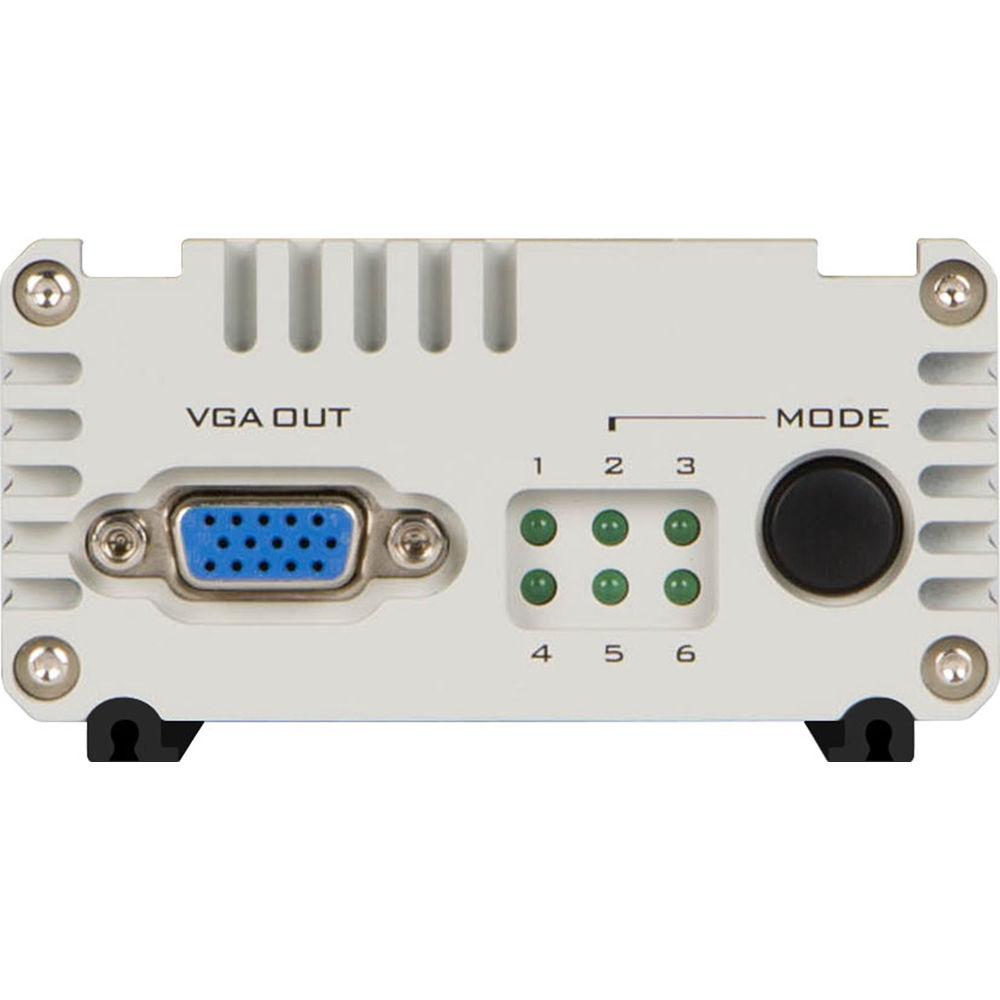

1 x Push button: VGA output format select
6 x LED: VGA output format indicator
1 x On/Off switch | | Construction | Painted Aluminum | | Software | OS
Requires Windows XP or Windows 7 | | Power Requirements | DAC-60
12VDC, 500mA
Power Supply
120 - 240VAC, 50/60 Hz | | Dimensions (L x W x H) | 5.0 x 3.3 x 1.6" (127.1 x 84.8 x 41.4 mm) | | Weight | 13 oz (0.37 kg) | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 8.25 x 6.05 x 3.0" |
