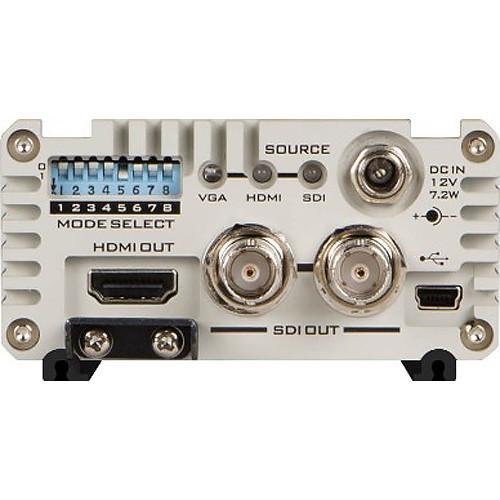

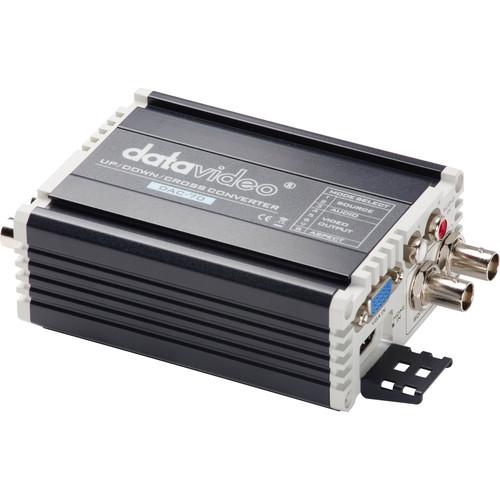

User Manual for Datavideo DAC-70 SD HD 3G-SDI Up Down Cross Converter Click to enlarge the picture
Contents of the user manual for the Datavideo DAC-70 SD HD 3G-SDI Up
- Product category: Signal Converters Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Signal Converters
 |
User manual for the Datavideo DAC-70 SD HD 3G-SDI Up contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description The DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter from Datavideo converts between SD, HD, and 3G formats. It supports 10-bit video processing and accepts VGA, HDMI, and SD/HD-3G-SDI video input signals and automatically converts them to the selected output format. The DAC-70 supports resolutions up to 1080p60 and up to 8 channels of embedded SDI or HDMI audio. An analog L/R audio input is also provided. Thanks to a built-in mini-USB port, the converter is firmware upgradeable for support of future video formats. A 12V / 1A power supply and cord comes included. -
- Low SDI jitter with long cable lengths
- Compatible with optional RMK-2, for holding multiple converters and distribution amplifiers in a 2RU space
- Compatible with the MB-4 battery adapter
- Compatible with MB-5 strap adapter
UPC: 672255004326 In the Box Datavideo DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter 12V / 1A Power Supply and Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo DAC-70 SD HD 3G-SDI Up Down Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo DAC-70 Specs | Supported Input Formats | 3G-SDI:
1080p 50/59.94/60
HD-SDI:
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
SD-SDI:
525i
625i
HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
576p
480p
800×600@60Hz
1024×768@60Hz
1280×1024@60Hz
1366×768@60Hz
1400×1050@60Hz
1600×1200@60Hz
VGA:
800×600@60Hz
1024×768@60Hz
1280×1024@60Hz
1366×768@60Hz
1400×1050@60Hz
1600×1200@60Hz | | Supported Output Formats | SDI/HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i (50/59.94/60)
720p (50/59.94/60)
525i
625i | | Color Spaces Supported | YUV / RGB | | Audio Support | SDI input: embedded audio up to 8-channel, 48 KHz, PCM audio
HDMI input: embedded audio up ot 8-channel, 44.1/48/96 KHz, PCM audio
SDI/HDI output: embedded audio up to 8-channel, 48 KHz, PCM audio | | Inputs | 1 x VGA
1 x HDMI
1 x SD/HD/3G-SDI
1 x Analog audio left/right pair | | Outputs | 2 x SD/HD/3G-SDI
1 x HDMI
1 x SD/HD/3G-SDI loop-through | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.3 x 6.0 x 2.2" |
