User Manual for Datavideo DAC-80 Audio Isolation Transformer Click to enlarge the picture
Contents of the user manual for the Datavideo DAC-80 Audio Isolation Transformer
- Product category: Noise Eliminators & Isolators Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Noise Eliminators & Isolators
|
User manual for the Datavideo DAC-80 Audio Isolation Transformer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

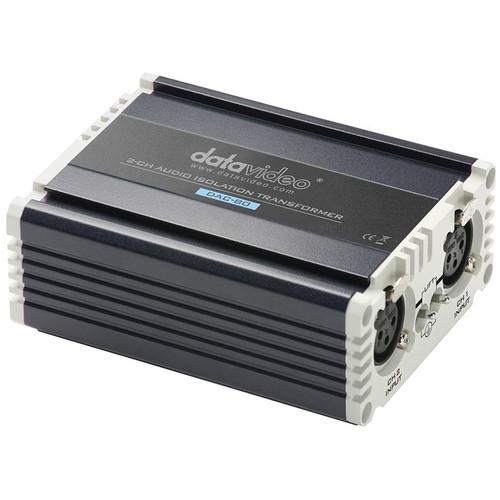

Product description The Datavideo DAC-80 Audio Isolation Transformer is designed to remove hum and buzz created by ground loops. Normal voltage differences in the system grounding points between different pieces of equipment cause small AC power currents to flow in the shield of audio cables. Capacitance between a power transformer's primary and secondary windings introduce signals to the circuit ground, which will also create small current flows in the cable shield. Either of these problems will create hum in audio signals. The DAC-80 breaks the inter-equipment ground path and greatly increases the rejection in the input circuits while remaining transparent to the audio signal. - Easy to use - simply connect the input and output XLR cables to use the DAC-80
- No power needed - since the DAC-80 is a passive device, no power is required for it to function
- DAC-80 removes audio noise caused by ground loops
- The DAC-80 is compatible with the RMK-2 holder, for holding multiple converters and distribution amplifiers in a 2RU space
- Low signal loss / distortion
UPC: 672255006603 In the Box Datavideo DAC-80 Audio Isolation Transformer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo DAC-80 Audio Isolation Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo DAC-80 Specs | Impedance | 600 Ohm ±10% (input & output) | | Bandwidth | 20 Hz - 20 kHz ±0.3 dB | | THD | 1 kHz: <0.015% @ 4 dBu
20 Hz: 0.05% @ 4 dBu | | Insertion Loss | <0.5 dB | | Turns Ratio | 1:1 | | Inputs | 2 x XLR (ch1 and ch2) | | Outputs | 2 x XLR (ch1 and ch2) | | Dimensions | 3.3 x 1.8 x 4.4" (85.0 x 45.2 x 111.5 mm) | | Weight | 1.0 lb (453.6 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.5 x 6.0 x 2.9" |
