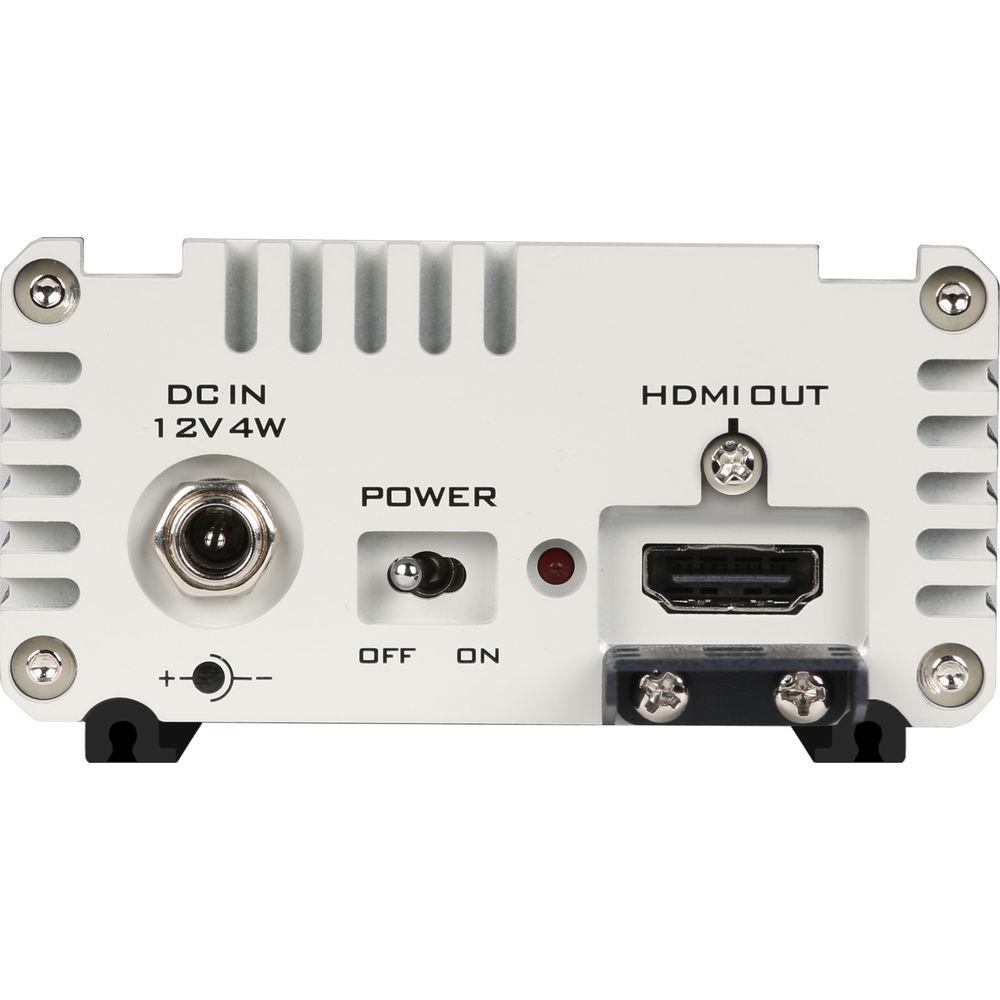

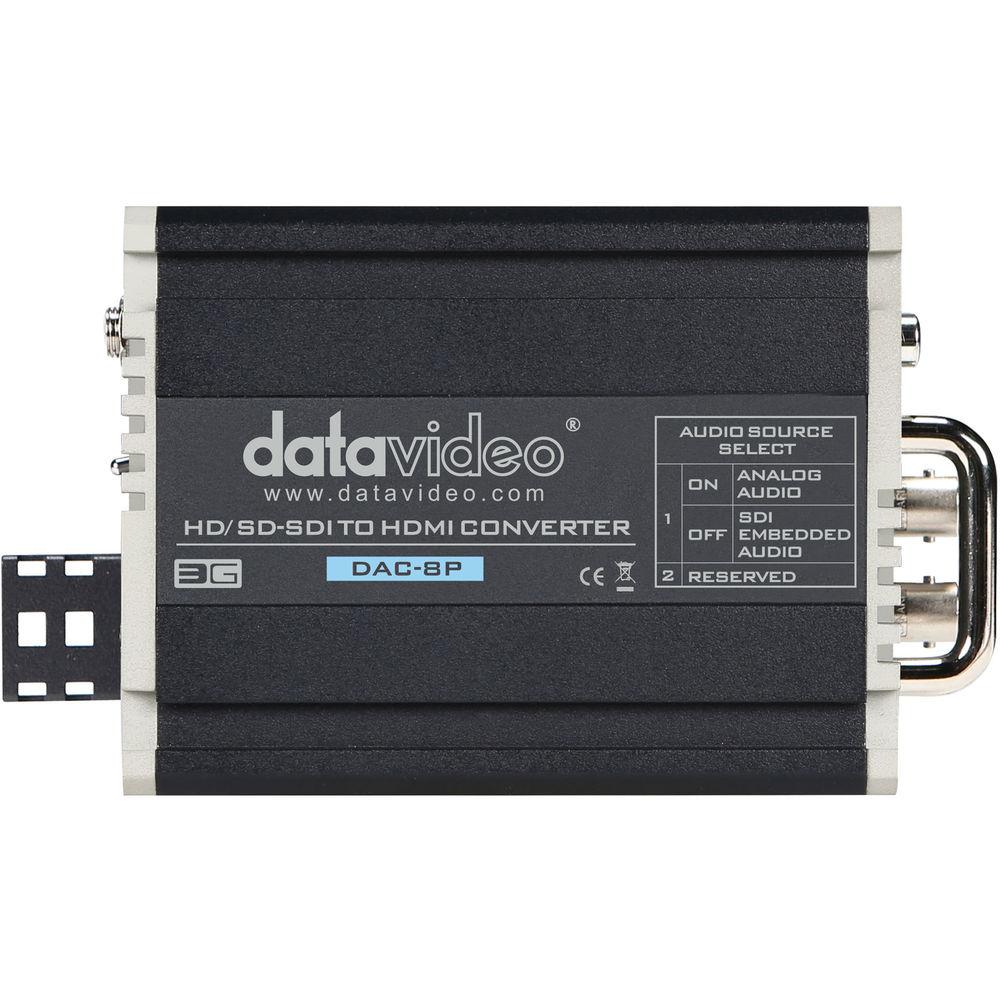

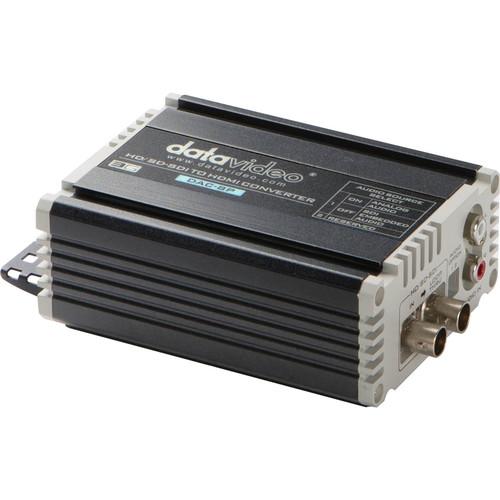

User Manual for Datavideo DAC-8P HD SD-SDI to HDMI 1080p 60 Converter Click to enlarge the picture
Contents of the user manual for the Datavideo DAC-8P HD SD-SDI to HDMI
- Product category: Signal Converters Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Signal Converters
 |
User manual for the Datavideo DAC-8P HD SD-SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description Datavideo's DAC-8P HD/SD-SDI to HDMI 1080p/60 Converter converts an SDI video signal along with embedded audio to HDMI, making possible for an SDI signal to be monitored on an HDMI display or via an HDMI projector. Linked to the SDI input is an SDI loop output for connecting to an SDI monitor at the same time as to an HDMI monitor. DAC-8P supports both NTSC and PAL, automatically detects whether the input is one or the other, and supports resolutions up to 1080p/60 NTSC or 1080p/50 PAL.

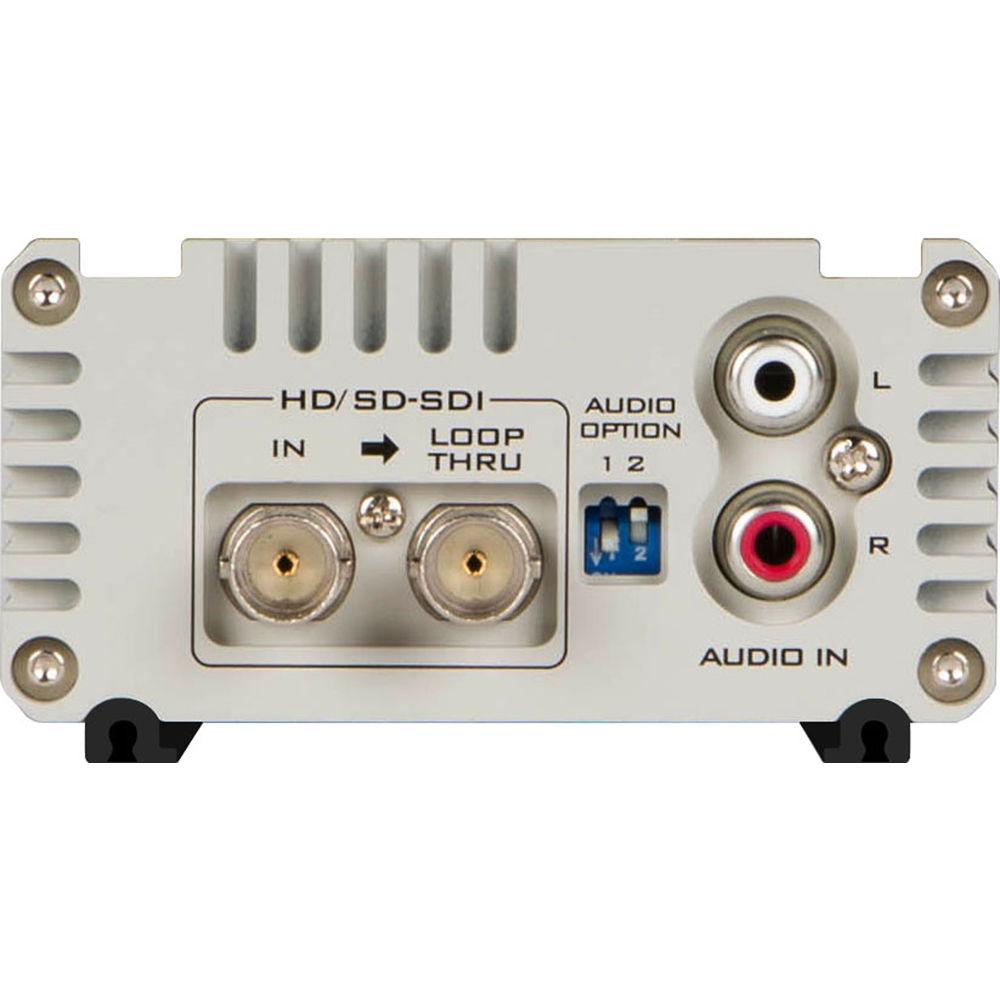

In addition to the SDI input, the converter features L/R RCA audio input. If your SDI input doesn't have audio embedded, you can connect a separate audio signal into the RCA jacks and the converter will embed the signal to the SDI signal on the HDMI output. -
- Converts video with embedded audio
- HDMI 1.4 output and HD/SD-SDI loop output
- Supports up to 1080p/60 NTSC or 1080p/50 PAL
- Embeds RCA audio input onto HDMI output if RCA signal is separately connected
UPC: 672255001998 In the Box Datavideo DAC-8P HD/SD-SDI to HDMI 1080p/60 Converter Power Supply Instruction Manual 2-Year Warranty with Online Product Registration within 30 Days of Purchase Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo DAC-8P HD SD-SDI to HDMI 1080p 60 Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo DAC-8P Specs | Input | 1x HD/SD-SDI
1x L/R unbalanced audio on 2x RCA jacks | | Output | 1x HDMI 1.4
1x HD/SD-SDI loop output | | Supported Resolutions | 1080p60 / 1080p59.94 / 1080p50
1080p30 / 1080p29.97 / 1080p25 / 1080p24 / 1080psf23.98
1080psf30 / 1080psf29.97 / 1080psf25 / 1080psf24 / 1080psf23.98
1080p30 / 1080p25 / 1080p24
1080i60 / 1080i59.94 / 1080i50
720p60 / 720p59.94 / 720p50
576i / 480i | | Power | 12 V 0.5A | | Dimensions | 4 x 3.25 x 1" (10.1 x 8.2 x 2.5 cm) | | Weight | .5 lb (.2 kg) | | | | Package Weight | 1.18 lb | | Box Dimensions (LxWxH) | 8.25 x 5.95 x 3.05" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
