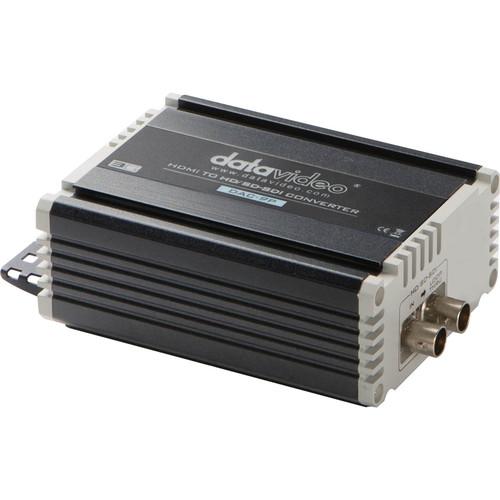

User Manual for Datavideo DAC-9P HDMI to HD SD-SDI 1080p 60 Converter Click to enlarge the picture
Contents of the user manual for the Datavideo DAC-9P HDMI to HD SD-SDI
- Product category: Signal Converters Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Signal Converters
 |
User manual for the Datavideo DAC-9P HDMI to HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

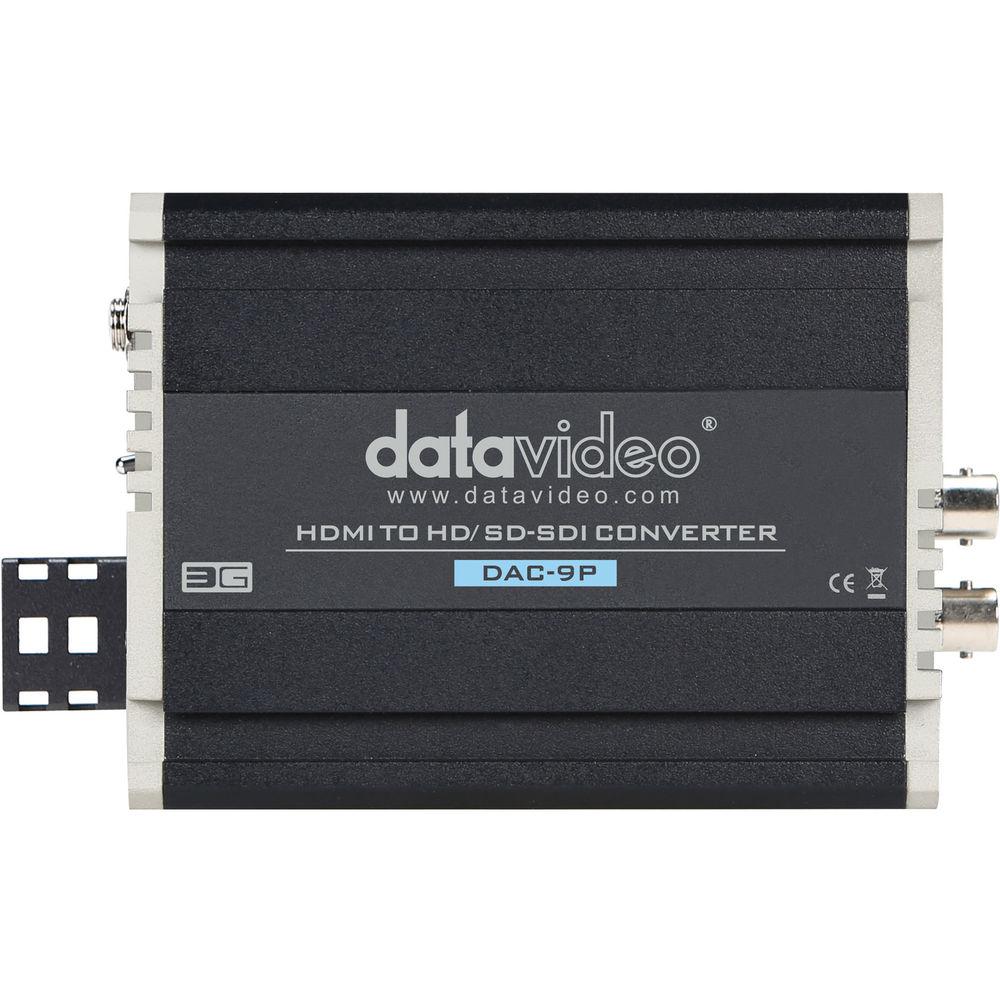

Product description Datavideo's DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter converts an HDMI video signal along with embedded audio for output on two HD/SD-SDI outputs, making possible for an HDMI camera signal to be monitored on professional SDI displays up to 300 ft away. The converter auto-senses the image quality of the HDMI input and outputs it according to this quality as either HD-SDI or SD-SDI. The converter accepts both NTSC and PAL, automatically detects whether the input is one or the other, and supports resolutions up to 1080p/60 NTSC or 1080p/50 PAL.
Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera. -
- Converts video with embedded audio
- Supports up to 1080p/60 NTSC or 1080p/50 PAL
- Auto-sensing HDMI 1.4 input and two HD/SD-SDI outputs
- Outputs as either HD-SDI or SD-SDI based on the image quality of the input
UPC: 672255004166 In the Box Datavideo DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter Power Supply and Cord Instruction Manual 2-Year Warranty with Online Product Registration within 30 Days of Purchase Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo DAC-9P HDMI to HD SD-SDI 1080p 60 Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

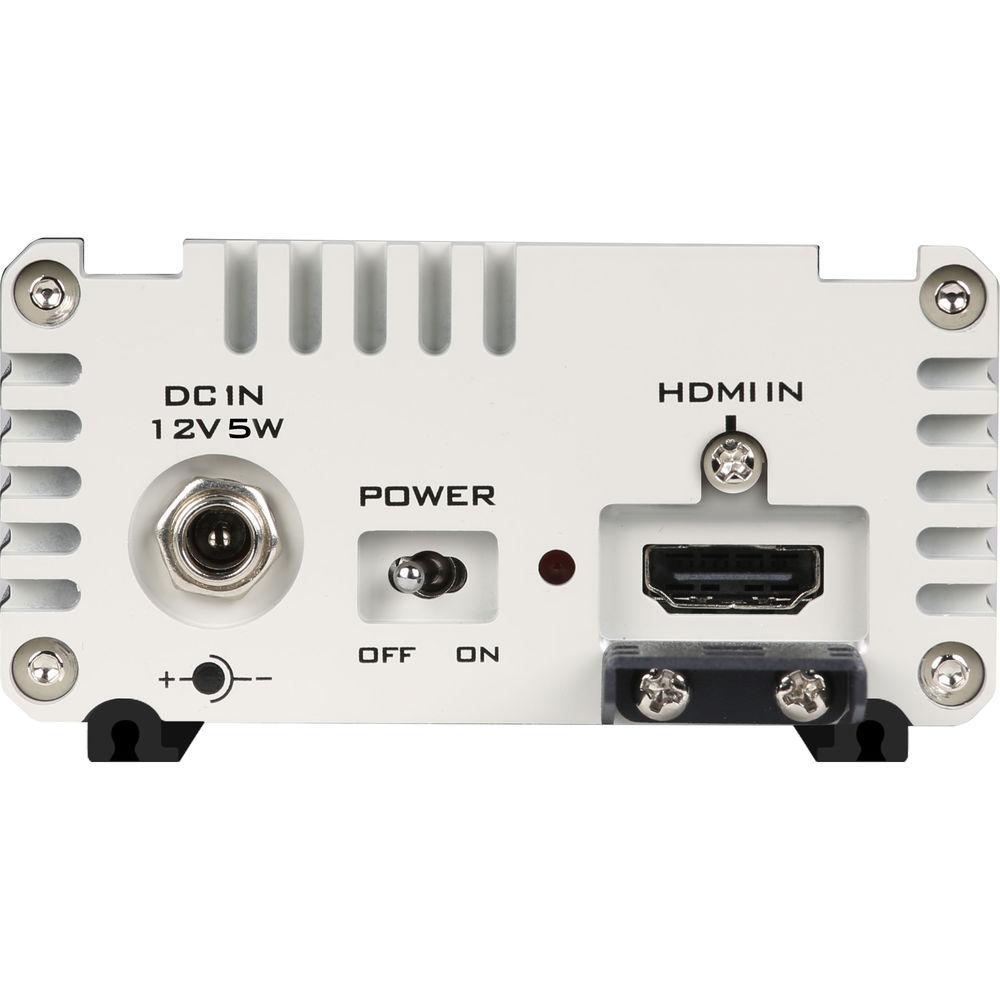

Technical parametersDatavideo DAC-9P Specs | Input | 1x HDMI 1.4

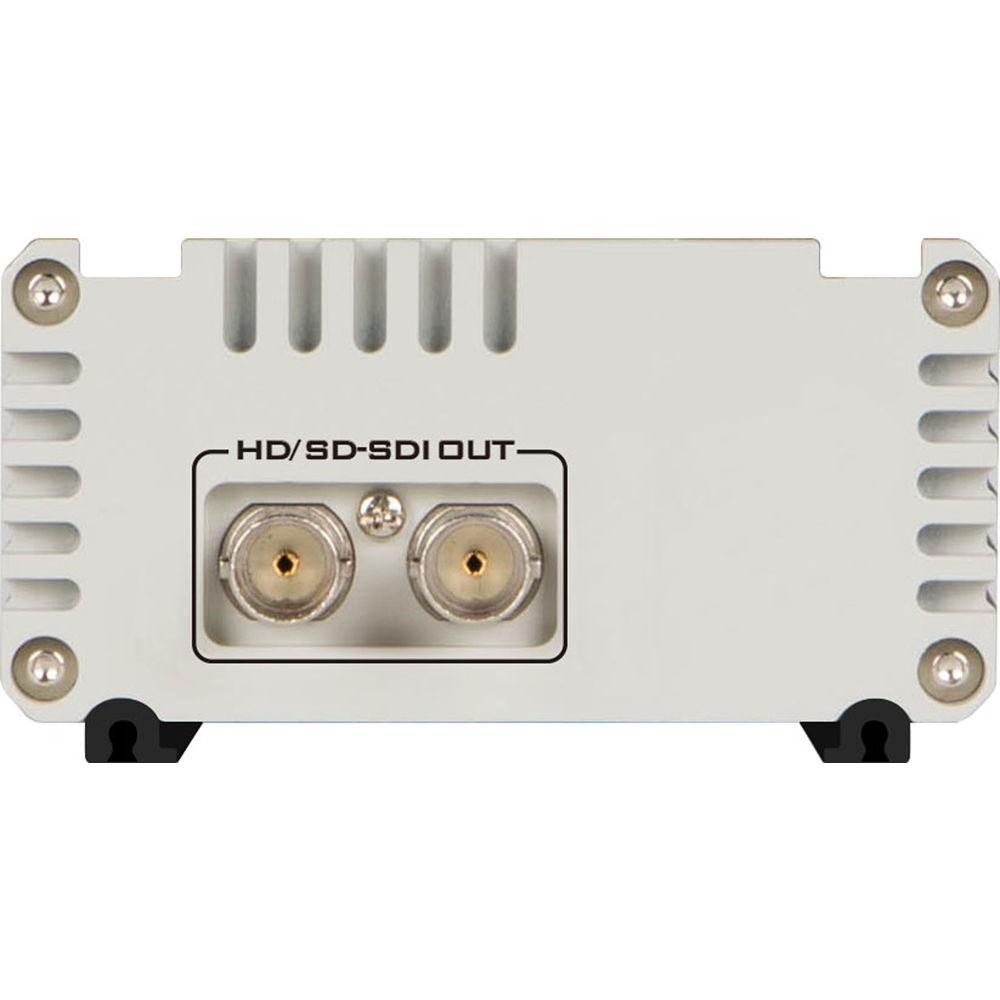

Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera. | | Output | 2x HD/SD-SDI | | Supported Resolutions | 1080p60 / 1080p59.94 / 1080p50
1080p30 / 1080p29.97 / 1080p25 / 1080p24 / 1080psf23.98
1080psf30 / 1080psf29.97 / 1080psf25 / 1080psf24 / 1080psf23.98
1080p30 / 1080p25 / 1080p24
1080i60 / 1080i59.94 / 1080i50
720p60 / 720p59.94 / 720p50
576i / 480i | | Power | 12 V 0.5A 5W
110/220 V | | Dimensions | 4 x 3.25 x 1" (10.1 x 8.2 x 2.5 cm) | | Weight | .5 lb (.2 kg) | | | | Package Weight | 1.18 lb | | Box Dimensions (LxWxH) | 8.25 x 5.95 x 3.05" |
